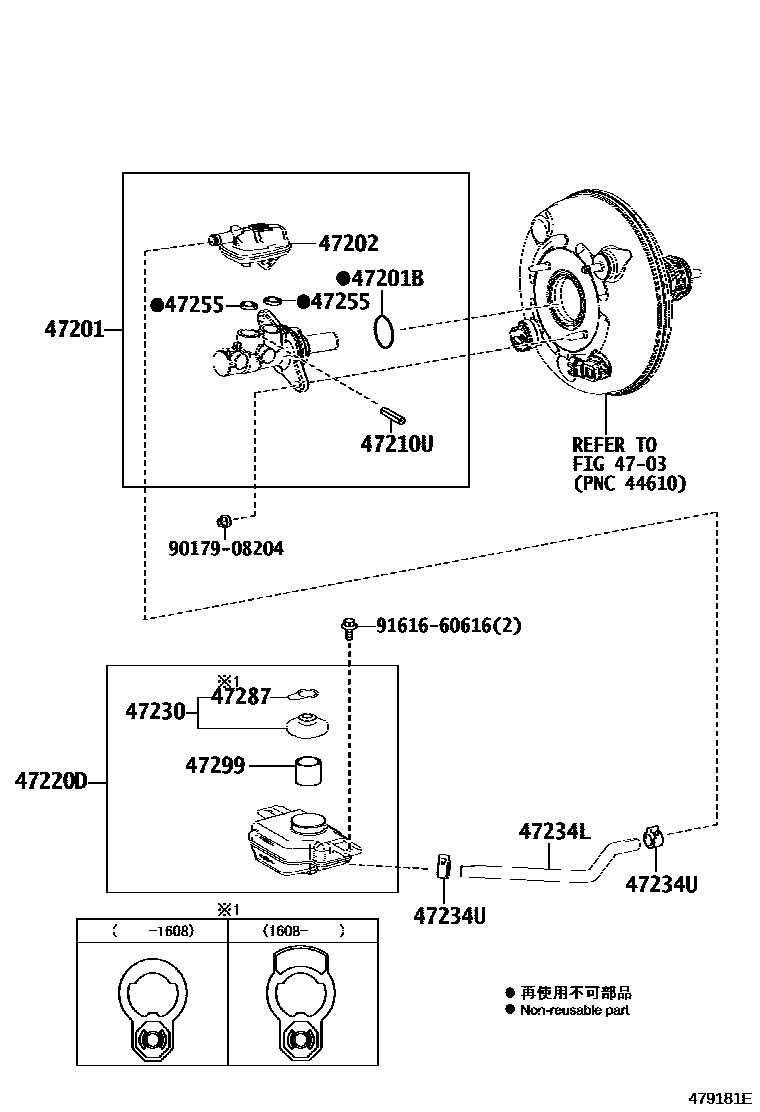

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28730iZRR80201401-201706

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRR80201401-201706

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28330iZRR80201401-201706

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iZRR80201401-201706

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-28340iZRR80201401-201706

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZRR80201401-201706

47234LHOSE, RESERVOIR, NO.1

main47234-28210iZRR80201401-201706

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96136-41801iZRR80201401-201706

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZRR80201401-201706

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iZRR80201608-201706

main47287-20010iZRR80201401-201608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZRR80201401-201706

9017908204

main90179-08204

9161660616

main91616-60616

14 parts on this diagram · 1 diagram in section
