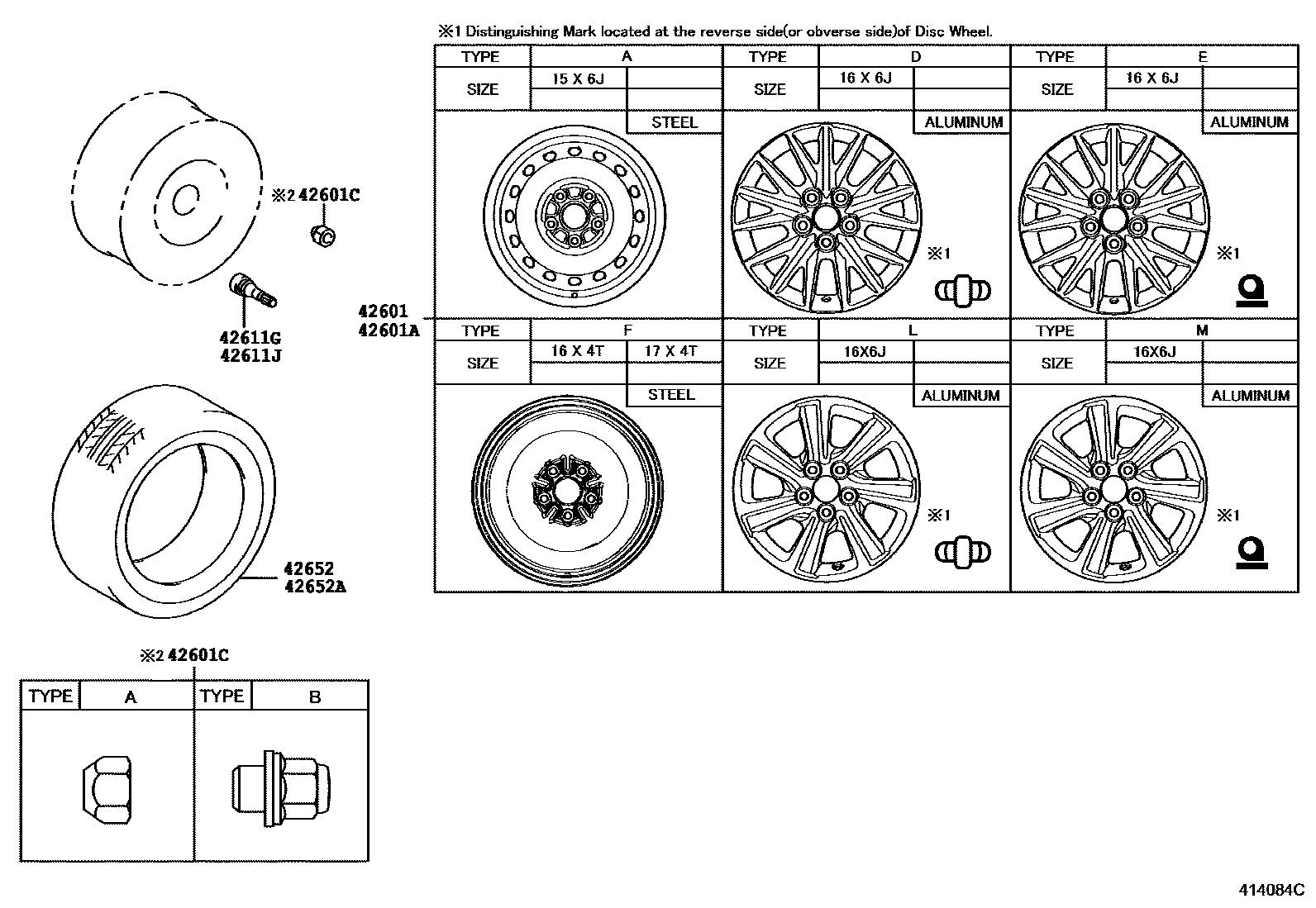

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X6J, #,TYPE A:REFER ILLUST.
16X6J, #,TYPE E:REFER ILLUST.
16X6J, #,TYPE L:REFER ILLUST.
16X6J, #,TYPE M:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE F:REFER ILLUST.
17X4T,TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
195/65R15,*D/L
195/65R15,*Y/H
205/60R16,*Y/H
205/60R16,*T/Y
42652ATIRE (FOR SPARE)
T135/80D16,*D/L
T135/80D16,*T/Y
T145/70D17,*Y/H
7 parts on this diagram · 3 diagrams in section
