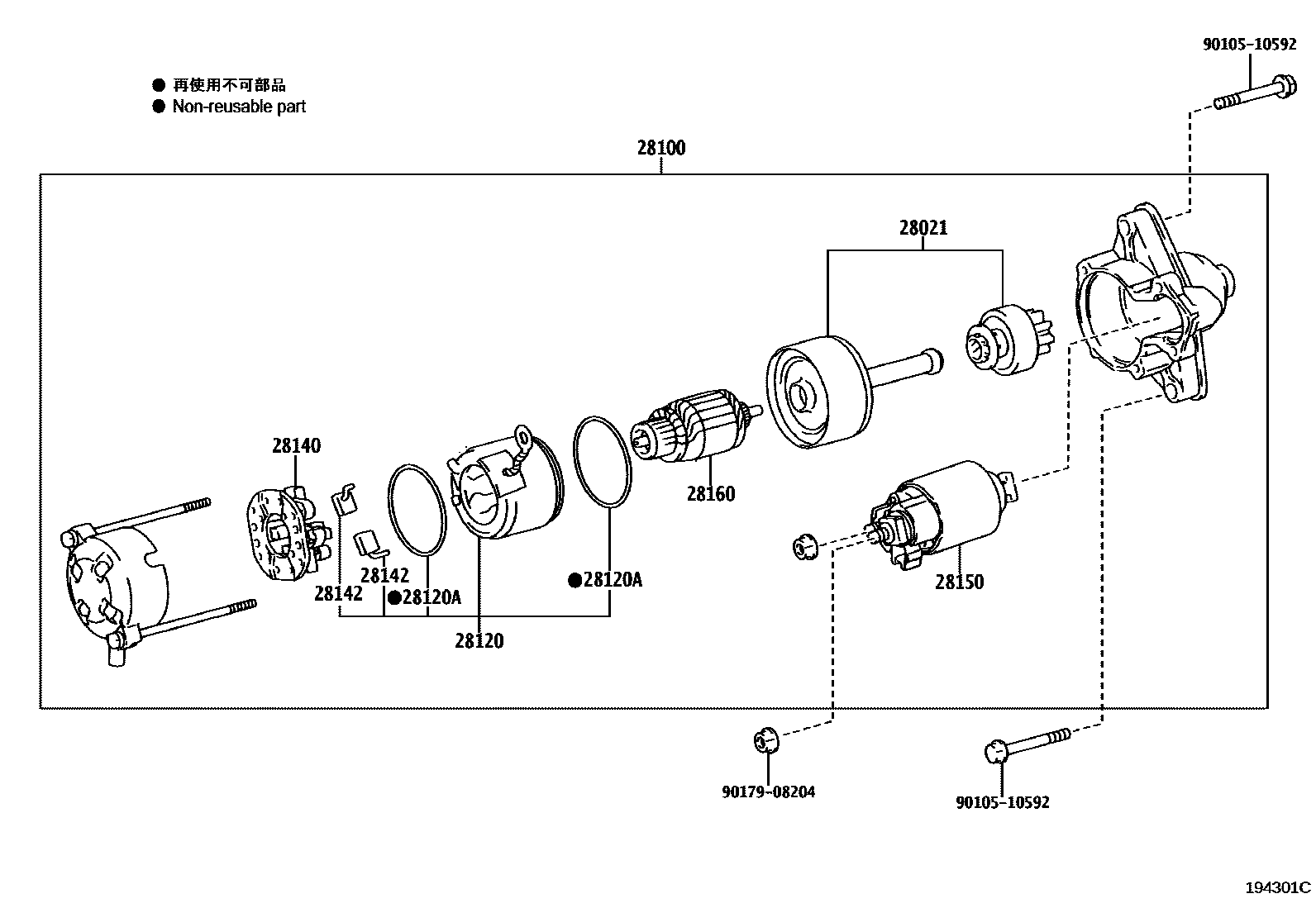

STARTER

0001 112V 1.0KW 0003 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21100i3ZRFAE..ZRR80201403-201706

main28021-70020i3ZRFAE..ZRR80201401-201403

28100STARTER ASSY

main28100-37031i3ZRFAE..ZRR80201401-201403

12V 1.0KW

sub28100-37032

main28100-37032i3ZRFAE..ZRR80..ZS201706

12V 1.0KW

main28100-37100i3ZRFAE..ZRR80201403-201407

12V 1.7KW

sub28100-37101

main28100-37101i3ZRFAE..ZRR80201408-201706

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-37100i3ZRFAE..ZRR80201403-201706

main28120-40130i3ZRFAE..ZRR80..ZS201401-201403

28120ARING, O(FOR STARTER YOKE)

main90099-14092i3ZRFAE..ZRR80..ZS201401-201403

28140HOLDER ASSY, STARTER BRUSH

main28140-21100i3ZRFAE..ZRR80201403-201706

main28140-70020i3ZRFAE..ZRR80201401-201403

28142BRUSH, STARTER

main28142-70020i3ZRFAE..ZRR80201401-201403

28150SWITCH ASSY, MAGNET STARTER

main28150-22100i3ZRFAE..ZRR80201401-201403

28160ARMATURE ASSY, STARTER

main28160-36110i3ZRFAE..ZRR80..NOAH201701-201706

main28160-37100i3ZRFAE..ZRR80201503-201701

main28160-38070i3ZRFAE..ZRR80201403-201503

main28160-70050i3ZRFAE..ZRR80201401-201403

9010510592

main90105-10592

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
