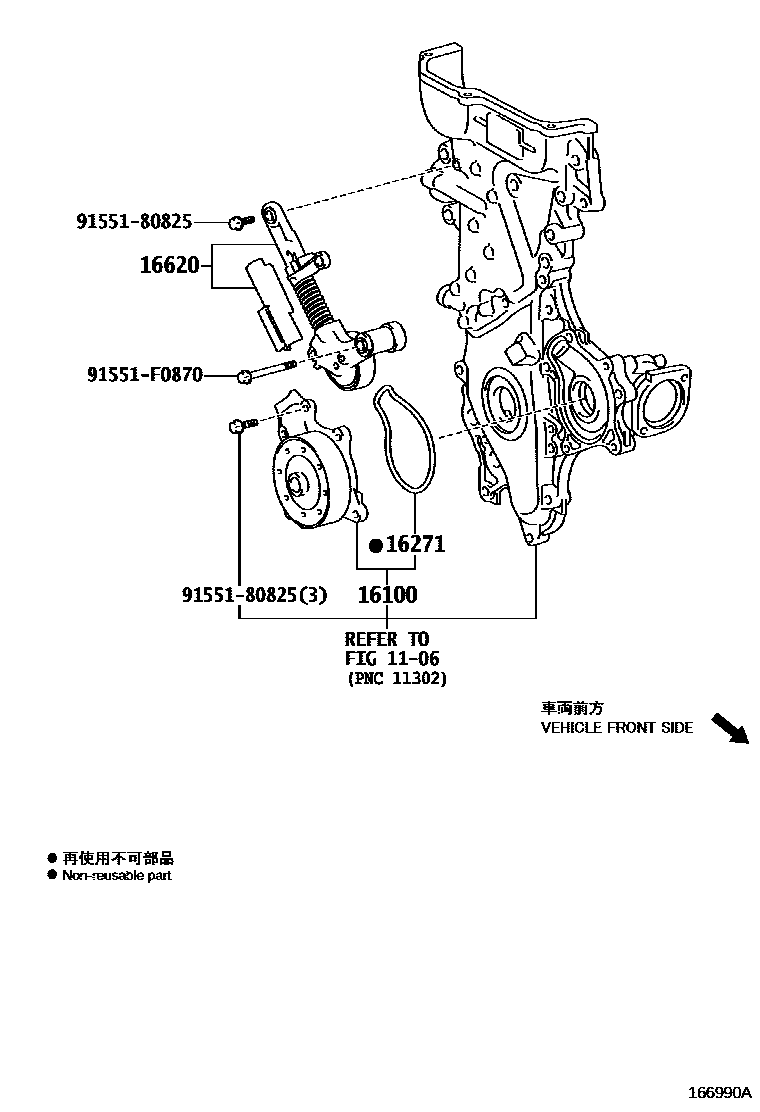

WATER PUMP

1106

16100PUMP ASSY, ENGINE WATER

main16100-39565i3ZRFAE..ZRR80201401-201706

16271GASKET, WATER PUMP

main16271-37030i3ZRFAE..ZRR80201401-201706

16620TENSIONER ASSY, V-RIBBED BELT

main16620-37011i3ZRFAE..ZRR80201401-201506

sub16620-37030

main16620-37030i3ZRFAE..ZRR80201507-201706

9155180825

main91551-80825

91551F0870

main91551-F0870

6 parts on this diagram · 1 diagram in section
