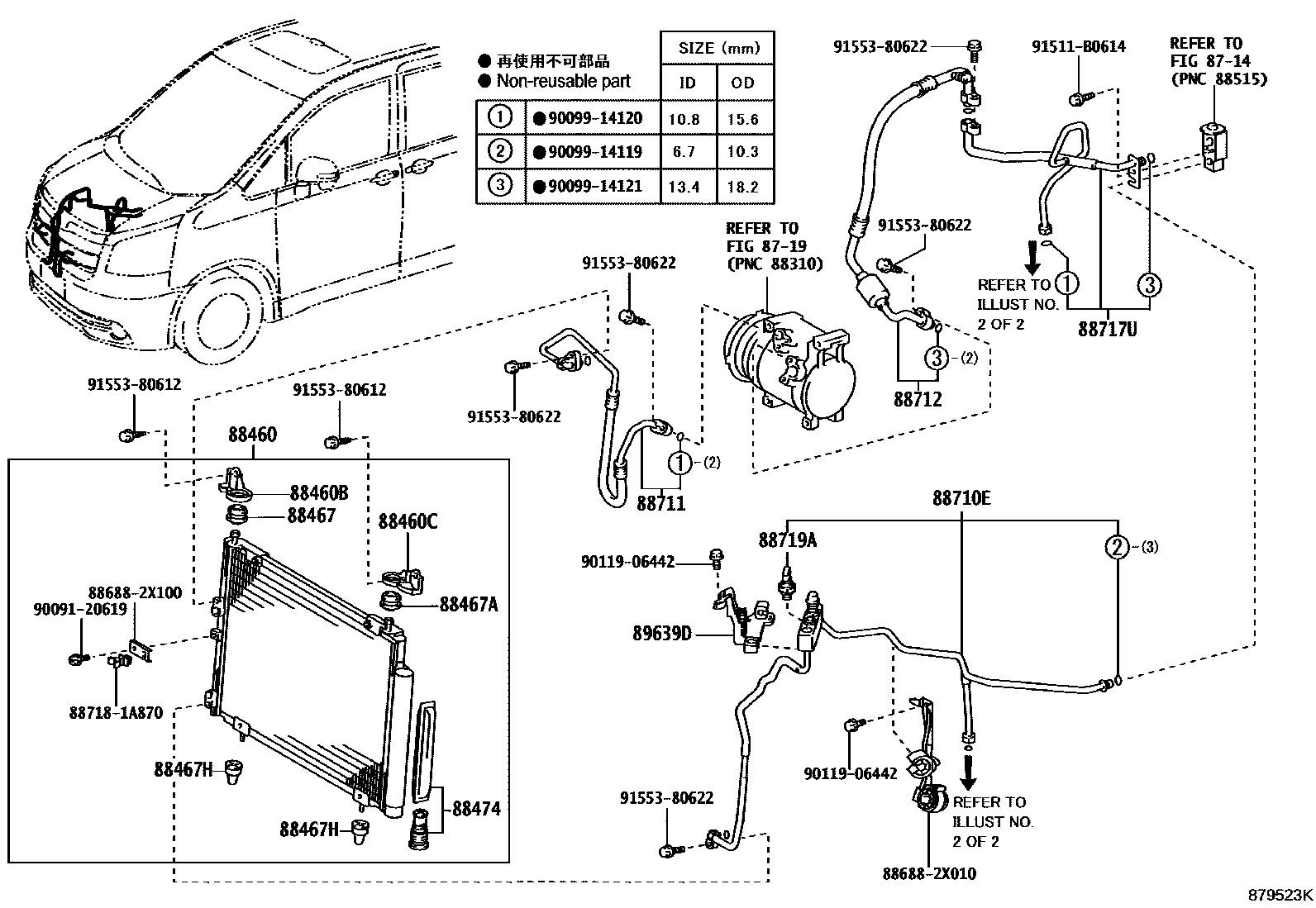

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1REAR

8714

8719

88460CONDENSER ASSY, COOLER

main88460-28630iZRR70200808-201004

sub88460-28640

main88460-28640iZRR70..GEN201004-201401

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-2J800iZRR70200808-201004

main88688-2X130iZRR70..GEN201004-201401

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-2J810iZRR70200808-201004

main88688-2X140iZRR70..GEN201004-201401

88467CUSHION, COOLER CONDENSER, NO.1

main88467-33030iZRR70200808-201401

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-33030iZRR70200808-201401

88467HCUSHION, CONDENSER BRACKET, NO.1

main88467-20190iZRR70200808-201004

88474DRYER, COOLER

main88474-17010iZRR70200808-201401

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-2X281iZRR70200808-201004

sub88710-2X282

main88710-2X282iZRR70..GEN201004-201401

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-2J330iZRR70200808-201401

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-2J010iZRR70200808-201401

88717UTUBE, SUCTION, NO.1

main88717-2X120iZRR70200808-201401

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRR70200808-201401

89639DCLAMP, AIRCONDITIONER TUBE

main89639-28190iZRR70200808-201004

886882X010BRACKET, COOLER DIAPHRAGM

main88688-2X010

886882X100BRACKET, COOLER DIAPHRAGM

main88688-2X100

887181A870PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A870

9009120619

main90091-20619

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906442

main90119-06442

91511B0614

main91511-B0614

9155380612

main91553-80612

9155380622

main91553-80622

26 parts on this diagram · 2 diagrams in section
