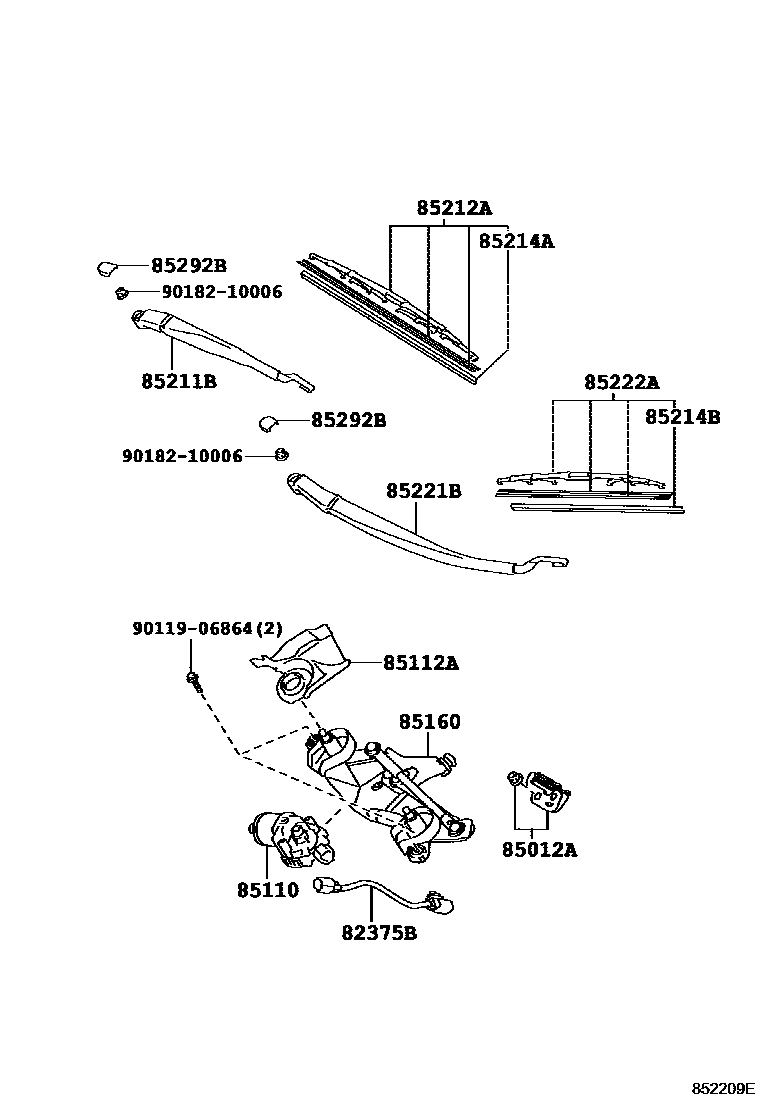

WINDSHIELD WIPER
82375BWIRE, WIPER MOTOR
85012ACRANK SUB-ASSY, FRONT WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1
85160LINK ASSY, WINDSHIELD WIPER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
sub85214-52110
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
9011906864
main90119-06864
9018210006
main90182-10006
14 parts on this diagram · 1 diagram in section
