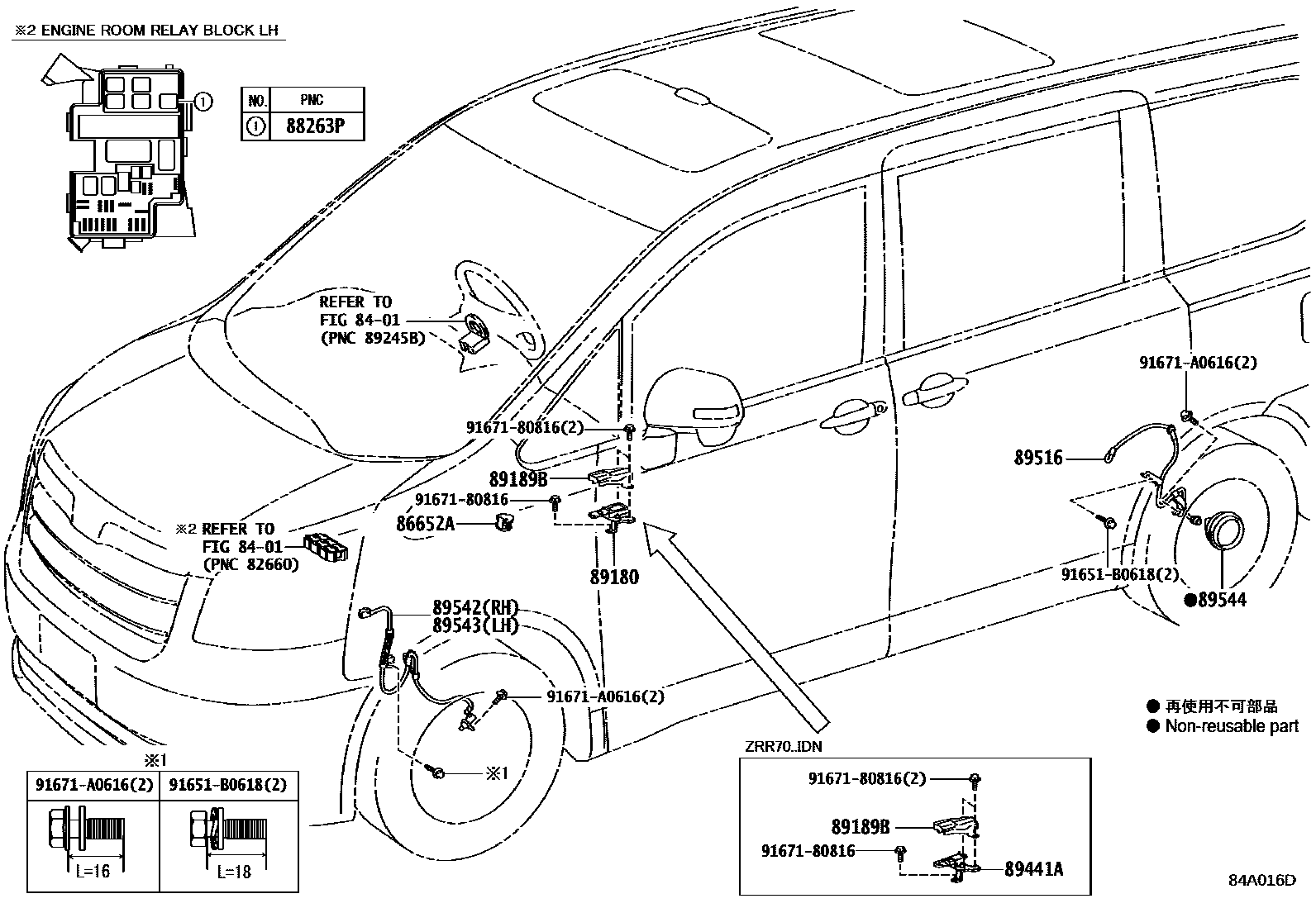

ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iZRR70..GEN201004-201401

88263PRELAY, STOP LAMP CONTROL

main90987-04004iZRR70200808-201004

89180SENSOR ASSY, YAWRATE

main89180-28030iZRR70200808-201002

main89180-28060iZRR70201003-201004

89189BBRACKET, YAWRATE SENSOR

main89189-28020iZRR70200808-201004

89441ASENSOR, DECELERATION

main89440-28090iZRR70..IDN201212

89516WIRE, SKID CONTROL SENSOR

main89516-28070iZRR70200808-201004

RH

main89516-28080iZRR70200808-201004

LH

89542SENSOR, SPEED, FRONT RH

main89542-28110iZRR70200808-201004

main89542-28160iZRR70201504

89543SENSOR, SPEED, FRONT LH

main89543-28110iZRR70200808-201004

main89543-28160iZRR70201504

89544SENSOR, SKID CONTROL

main89544-52040×2iZRR70200808-201004

91651B0618

main91651-B0618

9167180816

main91671-80816

91671A0616

main91671-A0616

13 parts on this diagram · 1 diagram in section
