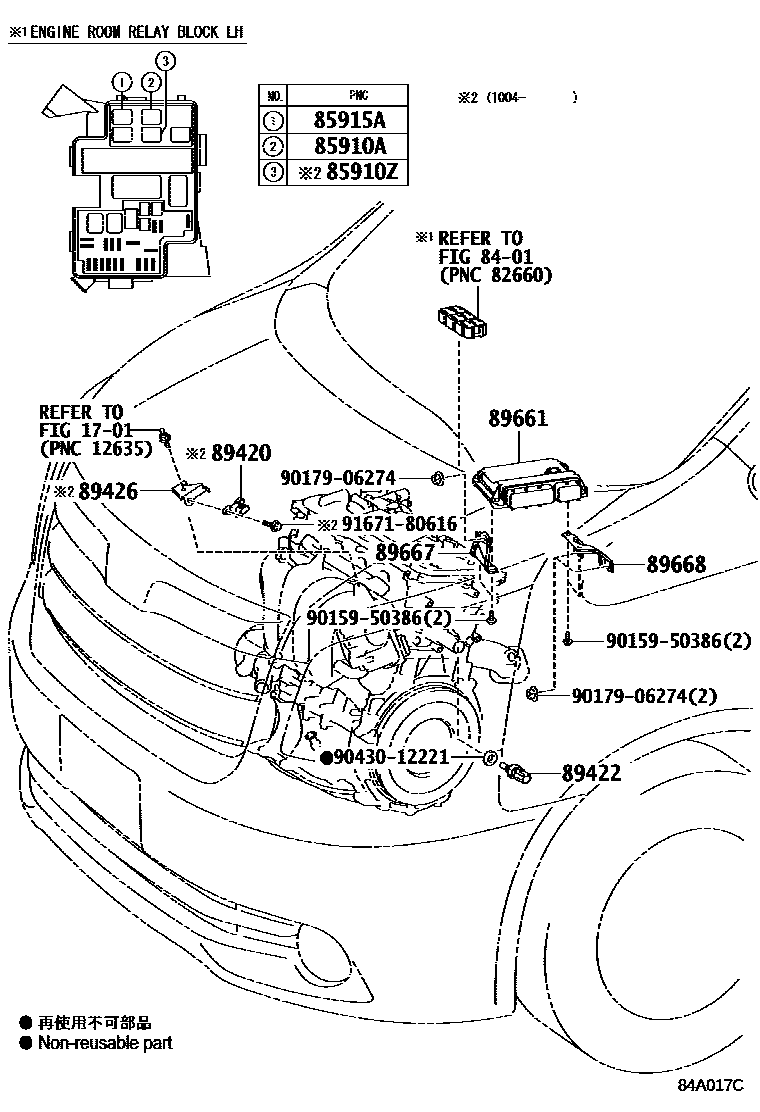

ELECTRONIC FUEL INJECTION SYSTEM

1701

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02024iZRR70200808-201004

sub90987-02027

sub90987-02034

85910ZRELAY, INJECTION (FOR EFI)

main90987-02024iZRR70201004

sub90987-02027

sub90987-02034

85915ARELAY, MAIN

main90987-02024iZRR70200808-201004

sub90987-02027

sub90987-02034

89420SENSOR ASSY, VACUUM

main89421-26030iZRR70201004-201612

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRR70200808-201401

89426BRACKET, VACUUM SENSOR

main89426-28080iZRR70201004

89661COMPUTER, ENGINE CONTROL

main89661-28C61iZRR70200808-201004

sub89661-28C62

main89661-28E20iZRR70201004-201102

sub89661-28E21

main89661-28E21iZRR70201103-201201

sub89661-28E22

main89661-28E22iZRR70..GEN201202-201401

main89661-28E80iZRR70..IDN201212

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28140iZRR70200808-201401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28140iZRR70200808-201401

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

9167180616

main91671-80616

15 parts on this diagram · 1 diagram in section
