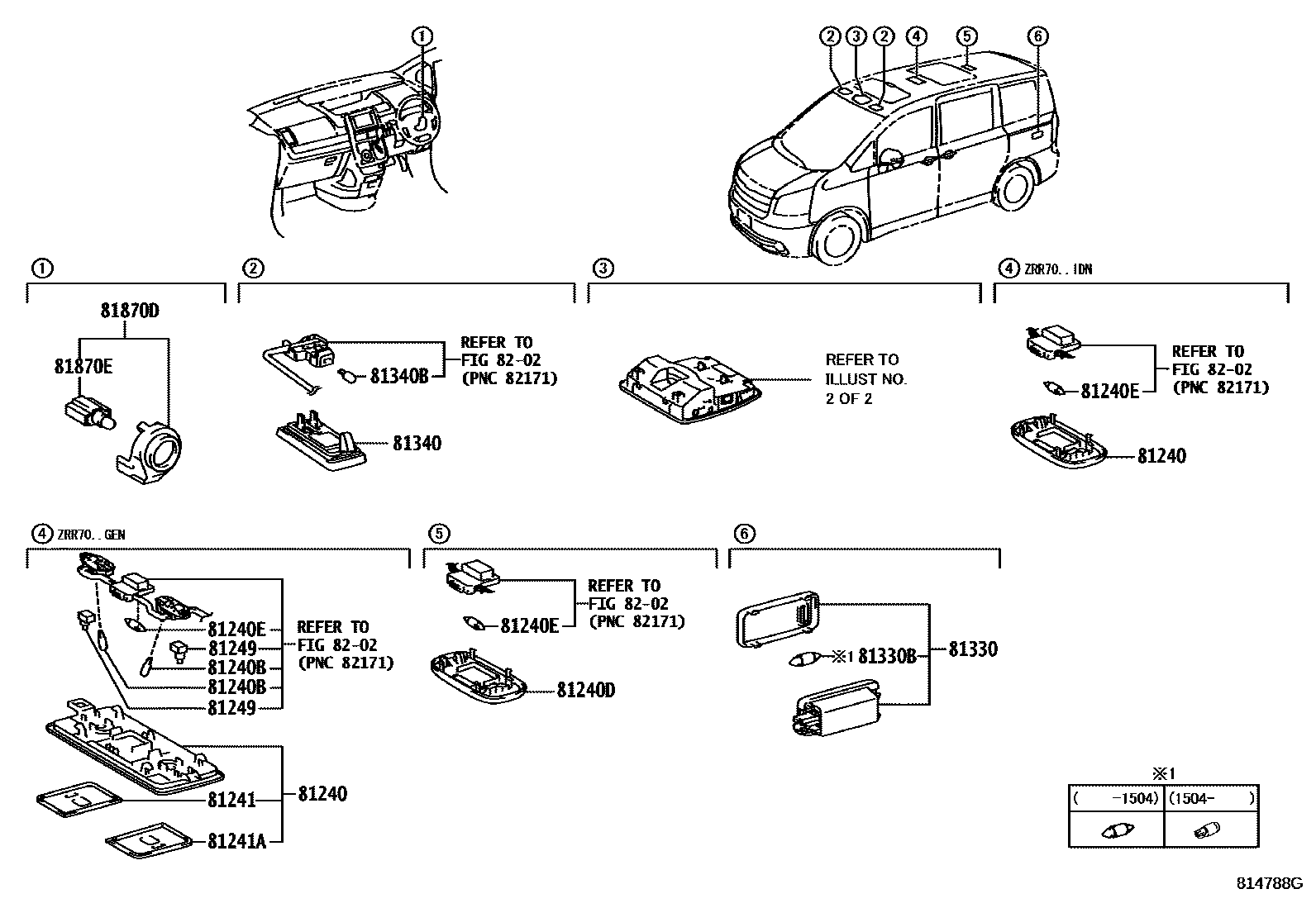

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81240DLAMP ASSY, ROOM, NO.2
81240EBULB, ROOM LAMP, NO.2
12V 8W
81241LENS, ROOM LAMP, NO.1
81241ALENS, ROOM LAMP, NO.2
81249SWITCH, ROOM LAMP
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W
81340LAMP ASSY, VANITY
GREGE,TRIM4#
81340BBULB (FOR VANITY LAMP)
12V 8W
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
14V 1.4W,INDONESIA DX&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)
8202
14 parts on this diagram · 2 diagrams in section
