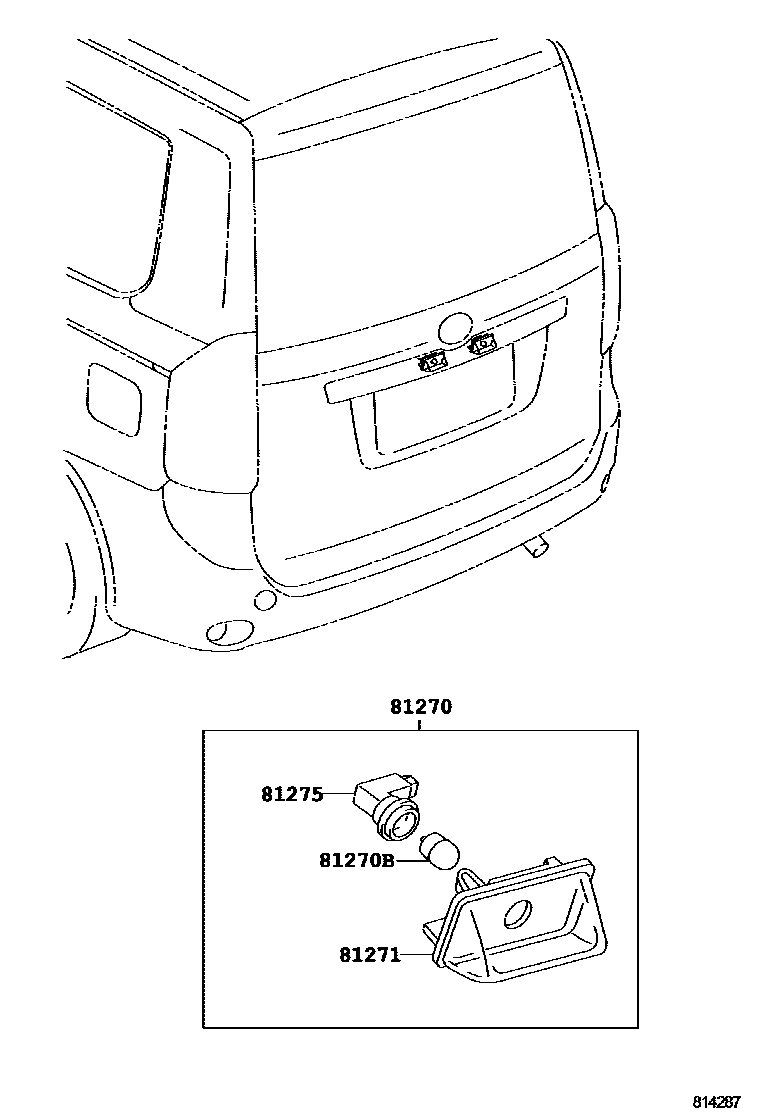

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-12502iZRR70200808-200911

sub81270-12503

main81270-12503iZRR70200912-201401

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iZRR70200808-201401

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-12502iZRR70200808-200912

sub81271-12503

main81271-12503iZRR70200912-201401

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501iZRR70200808-201401

4 parts on this diagram · 1 diagram in section
