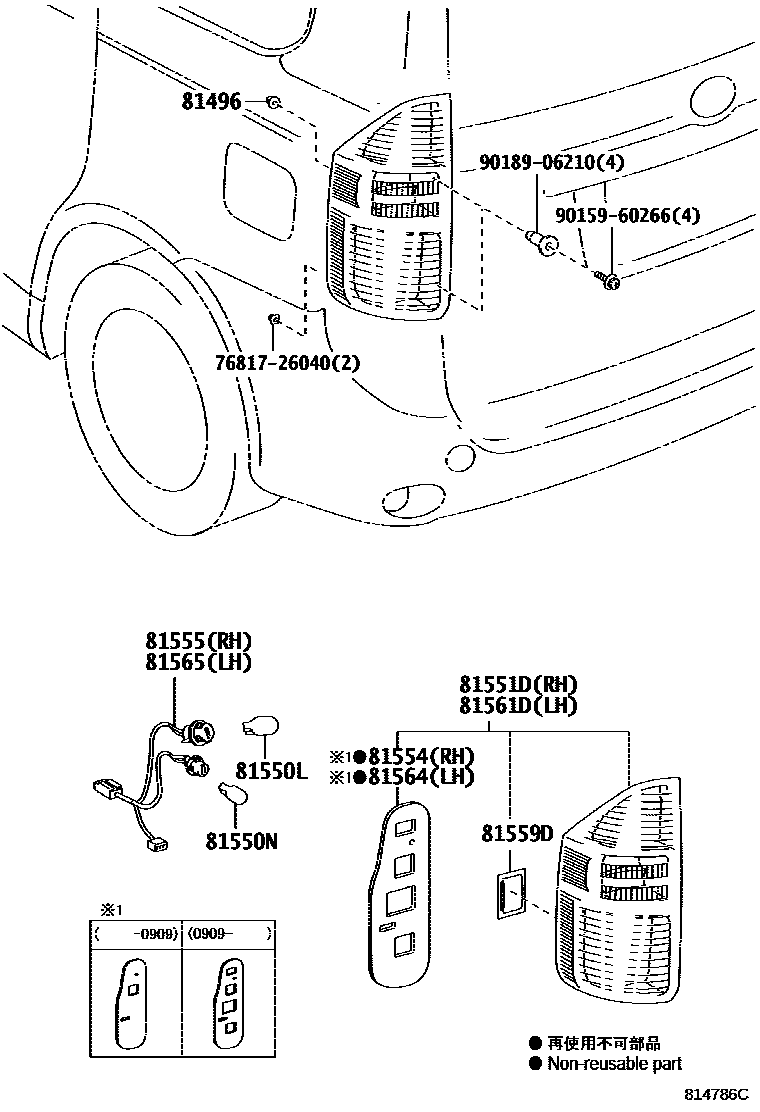

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iZRR70200808-201401

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iZRR70200808-201401

81550NBULB, BACK UP LAMP

main90981-11059iZRR70200808-201401

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-28430iZRR70200808-200905

sub81551-28431

main81551-28431iZRR70200905-201004

main81551-28580iZRR70201004-201103

sub81551-28581

main81551-28581iZRR70201103-201306

sub81551-28582

main81551-28582iZRR70..GEN201306-201401

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-28430iZRR70200808-200909

sub81552-28431

main81554-28431iZRR70200909-201004

sub81554-28432

main81554-28580iZRR70..GEN201004-201401

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28430iZRR70200808-201004

main81555-28580iZRR70201004-201103

sub81555-28581

main81555-28581iZRR70..GEN201103-201401

81559DDESICCANT, REAR COMBINATION LAMP

main81559-28430iZRR70200905-201004

main81559-28450iZRR70200808-200905

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-28430iZRR70200808-200905

sub81561-28431

main81561-28431iZRR70200905-201004

main81561-28550iZRR70201004-201103

sub81561-28551

main81561-28551iZRR70201103-201306

sub81561-28552

main81561-28552iZRR70..GEN201306-201401

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-28430iZRR70200808-200909

sub81562-28431

main81564-28431iZRR70200909-201004

sub81564-28432

main81564-28550iZRR70..GEN201004-201401

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28430iZRR70200808-201004

main81555-28580iZRR70201004-201103

sub81555-28581

main81555-28581iZRR70..GEN201103-201401

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960266

main90159-60266

9018906210

main90189-06210

13 parts on this diagram · 2 diagrams in section
