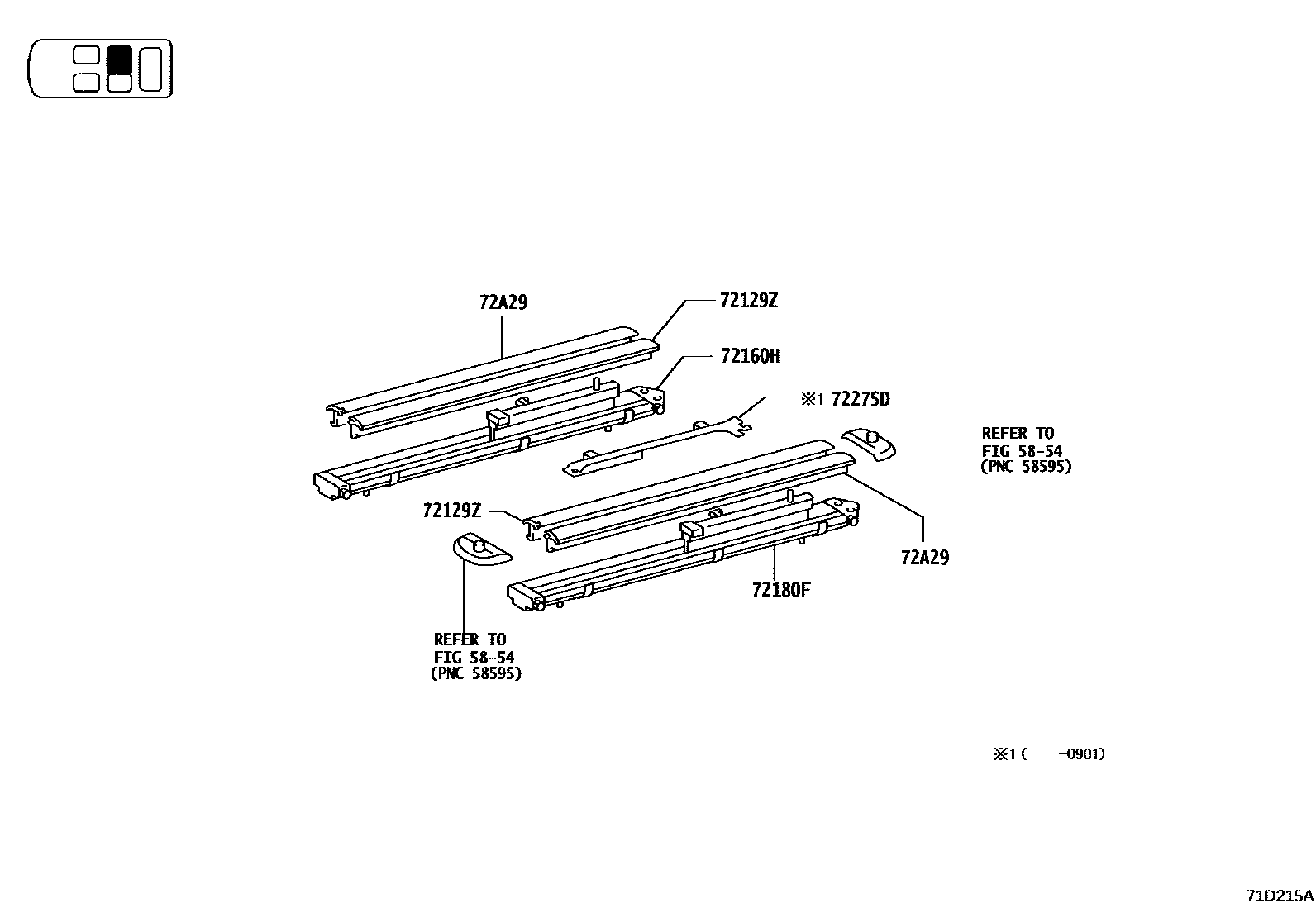

SEAT RAIL

0001 1REAR NO.1 SEAT(RH),HONG KONG 0002 1REAR NO.1 SEAT(LH),HONG KONG 0003 1SEAT RAIL & PROTECTOR

5854

72129ZPROTECTOR, SEAT TRACK LOWER RAIL

main72129-28240-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub72129-28240

main72129-28300-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

sub72129-58100

main72129-28300-E0iZRR70201004-201401

GREGE,TRIM4#

sub72129-58100

72160HTRACK ASSY, REAR SEAT, OUTER RH

main72160-28600iZRR70..S;ZRR70..IDN201004-201612

main72160-28610iZRR70..E..GEN201004-201401

main72160-28650iZRR70200808-201004

HONG KONG SPEC

72180FTRACK ASSY, REAR SEAT, INNER RH

main72180-28050iZRR70200808-201004

HONG KONG SPEC

main72180-28060iZRR70..S;ZRR70..IDN201004-201612

main72180-28070iZRR70..E..GEN201004-201401

72275DSTOPPER, REAR SEAT TRACK SLIDE, RH NO.1

main72275-28060iZRR70200808-200901

HONG KONG SPEC

72A29PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-28230-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub72129-28230

main72129-28290-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main72129-28290-E0iZRR70201004-201401

GREGE,TRIM4#

6 parts on this diagram · 3 diagrams in section
