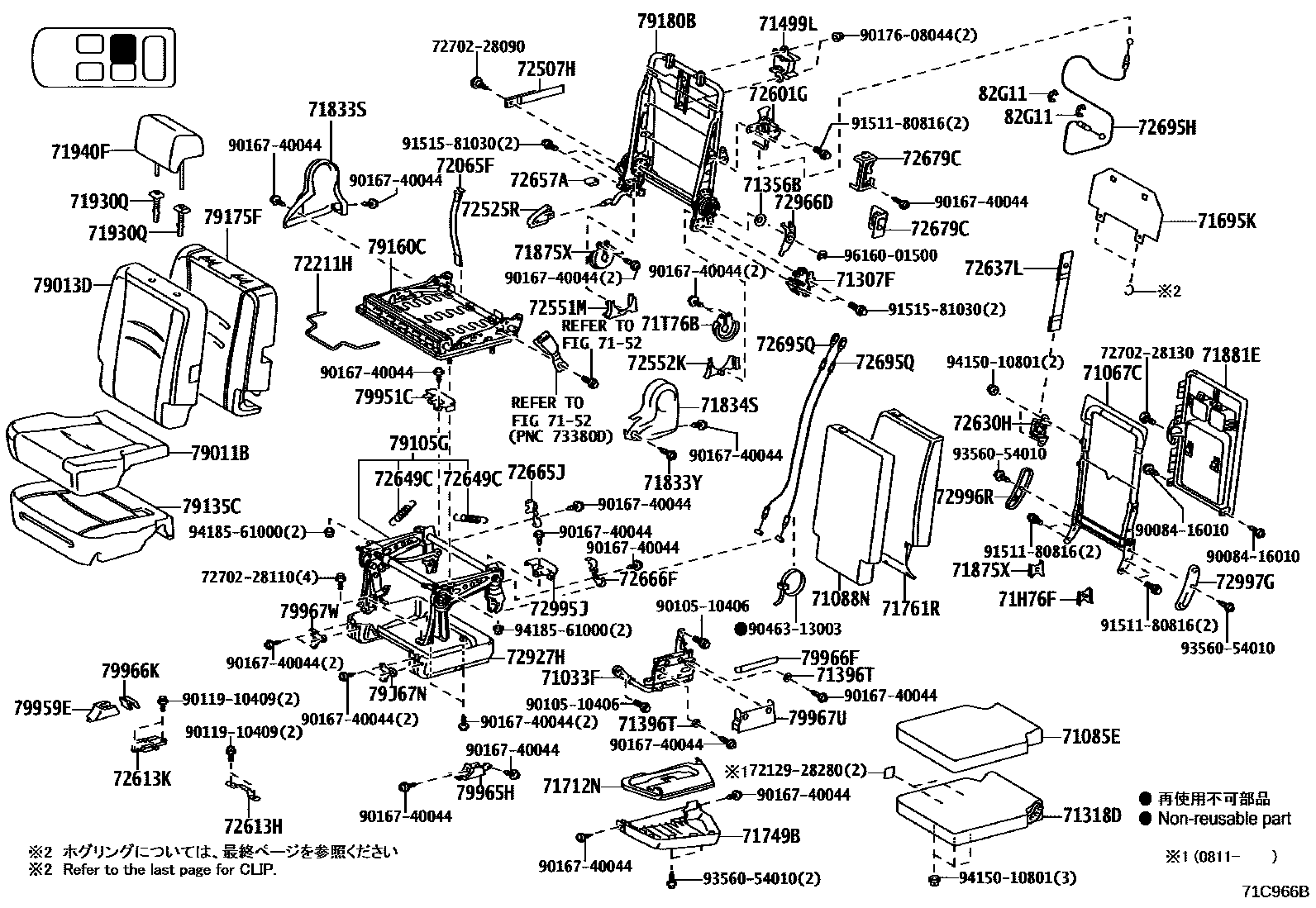

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT(RH) 0002 1REAR NO.1 SEAT(LH) 0003 1REAR NO.1 SEAT(RH),HONG KONG 0004 1REAR NO.1 SEAT(LH),HONG KONG 0005 1REAR NO.1 SEAT(RH) 0006 1REAR NO.1 SEAT(LH) 0007 1REAR NO.1 SEAT(RH) 0009 1REAR NO.1 SEAT(LH) 0011 1REAR NO.2 SEAT(RH) 0012 1REAR NO.2 SEAT(LH) 0013 1CLIP

71033FLEG SUB-ASSY, REAR SEAT CUSHION, RH

main71039-28010iZRR70200808-201004

71067CFRAME SUB-ASSY, REAR SIDE SEATBACK, RH

main71067-28060iZRR70200808-201004

main71067-28090iZRR70200808-201004

HONG KONG SPEC

71085ECOVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH

main71085-28130-E1iZRR70200811-201004

HONG KONG SPEC,GREGE,TRIM4#

main71085-28160-E0iZRR70200811-201004

GREGE,TRIM4#

main71085-28180-E0iZRR70200808-200811

GREGE,TRIM4#

main71085-28190-E0iZRR70200808-200811

HONG KONG SPEC,GREGE,TRIM4#

71088NCOVER SUB-ASSY, REAR SIDE SEATBACK, RH

main71088-28130-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

main71088-28160-E0iZRR70200808-201004

GREGE,TRIM4#

71307FBRACKET SUB-ASSY, NO.1 SEAT CUSHION(FOR RH SEAT)

main71307-28050iZRR70200808-201004

71318DPAD, CENTER SEAT CUSHION

main71032-28020iZRR70200808-201004

main71032-28030iZRR70200808-201004

HONG KONG SPEC

71356BPLATE, REAR SEATBACK HINGE, INNER RH

main71356-28050iZRR70200808-201004

71396TCUSHION, NO.1 SEAT SUPPORT, REAR

main71396-28030-E1iZRR70200808-201004

GREGE,TRIM4#

sub71396-28030

71499LDAMPER, NO.1 SEATBACK SPRING, RH

main71499-28050iZRR70..E..GEN200808-201401

main71499-46020iZRR70..S;ZRR70..IDN201004-201612

main71499-46020iZRR70200808-201004

HONG KONG SPEC

7152

71695KPROTECTOR, NO.1 SEATBACK, RH

main71695-28220iZRR70200808-201004

71712NCOVER, SIDE SEAT CUSHION, REAR

main71712-28010-E0iZRR70200808-201004

GREGE,TRIM4#

71749BCOVER, SIDE SEAT LOWER CUSHION, RH

main71749-28020-E0iZRR70200808-201004

GREGE,TRIM4#

main71749-28030-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

71761RPAD, REAR SIDE SEATBACK

main71761-28020iZRR70200808-201004

main71761-28030iZRR70200808-201004

HONG KONG SPEC

71833SCOVER, REAR SEAT RECLINING, NO.1 RH

main71801-28010-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

main71833-28170-E0iZRR70200808-201004

GREGE,TRIM4#

main71833-28200-E0iZRR70..E..GEN201004-201401

GREGE,TRIM4#

main71833-28210-B0iZRR70..IDN201311-201612

DK.GRAY,TRIM2#

main71833-28210-E0iZRR70..IDN201004-201401

GREGE,TRIM4#

71833YCLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)

main71769-28020-E0iZRR70200808-201004

GREGE,TRIM4#

sub71769-28020

71834SCOVER, REAR SEAT RECLINING, NO.1 LH

main71834-28160-E0iZRR70200808-201004

GREGE,TRIM4#

main71834-28170-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

main71834-28240-E0iZRR70..E..GEN201004-201401

GREGE,TRIM4#

main71834-28250-B0iZRR70..IDN201311-201612

DK.GRAY,TRIM2#

main71834-28250-E0iZRR70..S201004-201401

GREGE,TRIM4#

71875XCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-28060iZRR70200808-201004

NO.1

main71875-28070-E0iZRR70200808-200909

HONG KONG SPEC,GREGE,TRIM4#

sub71875-28070

sub71875-28340

main71875-28180iZRR70..E..GEN201004-201401

NO.1:REFER ILLUST.

main71875-28300-E0iZRR70..E..GEN201004-201401

GREGE,TRIM4#,NO.2:REFER ILLUST.

main71875-28340-B0iZRR70..IDN201311-201612

DK.GRAY,TRIM2#

main71875-28340-E0iZRR70..IDN201004-201401

GREGE,TRIM4#

main71875-28340-E0iZRR70200910-201004

HONG KONG SPEC,GREGE,TRIM4#

main71876-28270-E0iZRR70200808-201004

GREGE,TRIM4#,NO.2

sub71876-28270

71881EBOARD, REAR NO.1 SEATBACK, CENTER

main79156-28030-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub79156-28030

main79156-28040-E0iZRR70200808-201004

GREGE,TRIM4#

71930QSUPPORT ASSY, REAR SEAT HEADREST

main71930-44020-B0iZRR70..IDN201311-201612

W(LOCK),DK.GRAY,TRIM2#

sub71930-44020

sub71930-02370

main71930-44020-E0iZRR70..S201004-201401

W(LOCK),GREGE,TRIM4#

sub71930-44020

sub71930-02370

main71930-47010-E3iZRR70200808-201004

W(LOCK),GREGE,TRIM4#

sub71930-47010

sub71930-44020

main71931-47010-B2iZRR70..IDN201311-201612

W/O(LOCK),DK.GRAY,TRIM2#

sub71931-47010

sub71931-42020

main71931-47010-E4iZRR70..S200808-201401

W/O(LOCK),GREGE,TRIM4#

sub71931-47010

sub71931-42020

71940FHEADREST ASSY, NO.1 SEAT, RH

main71940-28B30-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main71940-28B50-C1iZRR70..IDN201311-201612

INDONESIA DX,BLACK,TRIM2#

main71940-28B70-E1iZRR70..S201004-201401

GREGE,TRIM4#

main71940-28C10-E0iZRR70200808-200901

GREGE,TRIM4#

sub71940-28C11

main71940-28C11-E1iZRR70200901-201004

GREGE,TRIM4#

sub71940-28C11

main71940-28C11-E2iZRR70..E201004-201210

GREGE,TRIM4#

sub71940-28C11

main71940-28C11-E3iZRR70..E..GEN201210-201401

GREGE,TRIM4#

sub71940-28C11

71H76FCOVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH SEAT)

main71875-28280-E0iZRR70200808-201004

GREGE,TRIM4#

sub71875-28280

main71876-28260-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

71T76BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-28060iZRR70200808-201004

main71876-28070-E0iZRR70200808-200909

HONG KONG SPEC,GREGE,TRIM4#

sub71876-28070

sub71876-28330

main71876-28170iZRR70..E..GEN201004-201401

main71876-28330-B0iZRR70..IDN201311-201612

DK.GRAY,TRIM2#

main71876-28330-E0iZRR70..S201004-201401

GREGE,TRIM4#

main71876-28330-E0iZRR70200910-201004

HONG KONG SPEC,GREGE,TRIM4#

72065FBELT SUB-ASSY, REAR SEAT HOOK, RH

main72065-28170-E0iZRR70200808-200910

GREGE,TRIM4#

sub72065-28171

main72065-28171-E0iZRR70200910-201004

GREGE,TRIM4#

sub72065-28171

72211HHANDLE, SEAT TRACK ADJUSTING, RH

main72211-28140iZRR70200808-201004

72507HHANDLE SUB-ASSY, RECLINING RELEASE, RH

main72507-28120-E0iZRR70200808-201004

GREGE,TRIM4#

main72507-28130-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

72525RHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-28110-E0iZRR70..E..GEN201004-201401

GREGE,TRIM4#

sub72525-28110

main72525-47020-B1iZRR70..IDN201311-201612

DK.GRAY,TRIM2#

sub72525-47020

main72525-47020-E2iZRR70..IDN200808-201401

GREGE,TRIM4#

sub72525-47020

72551MCOVER, RECLINING HINGE, RH NO.1(FOR RH SEAT)

main72551-28070-E0iZRR70200808-201004

GREGE,TRIM4#

sub72551-28070

72552KCOVER, RECLINING HINGE, LH NO.1(FOR RH SEAT)

main72552-28070-E0iZRR70200808-201004

GREGE,TRIM4#

72601GSTRIKER SUB-ASSY, REAR SEAT LOCK

main72601-28020iZRR70200808-201004

main72601-28030iZRR70200808-201004

HONG KONG SPEC

72613HSTRIKER, REAR SEAT LOCK

main72613-28130iZRR70200808-201004

72613KSTRIKER, REAR SEAT LOCK, NO.2

main72613-28170iZRR70200808-201004

72630HLOCK ASSY, NO.1 SEATBACK

main72630-28100iZRR70200808-201004

main72630-28110iZRR70200808-201004

HONG KONG SPEC

72637LHANDLE, REAR SEAT LOCK

main72637-28120-E1iZRR70200808-201004

GREGE,TRIM4#

main72637-28130-E0iZRR70200909-201004

HONG KONG SPEC,GREGE,TRIM4#

72649CSPRING, REAR SEAT CUSHION SUPPORT

main72649-28010iZRR70200808-201004

72657ASILENCER, REAR SEATBACK LOCK CONTROL ROD

main72657-28010iZRR70200808-201004

72665JCOVER, REAR SEAT LOCK, RH

main72665-28060iZRR70200808-201004

72666FCOVER, REAR SEAT LOCK, LH

main72666-28050iZRR70200808-201004

72679CBEZEL, REAR SEATBACK LOCK CONTROL

main72679-28060-E0iZRR70200808-201004

GREGE,TRIM4#,NO.1

sub72679-28060

main72679-28070iZRR70200808-201004

NO.2

main72679-28080-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub72679-28080

72695HCABLE, REAR NO.1 SEAT LOCK CONTROL, RH

main72695-28090iZRR70200808-201004

72695QCABLE, REAR SEAT LOCK CONTROL

main72695-28070iZRR70200808-201004

main72695-28100iZRR70200808-201004

HONG KONG SPEC

72927HCOVER, REAR NO.1 SEAT CUSHION UNDER, RH NO.1

main72927-28110-E0iZRR70200808-201004

GREGE,TRIM4#

sub72927-28110

main72927-28150-E0iZRR70..E..GEN201004-201401

GREGE,TRIM4#

72966DPLATE, REAR SEAT TURN LOCK, NO.1 RH

main72966-28040iZRR70200808-201004

72995JCOVER, REAR NO.1 SEAT CUSHION

main79952-28040-E0iZRR70200811-201004

GREGE,TRIM4#

sub79952-28040

72996RCOVER, REAR NO.1 SEATBACK, RH

main72996-28100-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub72996-28100

main72996-28190-E0iZRR70200808-201004

GREGE,TRIM4#

72997GCOVER, REAR NO.1 SEATBACK, LH NO.1

main72997-28020-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub72997-28020

main72997-28050-E0iZRR70200808-201004

GREGE,TRIM4#

79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-28F10-E1iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

main79011-28G10-E0iZRR70200808-200910

GREGE,TRIM4#

sub79011-28G11

main79011-28G11-E0iZRR70200910-201004

GREGE,TRIM4#

main79011-28J10-E1iZRR70..E201004-201210

GREGE,TRIM4#

sub79011-28J10

main79011-28J10-E2iZRR70..E..GEN201210-201401

GREGE,TRIM4#

sub79011-28J10

main79011-28J20-C2iZRR70..IDN201311-201612

BLACK,TRIM2#

sub79011-28J20

main79011-28J20-E1iZRR70..IDN201212-201311

GREGE,TRIM4#

sub79011-28J20

main79011-28J30-C3iZRR70..IDN201311-201612

INDONESIA DX,BLACK,TRIM2#

sub79011-28J30

main79011-28J40-E0iZRR70..S201004-201210

GREGE,TRIM4#

sub79011-28J40

main79011-28J40-E1iZRR70..S201210-201401

GREGE,TRIM4#

sub79011-28J40

79013DCOVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-28F90-E1iZRR70200808-200904

HONG KONG SPEC,GREGE,TRIM4#

sub79013-28F91

main79013-28F91-E2iZRR70200904-201004

HONG KONG SPEC,GREGE,TRIM4#

main79013-28G90-E0iZRR70200808-201004

GREGE,TRIM4#

main79013-28J90-E1iZRR70..E201004-201210

GREGE,TRIM4#

sub79013-28J90

main79013-28J90-E2iZRR70..E..GEN201210-201401

GREGE,TRIM4#

sub79013-28J90

main79013-28K00-C1iZRR70..IDN201311-201612

BLACK,TRIM2#

main79013-28K00-E1iZRR70..IDN201212-201311

GREGE,TRIM4#

main79013-28K10-C3iZRR70..IDN201311-201612

INDONESIA DX,BLACK,TRIM2#

main79013-28K20-E1iZRR70..S201004-201401

GREGE,TRIM4#

79105GLEG SUB-ASSY, NO.1 SEAT, RH

main79105-28330iZRR70200808-201004

main79105-28350iZRR70200808-201004

HONG KONG SPEC

main79105-28380iZRR70..S;ZRR70..IDN201004-201612

main79105-28390iZRR70..E..GEN201004-201401

79135CPAD, NO.1 SEAT CUSHION, RH

main79135-28430iZRR70200808-201004

main79135-28450iZRR70200808-201004

HONG KONG SPEC

main79135-28480iZRR70..E..GEN201004-201401

main79135-28490iZRR70..S;ZRR70..IDN201004-201612

79160CSPRING ASSY, NO.1 SEAT CUSHION

main79160-28340iZRR70200808-201004

main79160-28360iZRR70200808-201004

HONG KONG SPEC

main79160-28380iZRR70..E..GEN201004-201401

main79160-28390iZRR70..S;ZRR70..IDN201004-201612

79175FPAD, NO.1 SEATBACK, RH

main79175-28400iZRR70200808-201004

main79175-28420iZRR70200808-201004

HONG KONG SPEC

main79175-28490iZRR70..E..GEN201004-201401

main79175-28500iZRR70..S;ZRR70..IDN201004-201612

79180BSPRING ASSY, NO.1 SEATBACK, RH

main79180-28630iZRR70200808-201004

main79180-28650iZRR70200808-201004

HONG KONG SPEC

main79180-28680iZRR70..E..GEN201004-201401

main79180-28690iZRR70..S;ZRR70..IDN201004-201612

79951CCOVER, NO.1 SEAT CUSHION, NO.3

main79952-28030-E0iZRR70200811-201004

GREGE,TRIM4#

sub79952-28030

79959ECOVER, NO.1 SEAT LEG, RH

main79959-28180-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub79959-28180

main79959-28210-E0iZRR70200808-201004

GREGE,TRIM4#

sub79959-28210

main79959-28230-B0iZRR70..IDN201311-201612

DK.GRAY,TRIM2#

main79959-28230-E0iZRR70..IDN201004-201401

GREGE,TRIM4#

79965HCOVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)

main79965-28180-E0iZRR70200808-201004

GREGE,TRIM4#

sub79965-28180

main79965-28200-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main79965-28200-E0iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

main79965-28200-E0iZRR70..S;ZRR70..IDN201004-201401

GREGE,TRIM4#

79966FCOVER, NO.1 SEAT LEG SIDE, NO.3(FOR RH SEAT)

main79966-28140-E1iZRR70200808-201004

GREGE,TRIM4#

sub79966-28140

79966KCOVER, REAR SEAT LEG, RH(FOR RH SEAT)

main79966-28150-E0iZRR70200808-201004

GREGE,TRIM4#

sub79966-28150

79967UCOVER, REAR NO.1 SEAT LEG SIDE, NO.2

main79965-28160-E1iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

sub79965-28160

main79965-28170-E0iZRR70200808-201004

GREGE,TRIM4#

sub79965-28170

79967WCOVER, REAR NO.1 SEAT LEG SIDE, NO.4

main79967-28060-E0iZRR70200808-201004

GREGE,TRIM4#

sub79967-28060

79J67NCOVER, REAR SEAT LEG SIDE, NO.7

main79967-28070-E0iZRR70200808-201004

GREGE,TRIM4#

sub79967-28070

82G11CLAMP, WIRING HARNESS

main82711-2B660iZRR70200808-201004

7270228090BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28090

7270228110BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28110

7270228130BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28130

9008416010

main90084-16010

9010510406

main90105-10406

9011910409

main90119-10409

9016740044

main90167-40044

9017608044

main90176-08044

9046313003

main90463-13003

9151180816

main91511-80816

9151581030

main91515-81030

9356054010

main93560-54010

9415010801

main94150-10801

9418561000

main94185-61000

9616001500

main96160-01500

77 parts on this diagram · 11 diagrams in section
