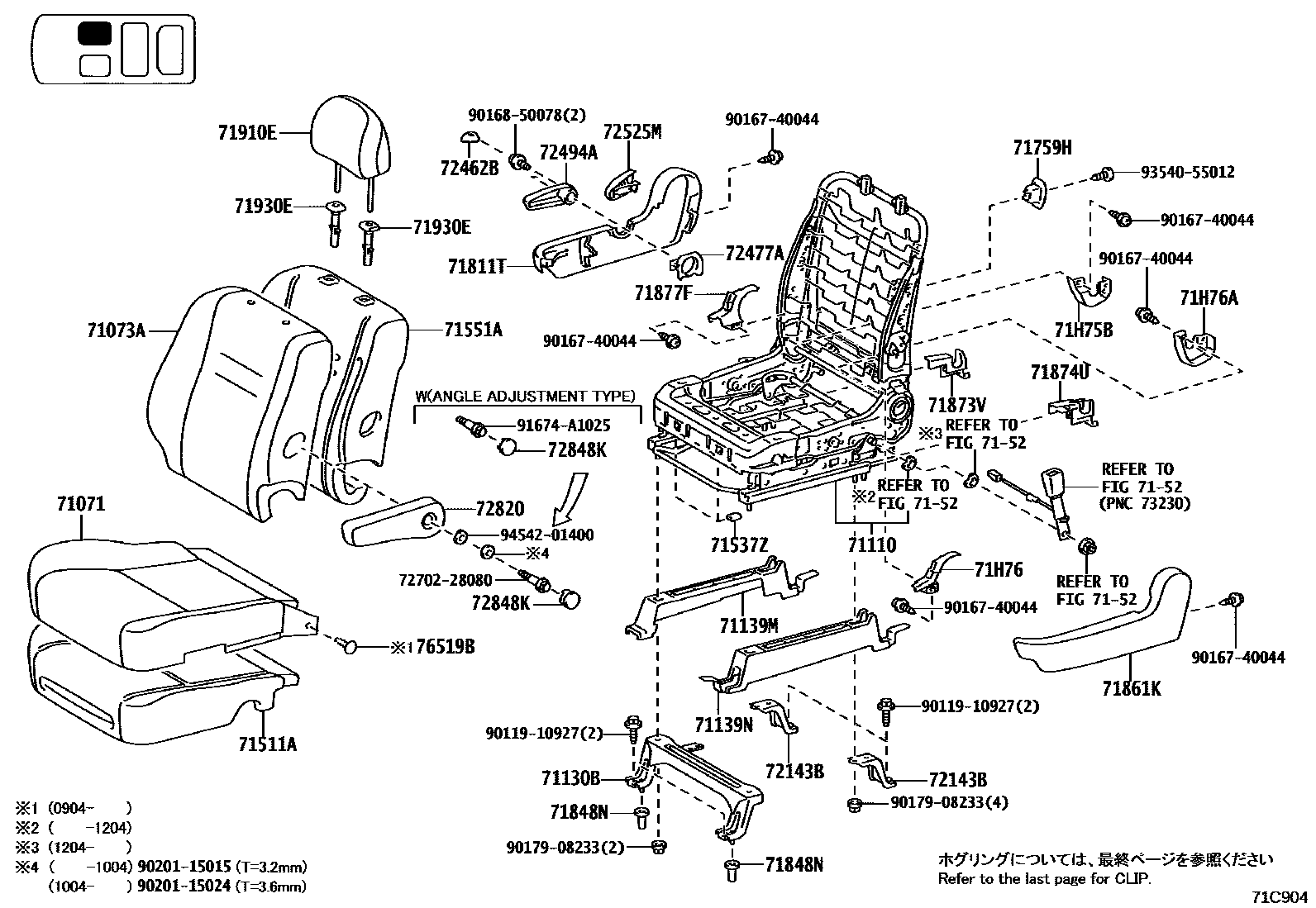

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1CLIP

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-28C60-E2iZRR70200808-200904

GREGE,TRIM4#

main71071-28C61-E3iZRR70200904-201004

GREGE,TRIM4#

sub71071-28D11

main71071-28E60-E1iZRR70..IDN201212-201401

GREGE,TRIM4#

sub71071-28E70

main71071-28F20-E1iZRR70201004-201210

GREGE,TRIM4#

main71071-28F20-E2iZRR70..GEN201210-201401

GREGE,TRIM4#

main71071-28E80-C3supersedes 71071-28E60-C1iZRR70..IDN201311-201612

INDONESIA DX,BLACK,TRIM2#

sub71071-28F00

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-28D90-E2iZRR70200808-200904

GREGE,TRIM4#

main71073-28D91-E3iZRR70200904-201004

GREGE,TRIM4#

main71073-28G50-E1iZRR70..IDN201212-201401

GREGE,TRIM4#

main71073-28J10-E2iZRR70..GEN201004-201401

GREGE,TRIM4#

main71073-28G70-C3supersedes 71073-28G50-C1iZRR70..IDN201311-201612

INDONESIA DX,BLACK,TRIM2#

71110FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-28250iZRR70200808-201004

sub71110-28251

main71110-28252iZRR70..IDN201212-201407

main71110-28253iZRR70201408-201612

main71110-28410iZRR70201004-201202

main71110-28411iZRR70201203-201204

sub71110-28413

sub73214-75010

main71110-28412iZRR70..GEN201204-201401

sub71110-28413

71130BLEG ASSY, FRONT SEAT, RH

main71130-28070iZRR70201004-201612

71139MCOVER, FRONT SEAT LEG, RH OUTER

main71139-28190-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71139-28190-E0iZRR70200808-201004

GREGE,TRIM4#

71139NCOVER, FRONT SEAT LEG, RH INNER

main71149-28170-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71149-28170-E0iZRR70200808-201004

GREGE,TRIM4#

71511APAD, FRONT SEAT CUSHION, RH

main71511-28340iZRR70201004-201612

7152

71537ZPROTECTOR, FRONT SEAT CUSHION

main71537-26010×4iZRR70200808-201004

71551APAD, FRONT SEATBACK, RH

main71551-28660iZRR70200808-201004

71759HHOOK, FRONT SEATBACK

main71759-28050-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71759-28050-E0iZRR70200808-201004

GREGE,TRIM4#

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-28340-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71811-28340-E0iZRR70200808-201004

GREGE,TRIM4#

71848NCAP, FRONT SEAT ADJUSTER COVER, RH NO.1

main71848-33010×2iZRR70200808-201004

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-28030-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71861-28030-E0iZRR70200808-201004

GREGE,TRIM4#

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-28010×2iZRR70200808-201004

main71873-28011×2iZRR70201301-201612

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-28010×2iZRR70200808-201004

main71874-28011×2iZRR70201301-201612

71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

main71875-58040-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71875-58040-E1iZRR70201004-201401

GREGE,TRIM4#

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-28B60-E0iZRR70200808-201004

GREGE,TRIM4#

main71910-28B60-E2iZRR70..GEN201004-201401

GREGE,TRIM4#

main71910-28C80-E0iZRR70..IDN201212-201401

GREGE,TRIM4#

main71910-28C70-C3supersedes 71910-28C80-C0iZRR70..IDN201311-201612

INDONESIA DX,BLACK,TRIM2#

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-44020-B0iZRR70..IDN201212-201612

W(LOCK),DK.GRAY,TRIM2#

sub71930-02370

main71930-44020-E0iZRR70201004-201401

W(LOCK),GREGE,TRIM4#

sub71930-02370

main71930-47010-E3iZRR70200808-201004

W(LOCK),GREGE,TRIM4#

main71931-47010-B2iZRR70..IDN201212-201612

W/O(LOCK),DK.GRAY,TRIM2#

sub71931-42020

main71931-47010-E4iZRR70200808-201004

W/O(LOCK),GREGE,TRIM4#

sub71931-42020

71H75BCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEATBACK FRAME)

main71875-58060iZRR70201004-201612

71H76COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71876-58040-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71876-58040-E1iZRR70200808-201004

GREGE,TRIM4#

71H76ACOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEATBACK FRAME)

main71876-58060iZRR70200808-201004

72143BBRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)

main72143-28120×2iZRR70200808-201004

72462BCOVER, VERTICAL ADJUSTER RH

main72462-60010-B3iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main72462-60010-E2iZRR70200808-201004

GREGE,TRIM4#

72477ASPACER, VERTICAL ADJUSTER

main72477-52010-C0iZRR70201004-201612

BLACK

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-60020-B3iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main72494-60020-E2iZRR70200808-201004

GREGE,TRIM4#

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-58030-B0iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main72525-58030-E3iZRR70201004-201401

GREGE,TRIM4#

72820ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

main72890-28B90-E3iZRR70..IDN201212-201401

GREGE,TRIM4#

main72890-28C10-E0iZRR70200808-201004

GREGE,TRIM4#

main72890-28E30-E1iZRR70201004-201210

GREGE,TRIM4#

main72890-28E30-E2iZRR70..GEN201210-201401

GREGE,TRIM4#

main72890-28E10-C3supersedes 72890-28B90-B3iZRR70..IDN201311-201612

INDONESIA DX,BLACK,TRIM2#

72848KCAP, SEAT ARMREST, NO.1(FOR RH SEAT)

main71877-26020-B9iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main71877-26020-E2iZRR70200808-201004

GREGE,TRIM4#

main72848-28030-E1iZRR70..GEN201004-201401

GREGE,TRIM4#

sub72848-0E020

7270228080BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28080

9011910927

main90119-10927

9016740044

main90167-40044

9016850078

main90168-50078

9017908233

main90179-08233

9020115015

main90201-15015

9354055012

main93540-55012

9454201400

main94542-01400

37 parts on this diagram · 3 diagrams in section
