SEAT BELT

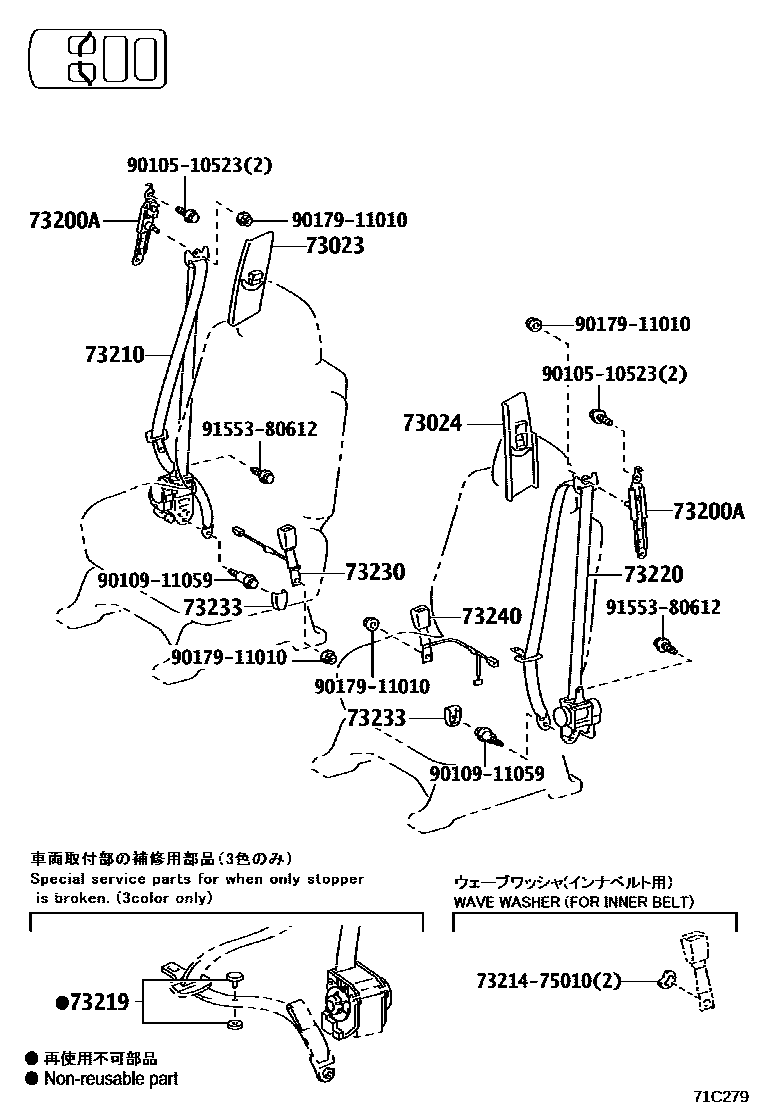

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-30010-B2i201212-201612
LT.GRAY,TRIM2#
sub73023-30010
main73023-30010-E0i200808-201401
GREGE,TRIM4#
sub73023-30010
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-30010-B2i201212-201612
LT.GRAY,TRIM2#
sub73024-30010
main73024-30010-E0i200808-201401
GREGE,TRIM4#
sub73024-30010
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-53010i200808-201401
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-28350-E0i200808-201004
GREGE,TRIM4#
sub73210-28351
main73210-28351-B1i201212-201612
BLACK,TRIM2#
main73210-28351-E0i201004-201401
GREGE,TRIM4#
73219STOPPER, TONGUE PLATE
main73219-28010i200907-201004
BLACK
main73219-28020i200907-201004
GREGE
main73219-33010i201004-201401
BLACK
main73219-33020i201004-201401
GRAY
main73219-33030i201004-201401
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-28750-E0i200808-201004
GREGE,TRIM4#
sub73220-28751
main73220-28751-B1i201212-201612
BLACK,TRIM2#
main73220-28751-E0i201004-201401
GREGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-28510-C0i201212-201612
BLACK,TRIM2#
main73230-28510-E0i201004-201401
GREGE,TRIM4#
main73230-28530-E0i200808-201004
GREGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-52010-C0i201212-201612
BLACK,TRIM2#
sub73233-60020
sub73233-0C010
main73233-52010-E3i200808-201401
GREGE,TRIM4#
sub73233-60020
sub73233-0C010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-28520-E0i200808-201004
GREGE,TRIM4#
main73230-28550-C0i201212-201612
BLACK,TRIM2#
main73230-28550-E0i201004-201401
GREGE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010911059
main90109-11059
9017911010
main90179-11010
9155380612
main91553-80612

14 parts on this diagram · 6 diagrams in section
