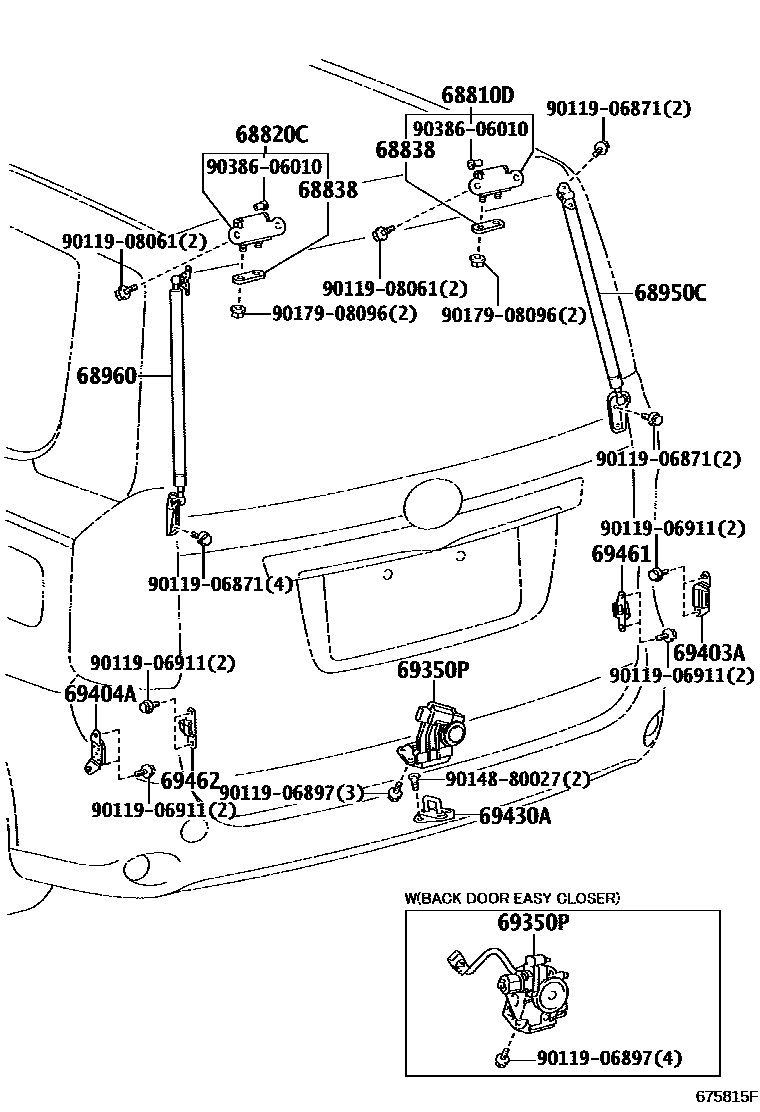

BACK DOOR LOCK & HINGE

0001 1 0002 1W(POWOR BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-21050iZRR70200808-201004

main68810-21051iZRR70201602

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZRR70200808-201004

main68810-21051iZRR70201602

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020×2iZRR70200808-201004

68950CSTAY ASSY, BACK DOOR, RH

main68950-28380iZRR70200808-201001

main68950-28381iZRR70201002-201004

main68950-28382iZRR70..E..GEN201209-201401

main68950-28391iZRR70..S201004-201208

main68950-28392iZRR70..S201209-201401

68960STAY ASSY, BACK DOOR, LH

main68960-28380iZRR70200808-201001

main68960-28381iZRR70201002-201004

main68960-28382iZRR70..IDN201209

main68960-28391iZRR70..S201004-201208

main68960-28392iZRR70..S201209-201401

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iZRR70200808-201004

main69350-28151iZRR70201602-201612

main69350-28160iZRR70..S201004-201401

sub69350-28161

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-28030iZRR70..GEN201004-201401

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-28020iZRR70200808-201004

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-28050iZRR70..IDN201004

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-28010iZRR70200808-201004

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-28010iZRR70200808-201004

9011906871

main90119-06871

9011906897

main90119-06897

9011906911

main90119-06911

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

9038606010

main90386-06010

18 parts on this diagram · 2 diagrams in section
