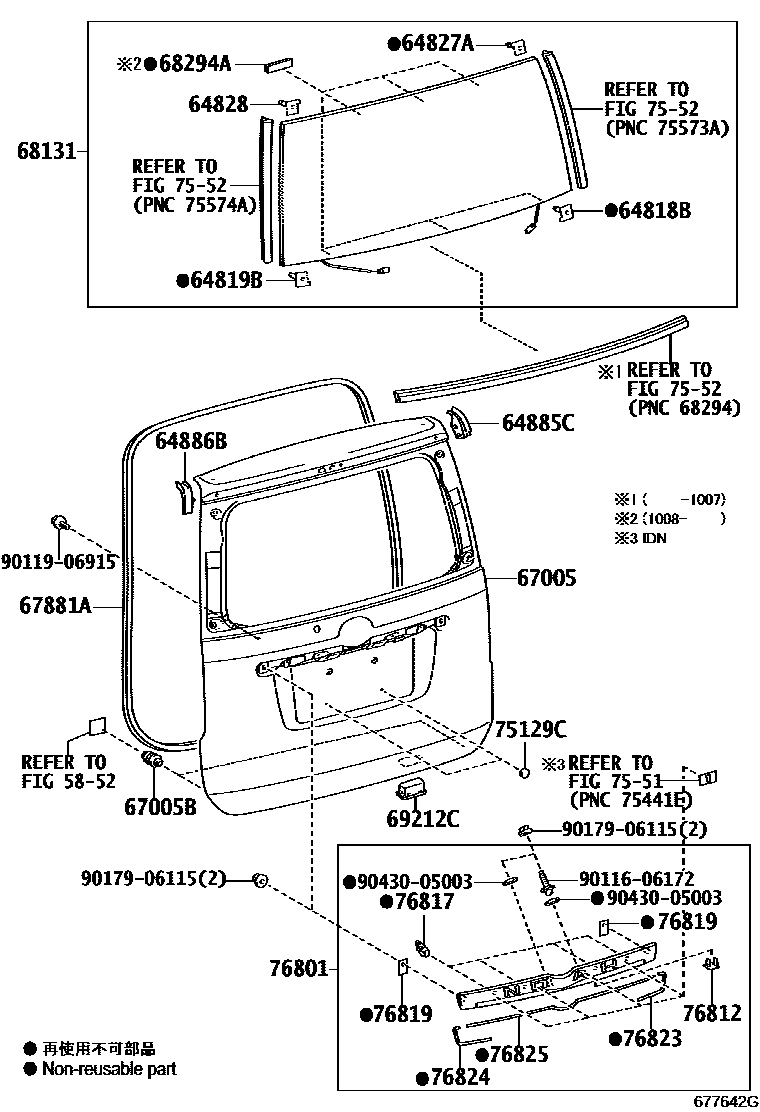

BACK DOOR PANEL & GLASS
5852
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*UVCT,T=3.1,GREEN
68294ADAM, BACK DOOR GLASS ADHESIVE
69212CHANDLE, BACK DOOR INSIDE
BLACK,TRIM4#
BLACK,TRIM2#,4#
75129CCUSHION, REAR LICENCE PLATE
7551
7552
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PLATED
PLATED
76812GARNISH, BACK DOOR, OUTSIDE LOWER
76817CLIP, BACK DOOR OUTSIDE GARNISH
76819SEAL, BACK DOOR OUTSIDE GARNISH
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
9011606172
main90116-06172
9011906915
main90119-06915
9017906115
main90179-06115
9043005003
main90430-05003
27 parts on this diagram · 2 diagrams in section
