SLIDE ROLLER & RAIL
6755
68020AGUIDE ASSY, SLIDE DOOR CABLE, RH
HONG KONG SPEC
68030GUIDE ASSY, SLIDE DOOR CABLE
HONG KONG SPEC
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68345COVER, SLIDE DOOR CENTER RAIL
68346ACOVER, SLIDE DOOR CENTER RAIL, LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
68394APLATE, SLIDE DOOR LOWER RAIL, RH
68399PLATE, SLIDE DOOR LOWER RAIL, LH
68453ABRACKET, SLIDE DOOR RAIL COVER, NO.2 RH
HONG KONG SPEC,FRONT
FRONT
HONG KONG SPEC,REAR
REAR
68454ABRACKET, SLIDE DOOR RAIL COVER, NO.2 LH
FRONT
HONG KONG SPEC,FRONT
REAR
HONG KONG SPEC,REAR
69415STOPPER, SLIDE DOOR DOWN FEMALE
sub69415-58020
69418STOP, SLIDE DOOR OPEN
69419BSTOP, SLIDE DOOR OPEN, LH
85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH
HONG KONG SPEC
85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
HONG KONG SPEC
6548728010CLIP, CORNER PROTECTOR
main65487-28010
6855558010BOLT, DOOR STAY
main68555-58010
7539652020CLIP, OUTSIDE MOULDING, NO.2
main75396-52020
9010508187
main90105-08187
9010508400
main90105-08400
9011906595
main90119-06595
9011906779
main90119-06779
9011908B06
main90119-08B06
9014880049
main90148-80049
9155180812
main91551-80812
9155380610
main91553-80610
9162160814
main91621-60814
9164180818
main91641-80818
9167380616
main91673-80616

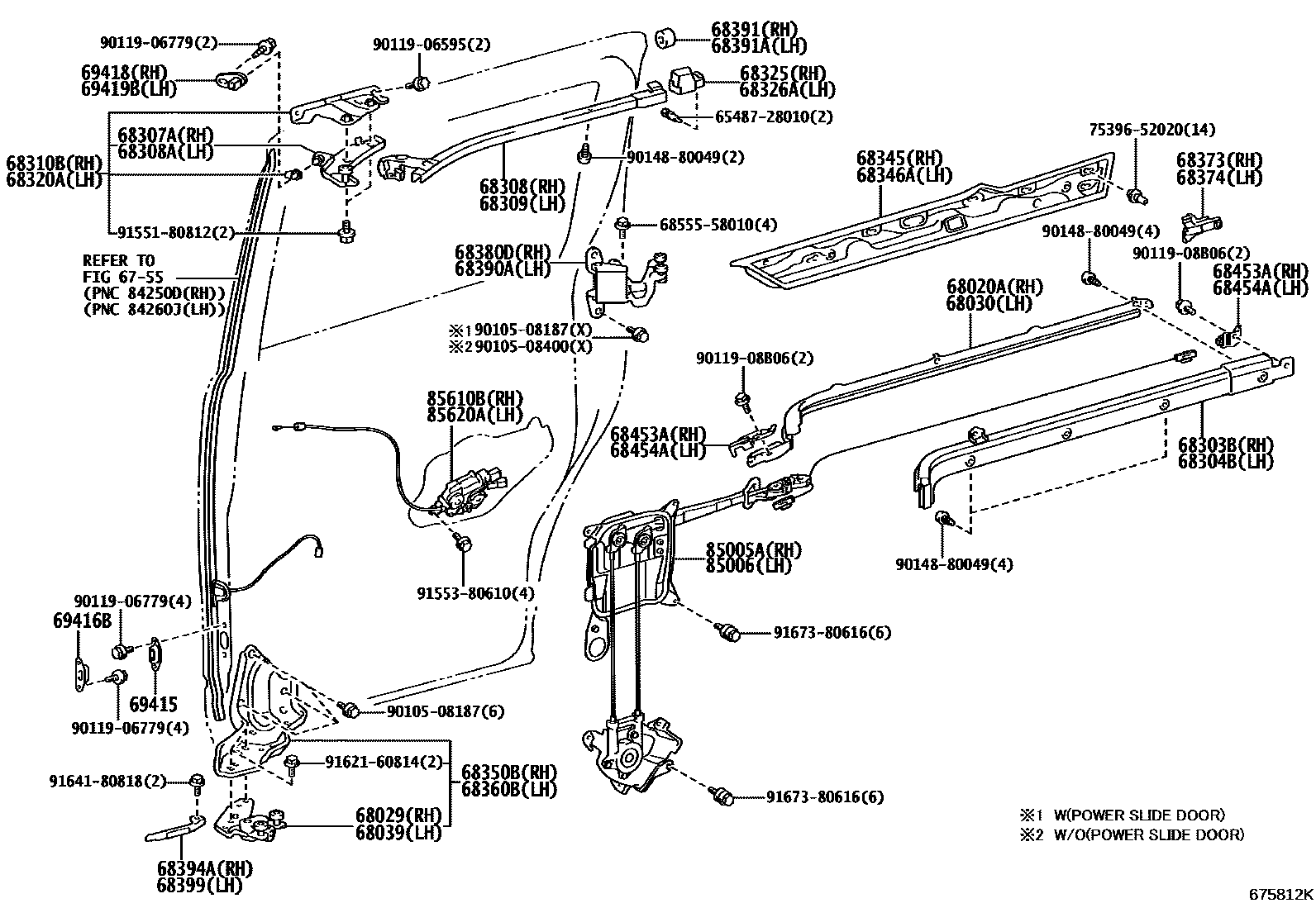

51 parts on this diagram · 1 diagram in section
