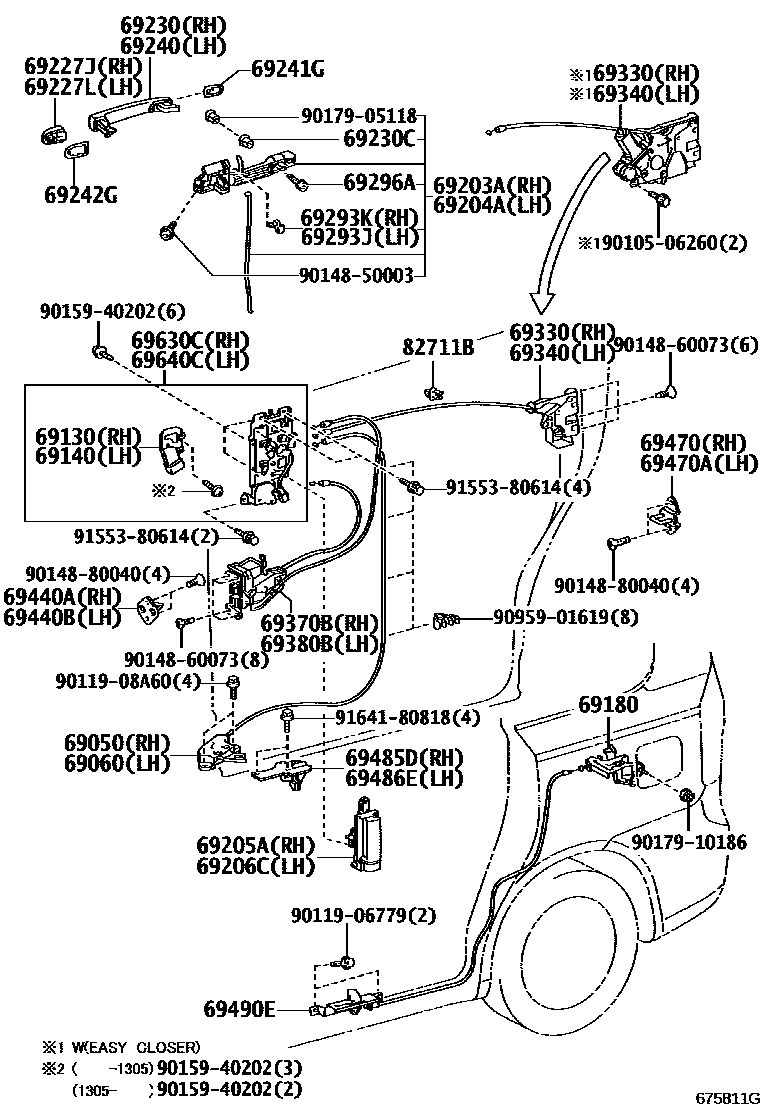

REAR DOOR LOCK & HANDLE
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
HONG KONG SPEC
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
INDONESIA DX,BLACK,TRIM2#,4#,W(CHILD LOCK LEVER)
sub69281-58020
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
INDONESIA DX,BLACK,TRIM2#,4#,W(CHILD LOCK LEVER)
sub69282-58020
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH
69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH
69296ASCREW, DOOR INSIDE HANDLE
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486ESTRIKER, SLIDE DOOR OPEN, LH
69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
HONG KONG SPEC
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
82711BCLAMP, WIRING HARNESS
9010506260
main90105-06260
9011906779
main90119-06779
9011908A60
main90119-08A60
9014850003
main90148-50003
9014860073
main90148-60073
9014880040
main90148-80040
9015940202
main90159-40202
9017905118
main90179-05118
9017910186
main90179-10186
9095901619
main90959-01619
9155380614
main91553-80614
9164180818
main91641-80818
45 parts on this diagram · 1 diagram in section
