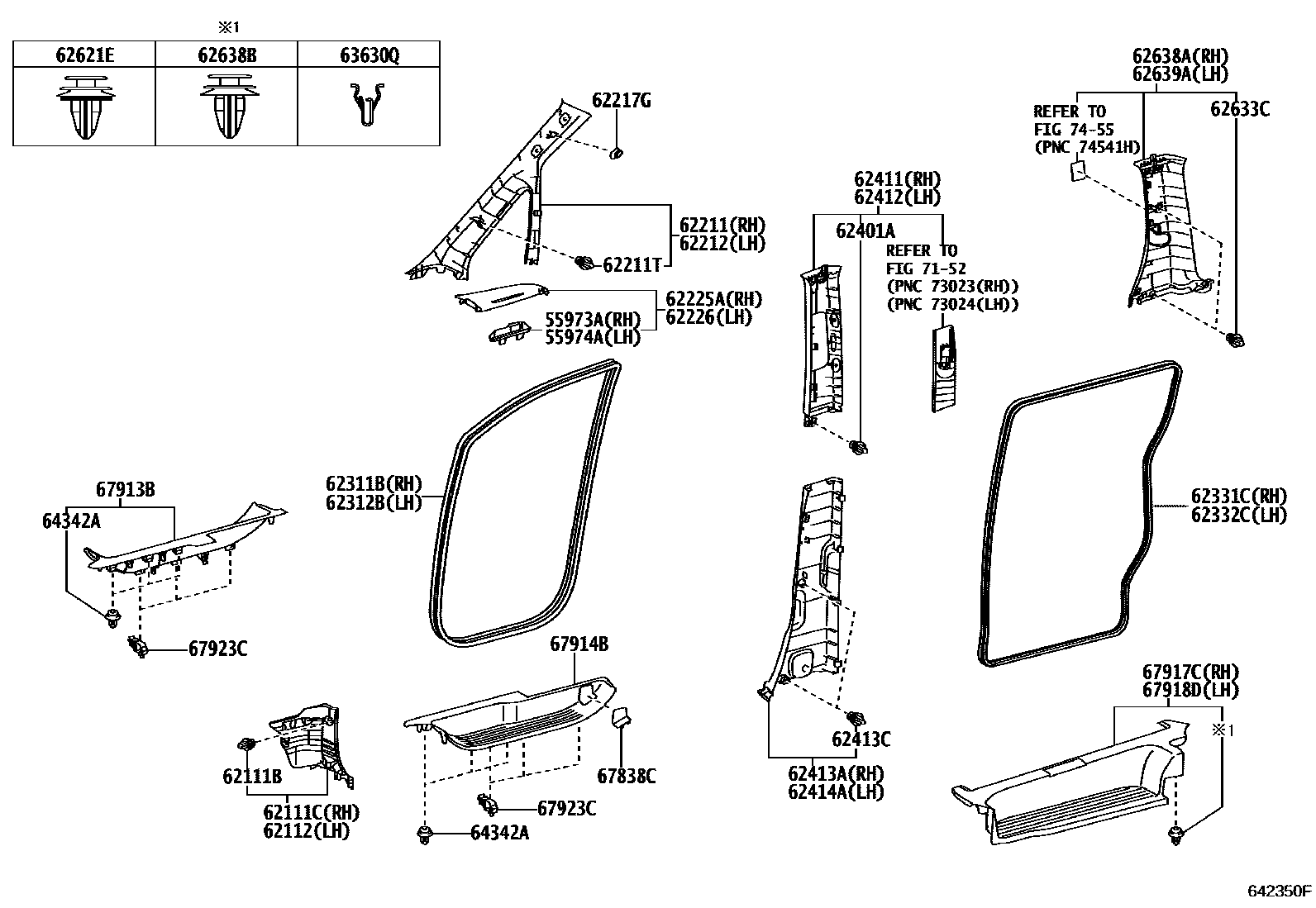

INSIDE TRIM BOARD

0001 1 0002 1

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-28070iZRR70¥1,050200808-201401

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-28070iZRR70¥1,050200808-201401

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iZRR70..GEN¥90200808-201401

62111CBOARD, COWL SIDE TRIM, RH

main62111-28180-E0iZRR70200808-201008

GREGE,TRIM4#

main62111-28181-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62111-28181-E0iZRR70201008-201401

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-28200-E0iZRR70200808-201008

GREGE,TRIM4#

main62112-28201-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62112-28201-E0iZRR70201008-201401

GREGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-28080-B0iZRR70..IDN201212-201612

LT.GRAY,TRIM2#

main62210-28080-E0iZRR70200808-201401

GREGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10167iZRR70..GEN¥90200808-201401

62212GARNISH, FRONT PILLAR, LH

main62220-28080-B0iZRR70..IDN201212-201612

LT.GRAY,TRIM2#

main62220-28080-E0iZRR70200808-201401

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-35010iZRR70¥650200808-201401

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-28040-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62225-28040-E0iZRR70200808-201401

GREGE,TRIM4#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-28040-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62226-28040-E0iZRR70200808-201401

GREGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-28110-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62311-28110-E0iZRR70200808-201401

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-28110-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62312-28110-E0iZRR70200808-201401

GREGE,TRIM4#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main67871-28070-E0iZRR70200808-200809

GREGE,TRIM4#

sub67871-28071¥15,200

main67871-28071-E0iZRR70200809-200911

GREGE,TRIM4#

sub67871-28072¥15,200

main67871-28072-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67871-28072-E0iZRR70200912-201401

GREGE,TRIM4#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main67872-28120-E0iZRR70200808-200809

GREGE,TRIM4#

sub67872-28121¥15,200

main67872-28121-E0iZRR70200809-200911

GREGE,TRIM4#

sub67872-28122¥15,200

main67872-28122-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67872-28122-E0iZRR70200912-201401

GREGE,TRIM4#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161iZRR70..GEN¥90200808-201401

62411GARNISH, CENTER PILLAR, RH

main62410-28090-B0iZRR70..IDN201212-201612

LT.GRAY,TRIM2#

main62410-28090-E0iZRR70200808-201401

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-28090-B0iZRR70..IDN201212-201612

LT.GRAY,TRIM2#

main62420-28090-E0iZRR70200808-201401

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-28090-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62413-28090-E0iZRR70200808-201401

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iZRR70..GEN¥90200808-201401

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-28120-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main62414-28120-E0iZRR70200808-201401

GREGE,TRIM4#

62621ECLIP

main90467-09206iZRR70..GEN¥80200808-201401

62633CCLIP (FOR QUARTER TRIM GARNISH)

main90467-10161iZRR70¥90200808-201004

62638AGARNISH, QUARTER PILLAR, RH

main62638-28230-E0iZRR70200808-200812

GREGE,TRIM4#

main62638-28231-E0iZRR70200812-201004

GREGE,TRIM4#

main62638-28290-B0iZRR70..IDN201212-201403

LT.GRAY,TRIM2#

main62638-28290-E0iZRR70201004-201401

GREGE,TRIM4#

main62638-28291-B0iZRR70201403-201612

LT.GRAY,TRIM2#

62638BCLIP

main67771-28150iZRR70..GEN¥100201209-201401

main90467-10161iZRR70¥90200808-201208

62639AGARNISH, QUARTER PILLAR, LH

main62639-28260-E0iZRR70200808-200812

GREGE,TRIM4#

main62639-28261-E0iZRR70200812-201004

GREGE,TRIM4#

main62639-28310-B0iZRR70..IDN201212-201403

LT.GRAY,TRIM2#

main62639-28310-E0iZRR70201004-201401

GREGE,TRIM4#

main62639-28311-B0iZRR70201403-201612

LT.GRAY,TRIM2#

63630QCLIP

main90468-05125iZRR70..IDN¥80201004-201401

64342ACLIP

main90467-09206iZRR70¥80200808-201004

67838CCOVER, FRONT DOOR SERVICE HOLE, NO.4 LH

main67925-28030-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67925-28030-E0iZRR70200808-201401

GREGE,TRIM4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-28060-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67913-28060-E0iZRR70200808-201401

GREGE,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-28060-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67914-28060-E0iZRR70200808-201401

GREGE,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-28120-E0iZRR70200808-201004

GREGE,TRIM4#

main67917-28150-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67917-28150-E0iZRR70201004-201401

GREGE,TRIM4#

67918DPLATE, REAR DOOR SCUFF, LH

main67918-28110-E0iZRR70200808-201004

GREGE,TRIM4#

main67918-28150-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67918-28150-E0iZRR70201004-201401

GREGE,TRIM4#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-28040iZRR70¥840200808-201004

7152

7455

36 parts on this diagram · 2 diagrams in section
