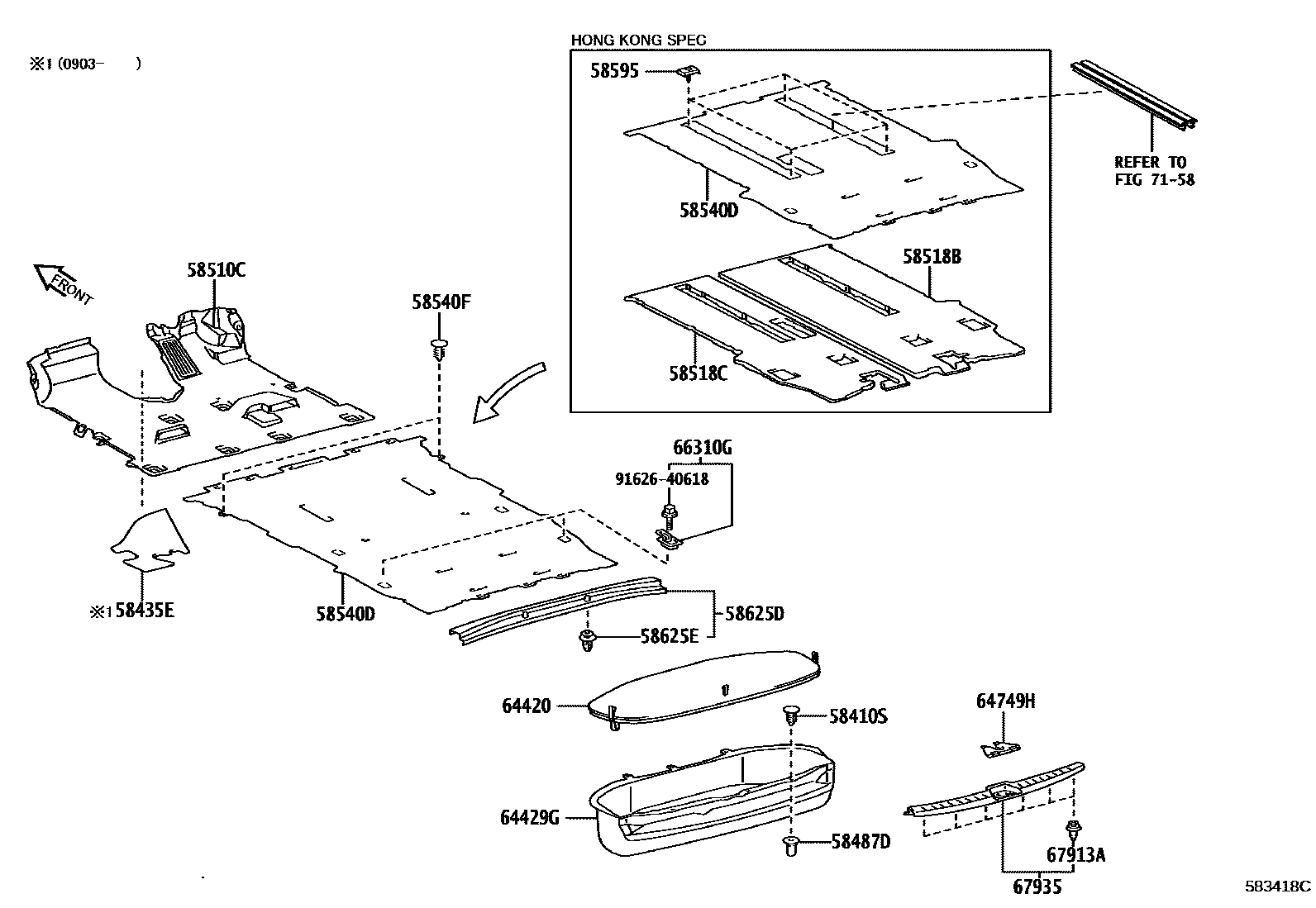

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58410SCLIP, DECK BOARD

main67771-26230-E0×6iZRR70201004-201612

CREAM YELLOW

58435ESILENCER, FRONT FLOOR, CENTER

main58435-28080iZRR70200903-201004

58487DCAP, DECK BOARD SERVICE HOLE

main67772-44010×6iZRR70..GEN201004-201401

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-28E80-E1iZRR70200808-201004

GREGE,TRIM4#

main58510-28E81-E1iZRR70201004-201006

GREGE,TRIM4#

main58510-28E82-B3iZRR70..IDN201212-201612

BLACK,TRIM2#

main58510-28E82-E1iZRR70201007-201401

GREGE,TRIM4#

58518BMAT, REAR FLOOR, NO.2

main58518-28E30iZRR70..S;ZRR70..IDN201004-201304

main58518-28E31iZRR70..S;ZRR70..IDN201305

main58518-28E40iZRR70..E..GEN201004-201304

main58518-28E41iZRR70..E..GEN201305-201401

main58518-28A60iZRR70200808-201004

HONG KONG SPEC

sub58518-28A61

58518CMAT, REAR FLOOR, NO.2

main58518-28E70iZRR70201004-201304

main58518-28E71iZRR70201305

main58518-28A40iZRR70200808-201004

HONG KONG SPEC

sub58518-28A41

58540DCARPET ASSY, FLOOR, REAR

main58540-28D10-E0iZRR70..S;ZRR70..IDN201004-201401

GREGE,TRIM4#

main58540-28D20-E0iZRR70..E..GEN201004-201401

GREGE,TRIM4#

main58540-28F00-B0iZRR70..IDN201212-201612

GRAY,TRIM2#

main58540-28C00-E2supersedes 58540-28B80-E2iZRR70200808-201004

HONG KONG SPEC,GREGE,TRIM4#

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-05164-E2×2iZRR70200808-201004

GREGE

58595MOULDING, FLOOR CARPET, NO.3

main58595-28080-B1×4iZRR70..IDN201212-201612

DK.GRAY,TRIM2#,TYPE A:REFER ILLUST.

main58595-28080-E0×3iZRR70..S;ZRR70..IDN201004-201401

GREGE,TRIM4#,TYPE A:REFER ILLUST.

main58595-28090-E0iZRR70..E..GEN201004-201401

GREGE,TRIM4#,TYPE B:REFER ILLUST.

58625DPLATE, REAR FLOOR MAT, NO.1

main58625-28060-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main58625-28060-E0iZRR70200808-201004

GREGE,TRIM4#

58625ECLIP(FOR REAR FLOOR MAT PLATE)

main90467-10161×3iZRR70200808-201004

64420LID, LUGGAGE ROOM BOX

main64420-28080-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main64420-28080-E0iZRR70201004-201401

GREGE,TRIM4#

64429GBOX, LUGGAGE COMPARTMENT TRIM

main64429-28060iZRR70200808-201004

64749HCOVER, BACK DOOR STRIKER

main64749-28020-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main64749-28020-E0iZRR70200808-201004

GREGE,TRIM4#

66310GHOOK ASSY, ROPE

main66310-28060-B0×2iZRR70..IDN201212-201612

DK.GRAY,TRIM2#

main66310-28060-E1×2iZRR70201004-201401

GREGE,TRIM4#

67913ACLIP(FOR SCUFF PLATE)

main90467-10161×6iZRR70..GEN201004-201401

67935PLATE, BACK DOOR SCUFF

main67935-28080-C0iZRR70..IDN201212-201612

BLACK,TRIM2#

main67935-28080-E0iZRR70200808-201004

GREGE,TRIM4#

7158

9162640618

main91626-40618

19 parts on this diagram · 2 diagrams in section
