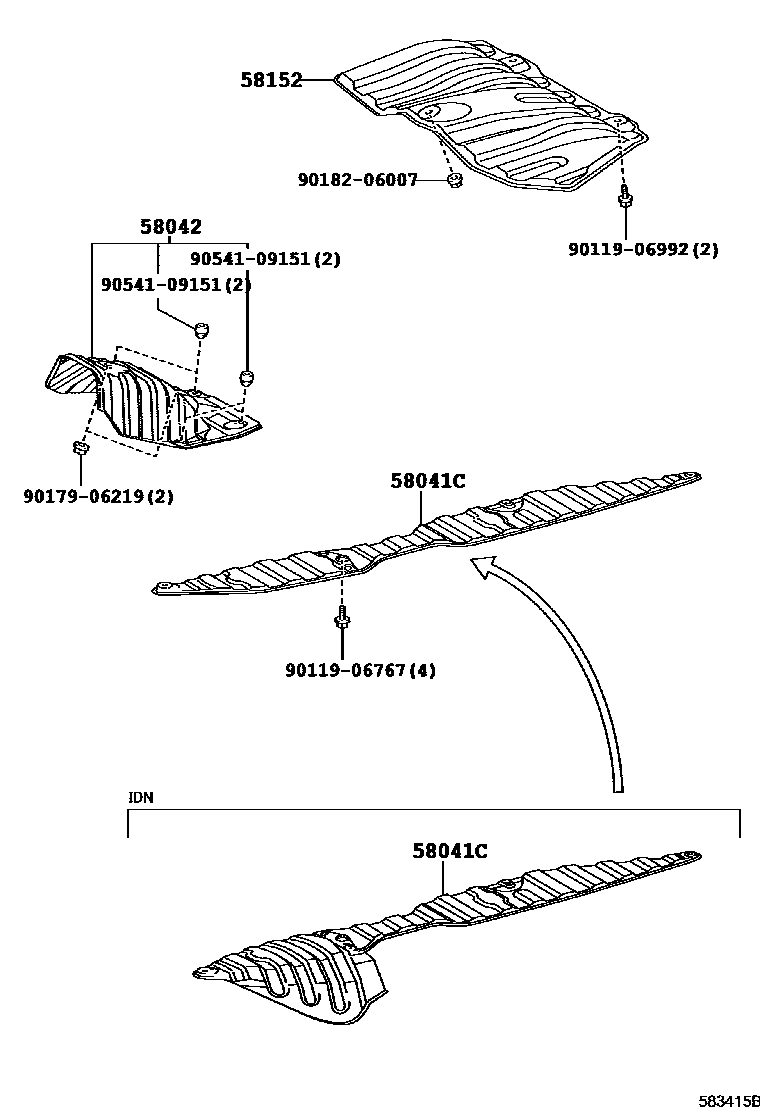

FLOOR INSULATOR

58041CINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-28030iZRR70..IDN201212

main58041-28040iZRR70..GEN200808-201401

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-28030iZRR70..GEN200808-201401

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-28070iZRR70200808-201401

9011906767

main90119-06767

9011906992

main90119-06992

9017906219

main90179-06219

9018206007

main90182-06007

9054109151

main90541-09151

8 parts on this diagram · 1 diagram in section
