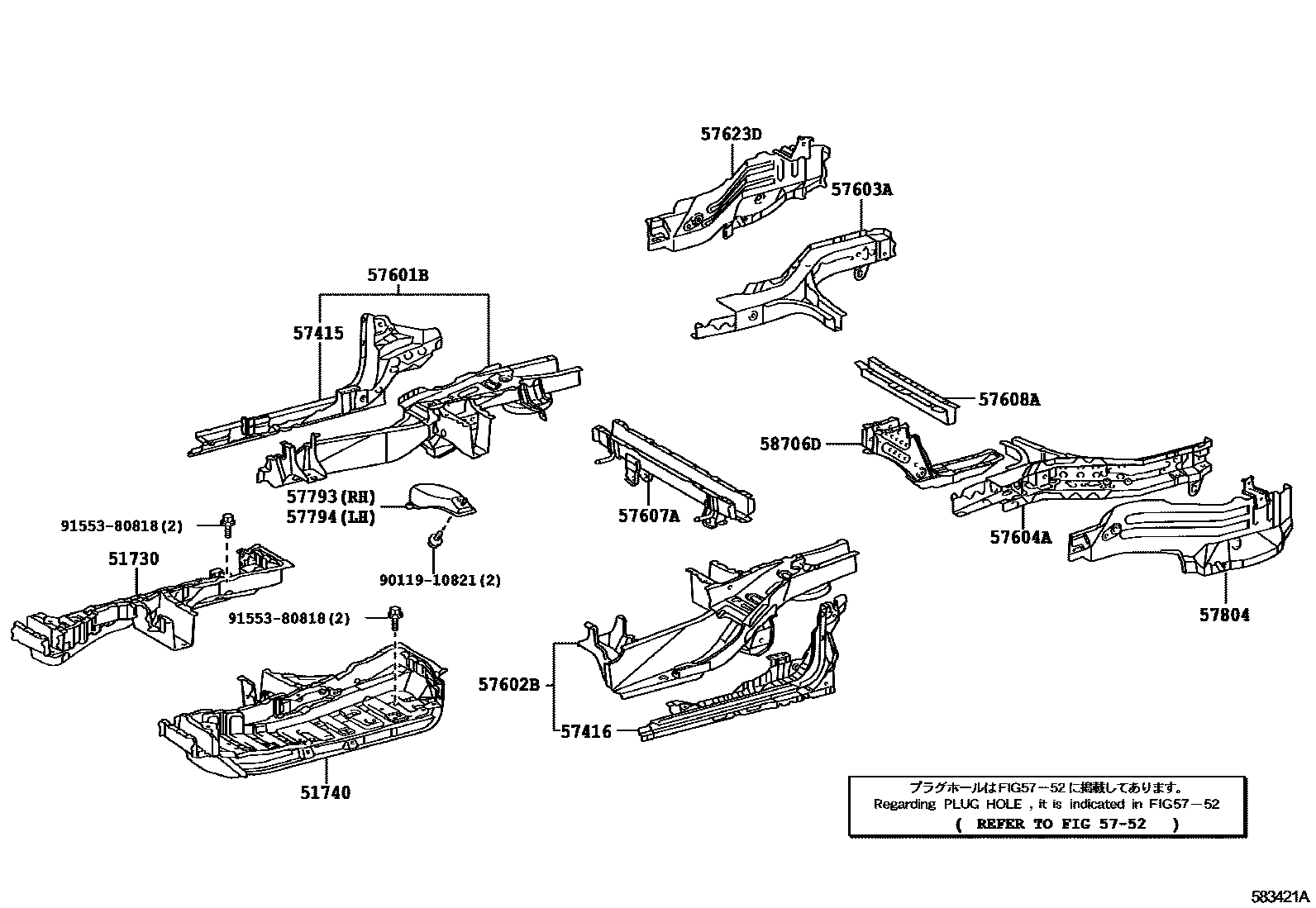

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1UNDER COVER

51730STEP ASSY, REAR FLOOR, RH

main51730-28130iZRR70200808-201004

main51730-28150iZRR70..IDN201004-201401

51740STEP ASSY, REAR FLOOR, LH

main51740-28140iZRR70200808-201401

57415RAIL, FLOOR SIDE, REAR RH

main57047-28111iZRR70..GEN200808-201401

57416RAIL, FLOOR SIDE, REAR LH

main57048-28111iZRR70200808-201401

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57041-28110iZRR70200808-201004

main57041-28120iZRR70..GEN201004-201401

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57042-28040iZRR70200808-201004

main57042-28060iZRR70..GEN201004-201401

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-28100iZRR70200808-201001

sub57603-28101

main57603-28101iZRR70201001-201401

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-28071iZRR70..IDN201212

main57604-28080iZRR70200808-201001

sub57604-28081

main57604-28081iZRR70201001-201401

sub57604-28071

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28470iZRR70200808-201612

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57655-44020iZRR70200808-201612

57623DPLATE, REAR FLOOR SIDE MEMBER, RR RH

main57623-28030iZRR70200808-201612

57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1

main57793-28040iZRR70200808-201401

57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1

main57794-28040iZRR70200808-201401

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-28040iZRR70200808-201612

58706DBRACKET SUB-ASSY, JACK CARRIER, NO.1

main58706-44010iZRR70200808-201612

9011910821

main90119-10821

9155380818

main91553-80818

18 parts on this diagram · 3 diagrams in section
