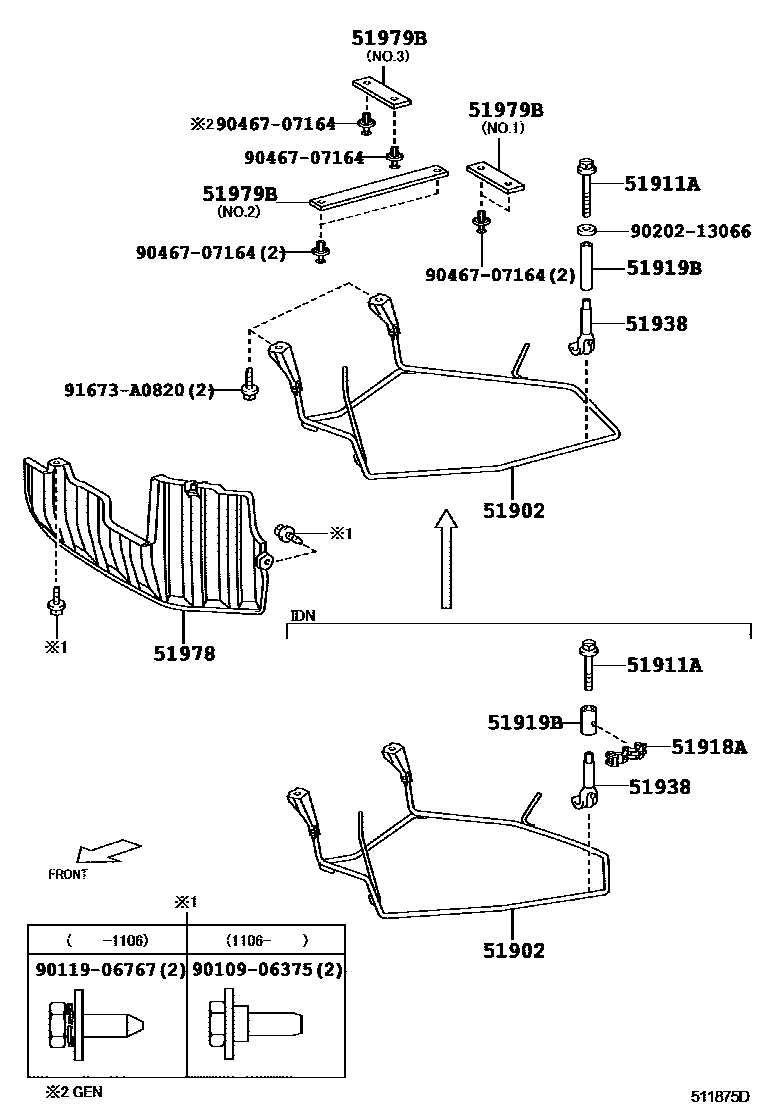

SPARE WHEEL CARRIER

51902CARRIER SUB-ASSY, SPARE WHEEL

main51903-28070iZRR70¥7,600200808-201401

main51903-28080iZRR70..IDN201212

51911ABOLT, SPARE WHEEL

main51911-28080iZRR70¥1,590200808-201401

main51912-28010iZRR70..IDN201212-201310

main90119-12424iZRR70..IDN201310

51918ASTOPPER, SPARE WHEEL CARRIER

main51918-26060iZRR70..IDN¥320201212

51919BSPACER, SPARE WHEEL CARRIER

main51919-28050iZRR70¥680200808-201401

main51919-28060iZRR70..IDN201212

51938LOCK, SPARE WHEEL CARRIER

main51930-28010iZRR70..IDN201212

main51938-44010iZRR70..GEN¥570200808-201401

51978PROTECTOR, SPARE WHEEL CARRIER

main51978-28020iZRR70¥4,630200808-201106

sub51978-28021¥4,620

sub90109-06375¥80

main51978-28021iZRR70..IDN¥4,620201106-201401

51979BCUSHION, SPARE WHEEL CARRIER PROTECTOR

main51979-28040iZRR70¥340200808-201004

NO.3:REFER ILLUST.,NO.1:REFER ILLUST.

main51979-28040iZRR70..IDN¥340201004-201401

NO.1:REFER ILLUST.

main51979-28050iZRR70¥560200808-201401

NO.2:REFER ILLUST.

main51979-28060iZRR70..IDN201212

NO.3:REFER ILLUST.

9010906375

main90109-06375¥80

9011906767

main90119-06767¥60

9020213066

main90202-13066¥140

9046707164

main90467-07164¥120

91673A0820

main91673-A0820¥80

12 parts on this diagram · 1 diagram in section
