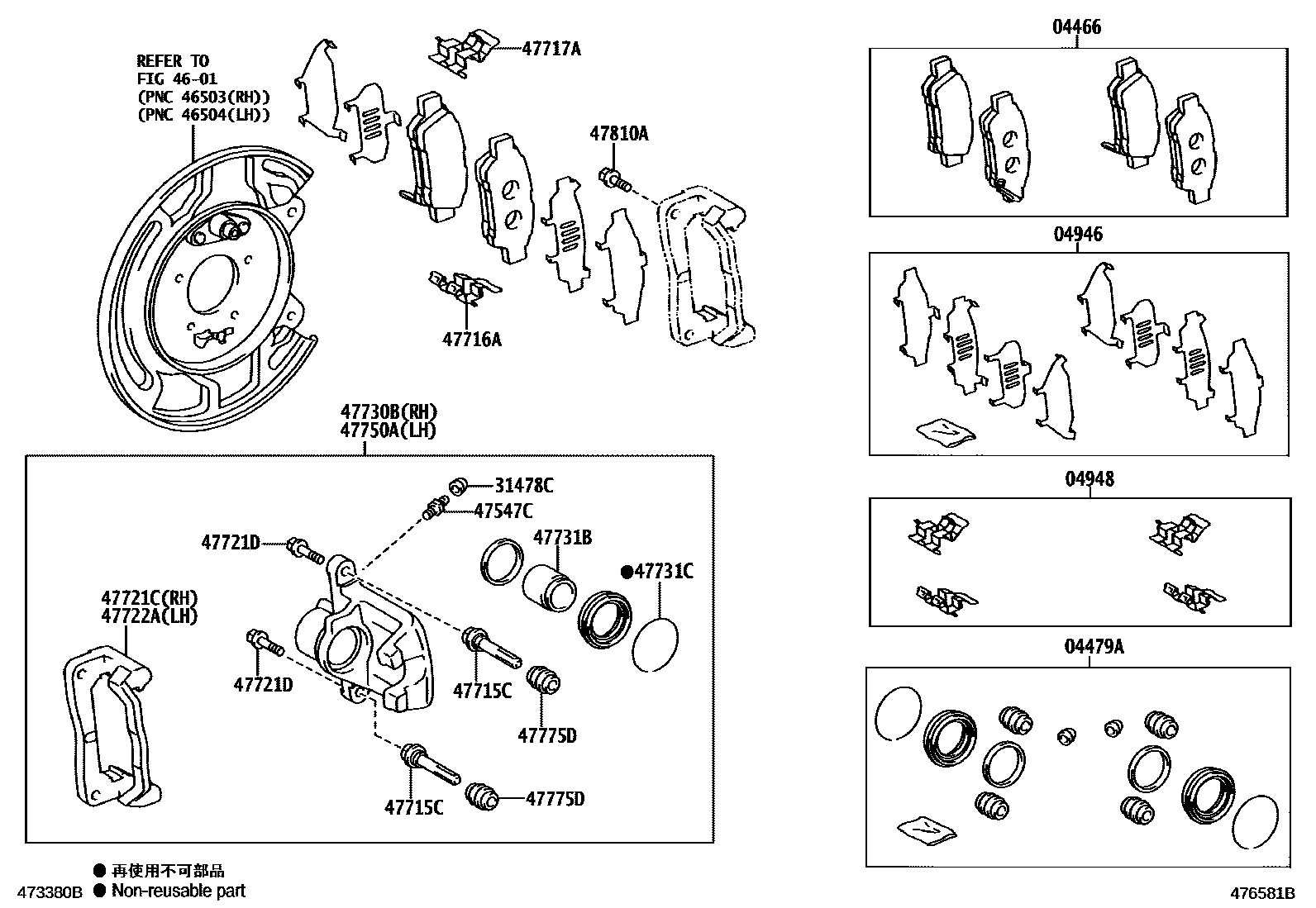

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-44010iZRR70..GEN201002-201401

MARK AK PA561

main04466-45010iZRR70200808-201001

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28090iZRR70..GEN201304-201401

main04479-28170iZRR70..GEN200808-201304

sub04479-28090

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-28020iZRR70200808-201401

04948FITTING KIT, DISC BRAKE, REAR

main04948-28010iZRR70..GEN200808-201401

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZRR70200808-201401

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZRR70200808-201401

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-52010iZRR70200808-201401

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-28030iZRR70200808-201401

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-28010iZRR70..GEN200808-201401

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-28020iZRR70..GEN200808-201401

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iZRR70200808-201401

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-28010iZRR70200808-201401

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-28270iZRR70200808-201401

47731BPISTON, REAR DISC BRAKE

main47731-28090iZRR70..GEN200808-201401

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-53001iZRR70..GEN200808-201401

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-28270iZRR70200808-201401

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-02130iZRR70..GEN201304-201401

main47775-52010iZRR70200808-201304

sub47775-02130

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12185iZRR70200808-201401

19 parts on this diagram · 1 diagram in section
