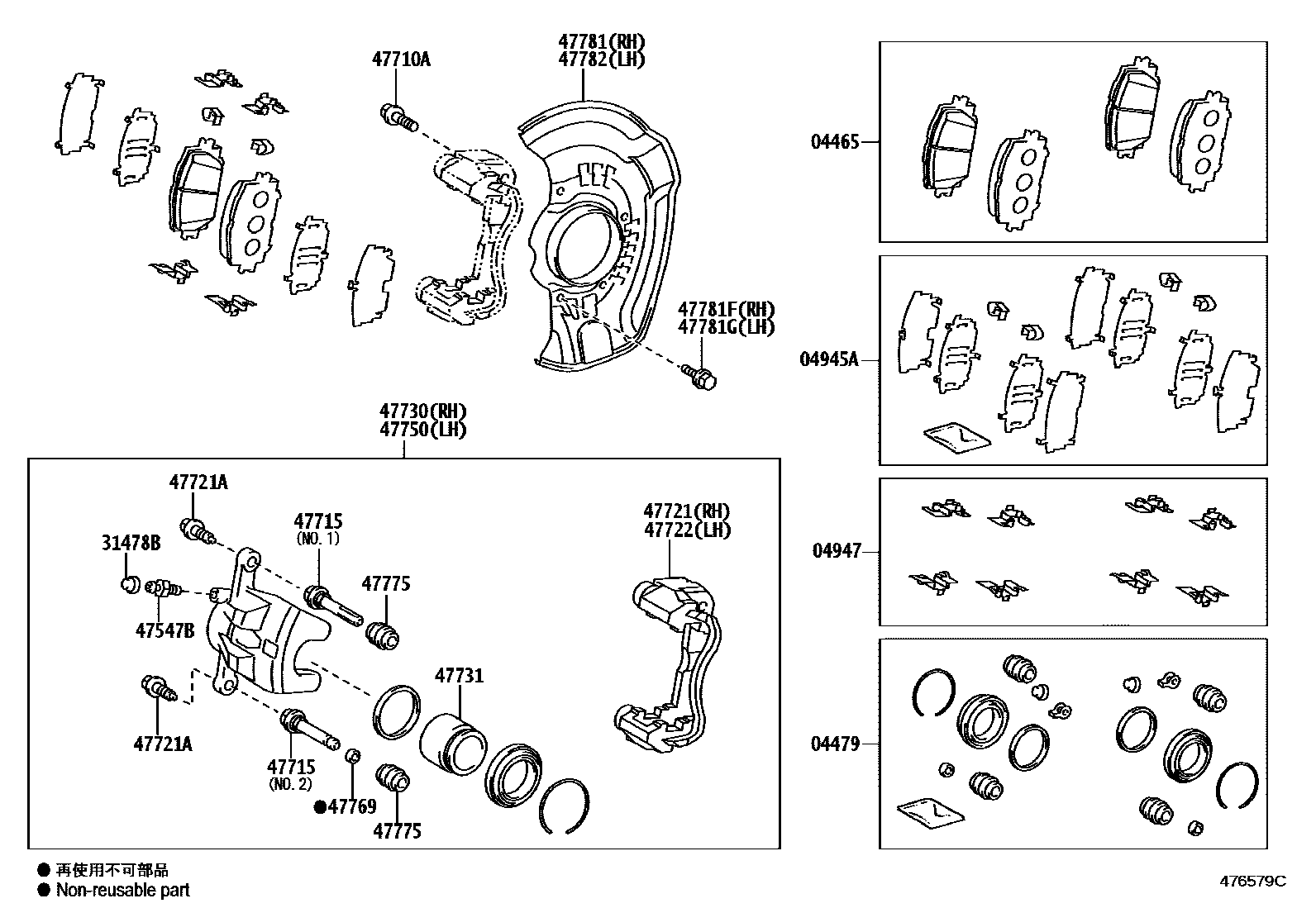

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42160iZRR70200808-201309

MARK ADVICS PV565H

sub04465-42200

main04465-42200iZRR70..GEN201310-201401

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iZRR70200808-201401

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-12100iZRR70200808-200905

sub04945-12110

main04945-12110iZRR70200905-201311

sub04945-12111

main04945-12111iZRR70201311-201612

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZRR70200808-201401

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZRR70200808-201401

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRR70200808-201401

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRR70200808-201612

*12-1.25PX29.5-23

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-12A10iZRR70200808-201401

NO.2

main47715-52190iZRR70..GEN200808-201401

NO.1

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-28580iZRR70..GEN200808-201401

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZRR70200808-201401

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-28580iZRR70200808-201401

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28580iZRR70200808-201401

47731PISTON, FRONT DISC BRAKE

main47731-12A70iZRR70200808-201401

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28580iZRR70200808-201401

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZRR70200808-201401

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190iZRR70200808-201004

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28240iZRR70200808-201612

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227iZRR70200808-201612

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227iZRR70200808-201612

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28230iZRR70200808-201612

20 parts on this diagram · 1 diagram in section
