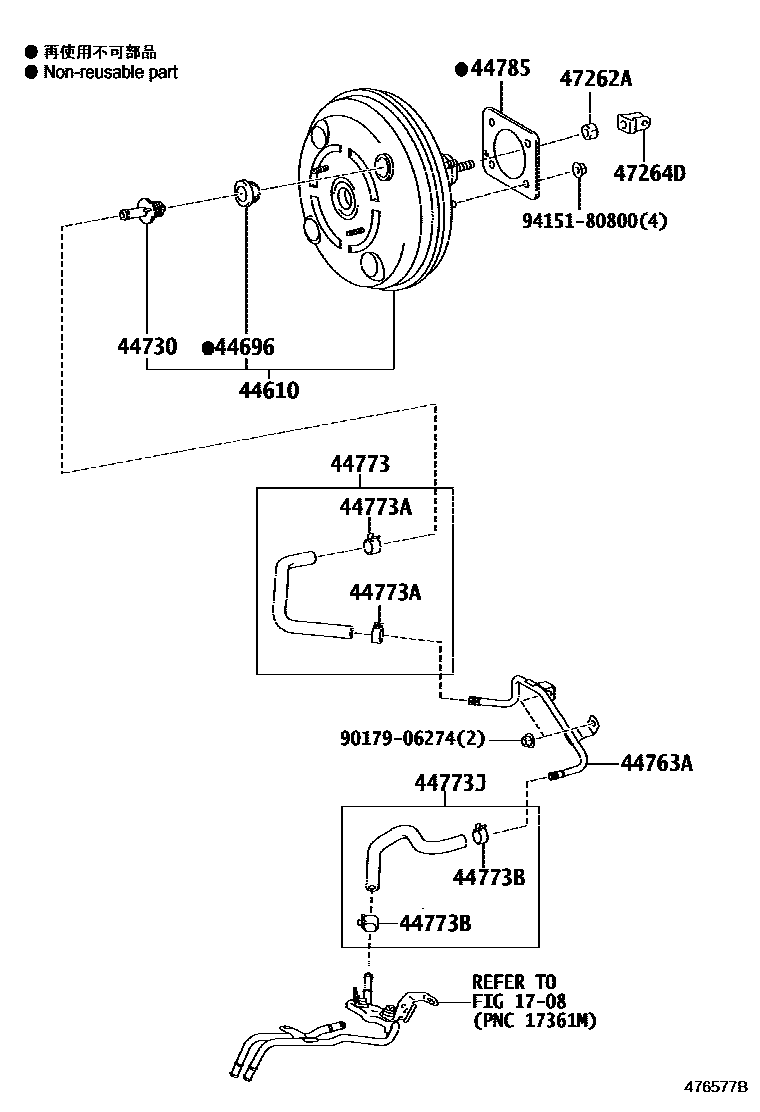

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1708

44610BOOSTER ASSY, BRAKE

main44610-28B21iZRR70200808-201004

main44610-28B31iZRR70..IDN201212

main44610-28B50iZRR70..GEN201004-201401

44696GROMMET, CHECK VALVE

main90480-24439iZRR70..GEN200808-201401

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iZRR70200808-201004

44763ATUBE, HOSE TO HOSE, NO.1

main44763-28150iZRR70..GEN200808-201401

44773HOSE, VACUUM, NO.2

main44770-28130iZRR70..IDN200808-201401

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

main90467-16014iZRR70..GEN201212-201401

main96133-41500iZRR70200808-201211

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main90467-16014iZRR70..GEN201212-201401

main96133-41500iZRR70200808-201211

44773JHOSE, VACUUM, NO.3

main44790-28020iZRR70..GEN200808-201401

44785GASKET, BRAKE BOOSTER

main44785-12040iZRR70..GEN201008-201401

main44785-28010iZRR70200808-201007

sub44785-12040

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main94120-41000iZRR70200808-201401

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iZRR70200808-201401

9017906274

main90179-06274

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
