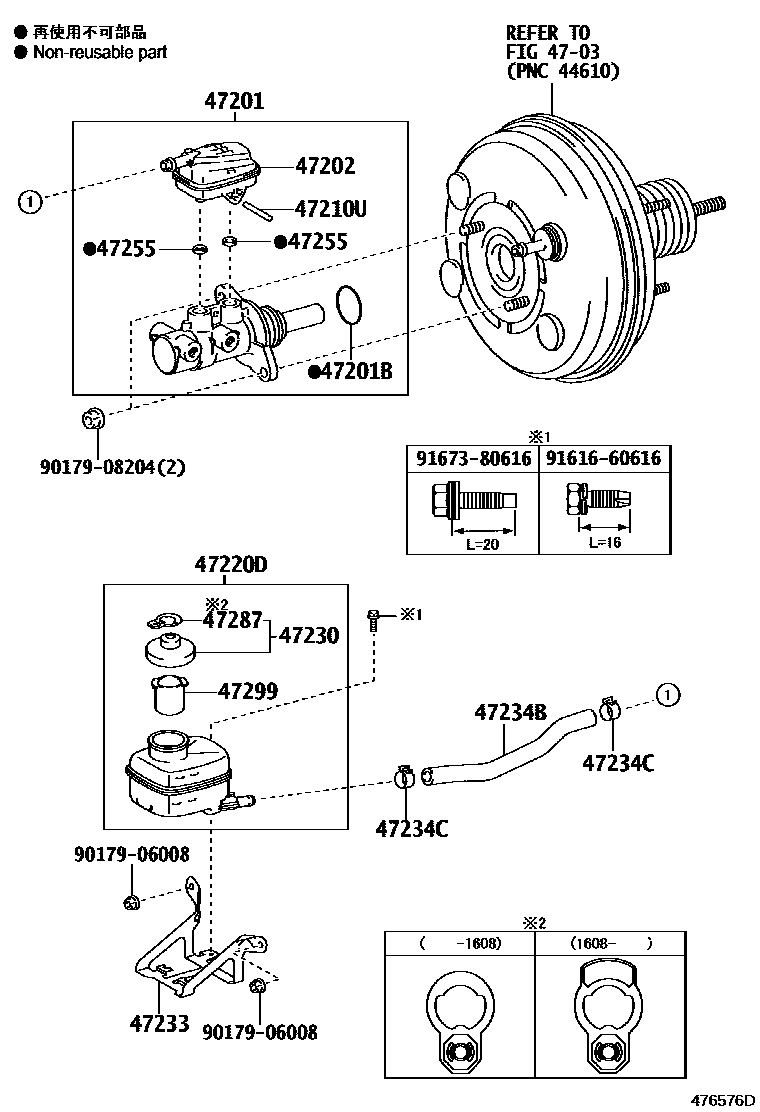

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28710iZRR70200808-201202

sub47201-28711

main47201-28711iZRR70201203-201204

sub47201-28712

main47201-28712iZRR70201205

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRR70200808-201401

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28330iZRR70200808-201401

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iZRR70200808-201401

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-28320iZRR70200808-201401

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZRR70200808-201401

47233BRACKET, RESERVOIR

main47233-28160iZRR70200808-201401

47234BTUBE, RESERVOIR, NO.1

main47234-28200iZRR70..GEN200808-201401

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iZRR70200808-201304

main96136-41801iZRR70..GEN201305-201401

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZRR70..GEN200808-201401

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iZRR70201608

main47287-20010iZRR70200808-201608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iZRR70200808-201401

9017906008

main90179-06008

9017908204

main90179-08204

9161660616

main91616-60616

9167380616

main91673-80616

17 parts on this diagram · 1 diagram in section
