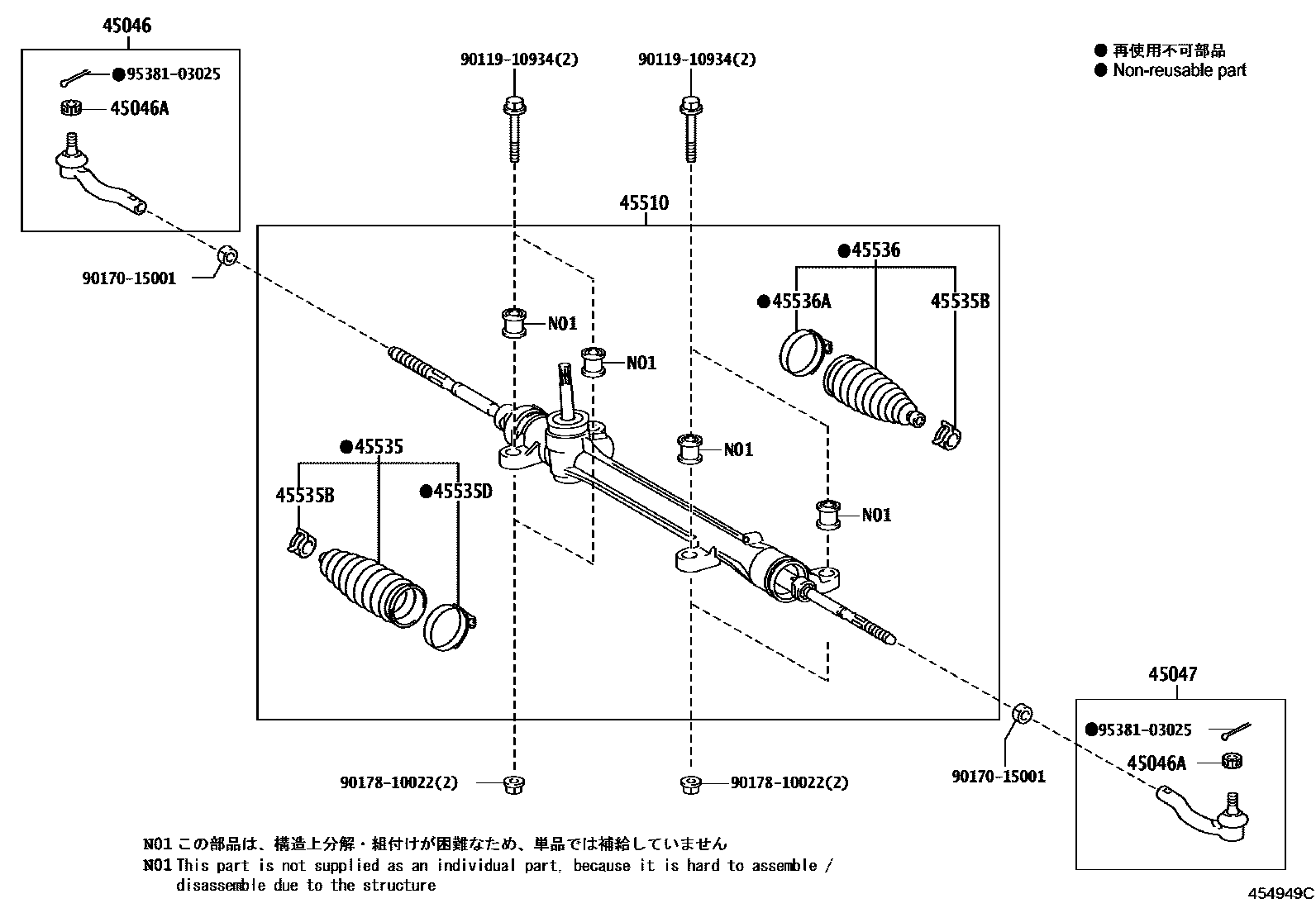

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iZRR70..S201004-201303

main45046-59115iZRR70..S201304-201401

main45047-49025iZRR70..E..GEN201004-201401

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iZRR70..IDN201004

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iZRR70..S201004-201303

main45046-49095iZRR70..IDN201004

main45046-59115iZRR70..S201304-201401

45510GEAR ASSY, STEERING

main45510-28121iZRR70200808-201004

main45510-28122iZRR70..E..GEN201305-201401

main45510-28131iZRR70..S201004-201401

45535BOOT, STEERING RACK, NO.1

main45535-29015iZRR70..GEN201004-201401

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iZRR70200808-201004

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iZRR70..GEN201004-201401

45536BOOT, STEERING RACK, NO.2

main45535-29015iZRR70200808-201004

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iZRR70200808-201004

9011910934

main90119-10934

9017015001

main90170-15001

9017810022

main90178-10022

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
