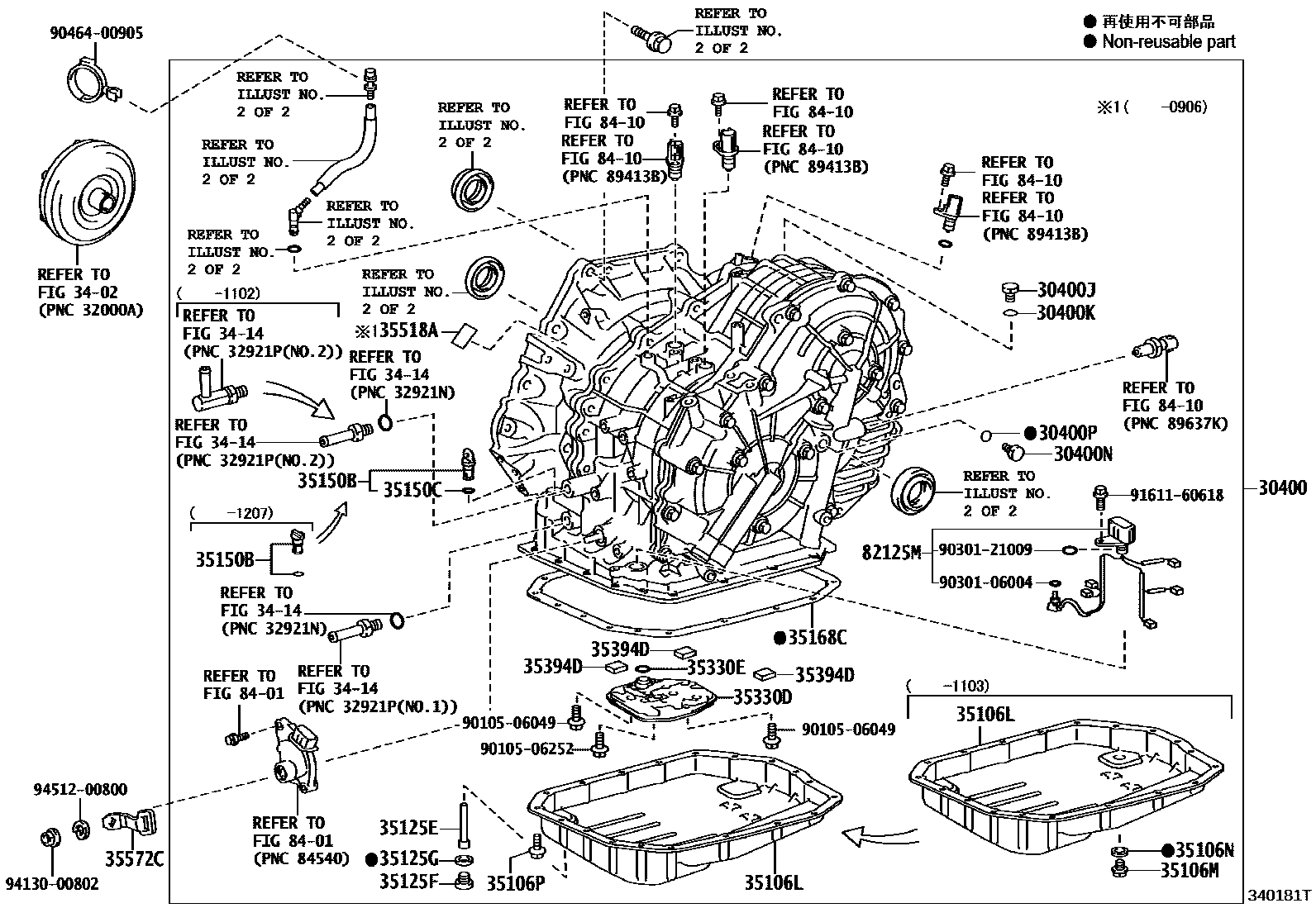

TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K111
K111
30400KGASKET, TRANSAXLE HOLE PLUG
30400PGASKET, REFILL PLUG(CVT)
3402
3414
35106MPLUG SUB-ASSY, DRAIN(CVT)
35106NGASKET, DRAIN PLUG(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35572CLEVER, TRANSMISSION CONTROL SHAFT
82125MWIRE, TRANSMISSION
8401
8410
9010506049
main90105-06049
9010506252
main90105-06252
9030106004
main90301-06004
9030121009
main90301-21009
9046400905
main90464-00905
9161160618
main91611-60618
9413000802
main94130-00802
9451200800
main94512-00800
33 parts on this diagram · 2 diagrams in section
