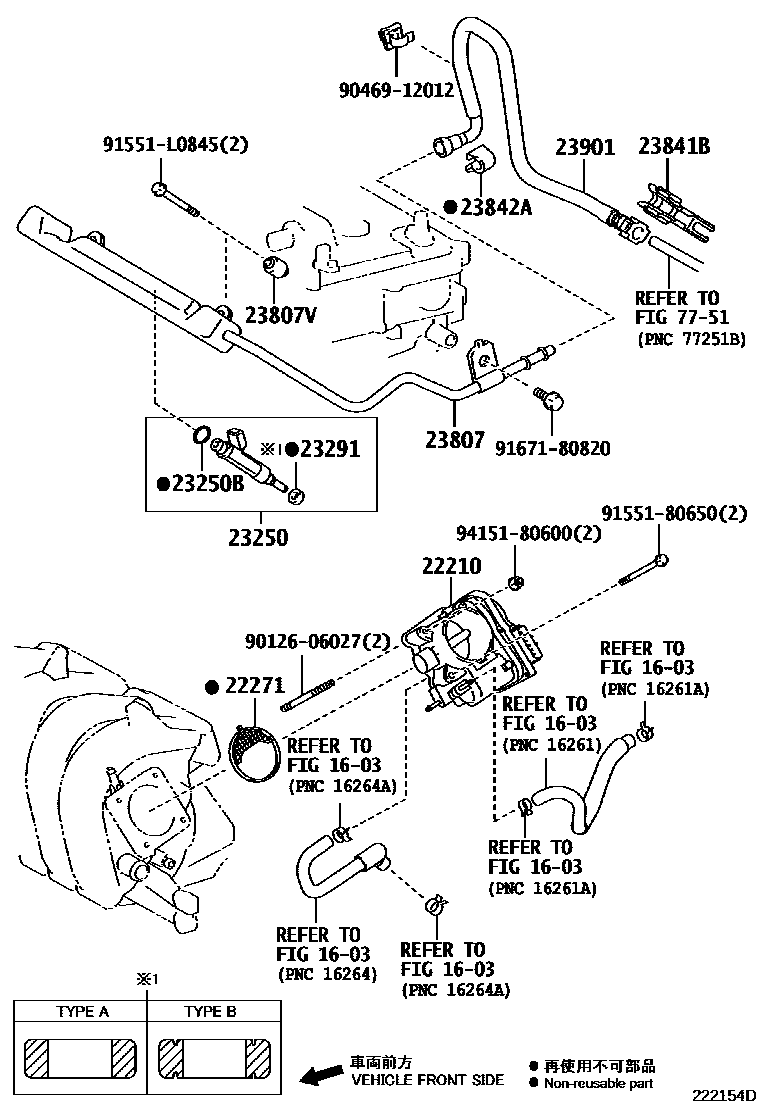

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22210BODY ASSY, THROTTLE

main22030-37010i3ZRFE..ZRR70200808-201004

main22030-37050i3ZRFAE..ZRR70201004-201612

22271GASKET, THROTTLE BODY

main22271-75031i3ZRFE..ZRR70200808-201401

23250INJECTOR ASSY, FUEL

main23209-39145i3ZRFE..ZRR70200808-200902

main23209-39146i3ZRFE..ZRR70200902-201401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i3ZRFAE..ZRR70..IDN200808-201401

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i3ZRFE..ZRR70200808-201401

TYPE A:REFER ILLUST.

main23291-28020i3ZRFE..ZRR70200902-201401

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37050i3ZRFE..ZRR70200808-201108

sub23814-37051

main23814-37051i3ZRFAE..ZRR70..IDN201108-201401

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i3ZRFE..ZRR70200808-201401

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3ZRFE..ZRR70200808-201004

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i3ZRFE..ZRR70200808-201401

23901TUBE SUB-ASSY, FUEL

main23901-37030i3ZRFE..ZRR70200808-201004

7751

9012606027

main90126-06027

9046912012

main90469-12012

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

18 parts on this diagram · 2 diagrams in section
