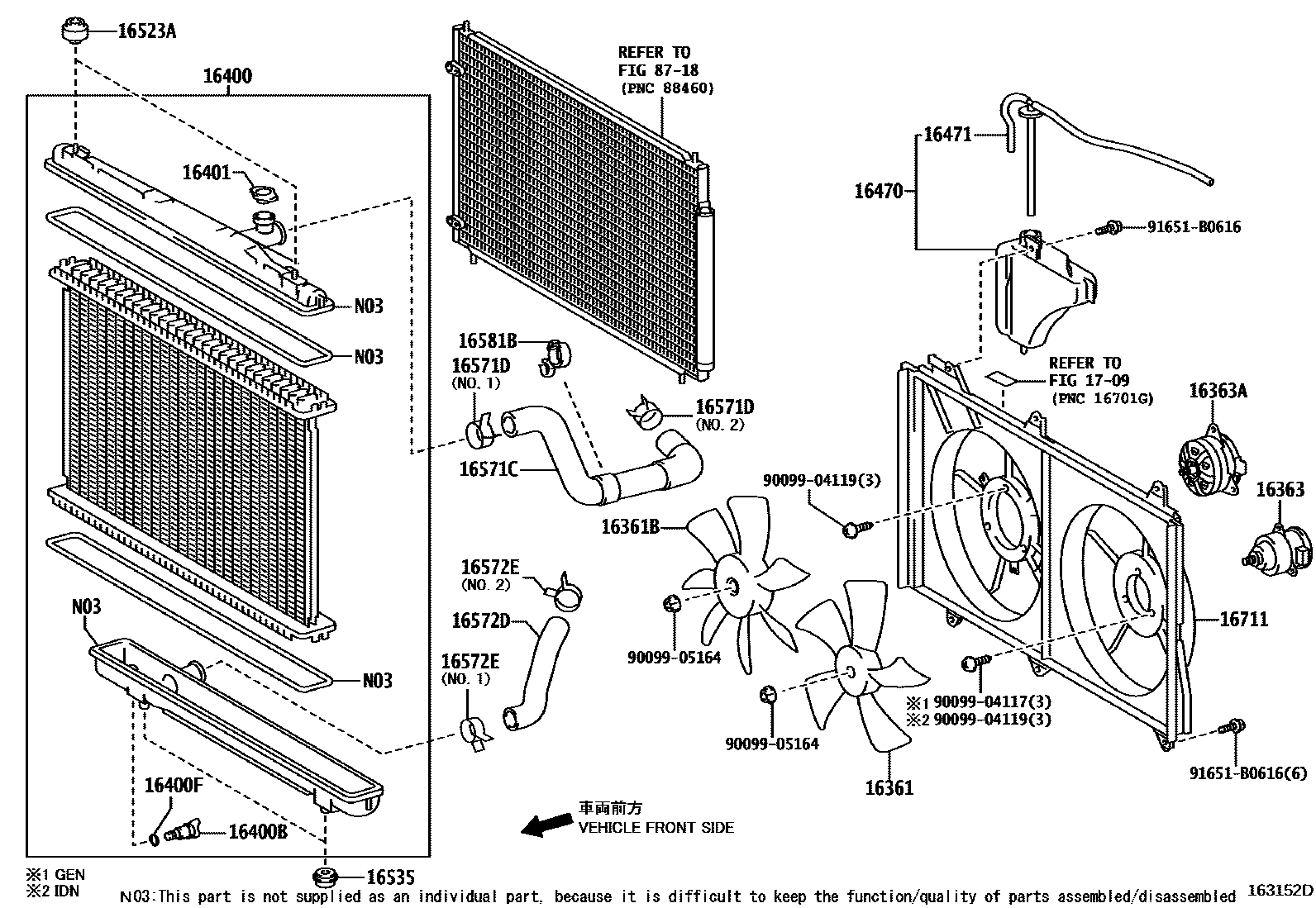

RADIATOR & WATER OUTLET
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
NO.2
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
1709
8718
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
91651B0616
main91651-B0616
25 parts on this diagram · 2 diagrams in section
