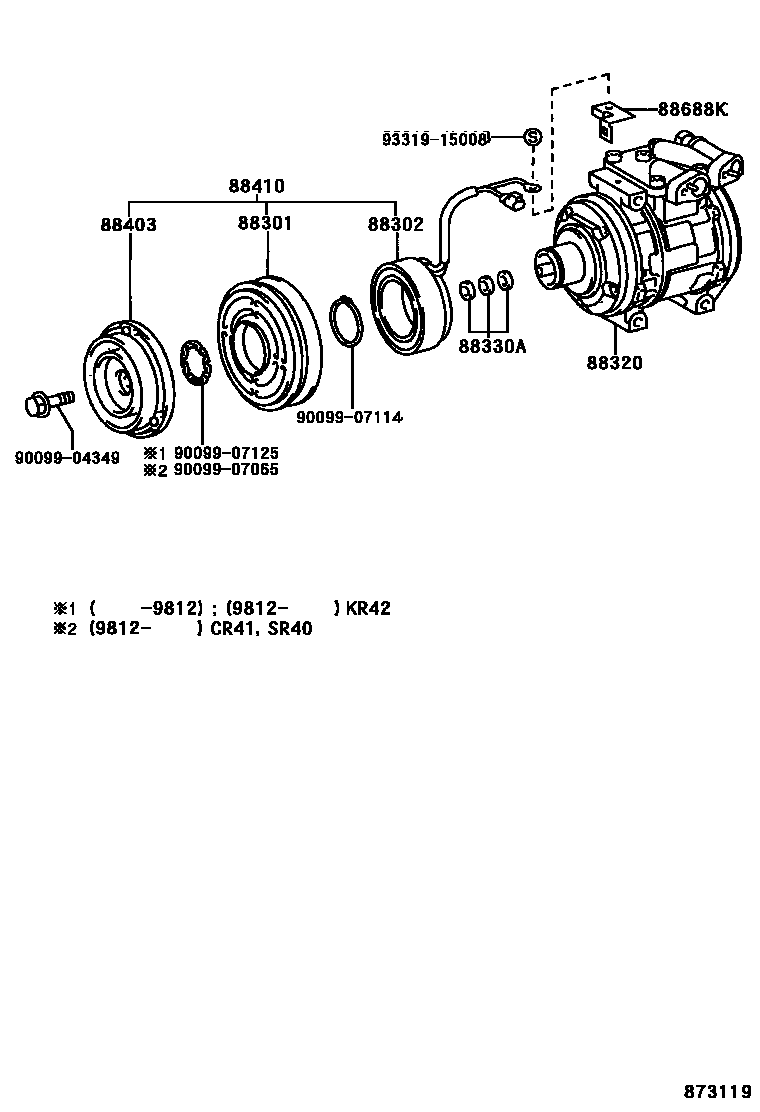

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-28060iSR40199812-200111

main88412-28070iCR4#199812-200412

main88412-2A060iKR42..GEN200111-200310

main88412-30430iKR42..ARL199611-200310

sub88412-2A060

main88412-33040iSR40199611-199812

sub88412-2A050

main88412-38010iCR41199611-199812

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iCR41,KR4#,SR40199611-199708

sub88411-2A030

main88411-2A030iCR41,KR4#,SR40199708-200412

88320COMPRESSOR ASSY, COOLER

main88320-28270iCR41199611-199812

sub88320-60H91

main88320-28280iSR40199611-199812

main88320-28290iKR42199611-200310

main88320-28320iSR40199812-200111

main88320-28340iCR42199812-200412

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCR41199611-200412

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCR42199812-200412

main88403-2A010iSR40..ARL199710-200111

main88403-30290iKR42199611-200310

88410CLUTCH ASSY, MAGNET

main88410-22480iKR42199611-200310

main88410-28160iCR41199611-199812

main88410-28170iSR40199611-199812

main88410-28180iSR40199812-200111

main88410-28190iCR41199812-200412

88688KBRACKET, COOLER COMPRESSOR

main88688-2J350iCR41,SR40199611-199812

sub88371-28330

main88688-2J460iKR4#199611-200310

main88688-2J590iCR4#,SR40199812-200412

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

12 parts on this diagram · 6 diagrams in section
