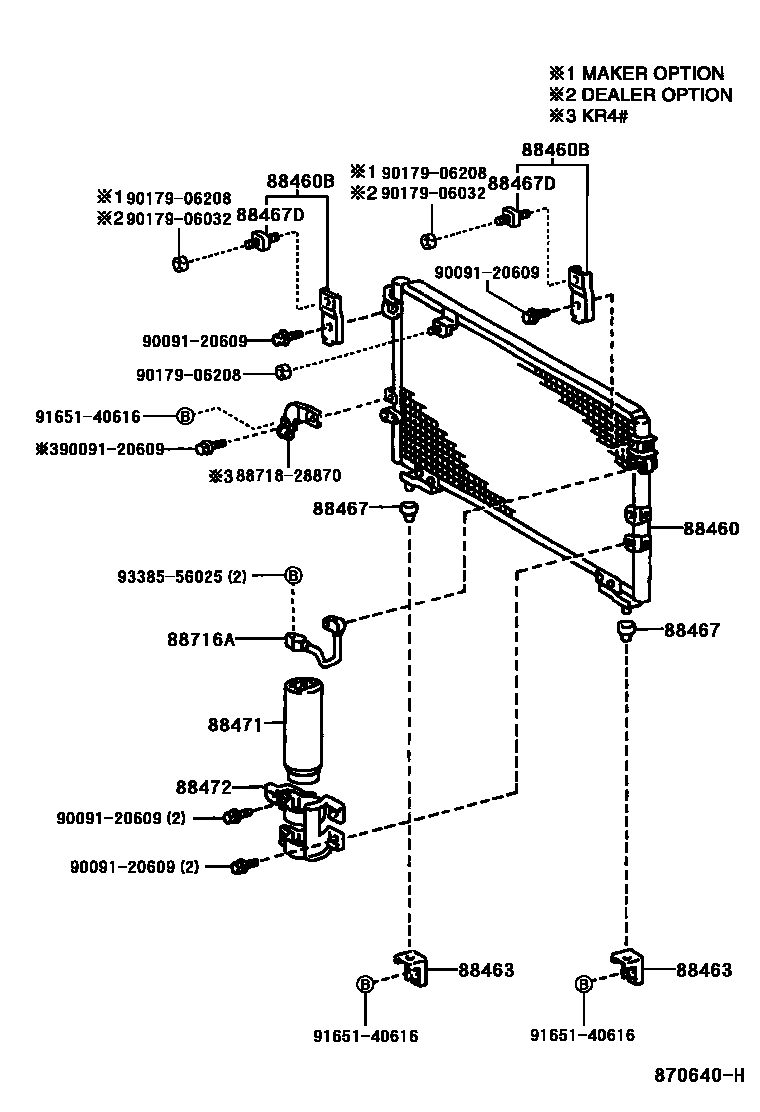

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1PIPING---SINGLE AIR CONDITION0003 1PIPING 0004 1PIPING---DUAL(MAKER OPTION) 0005 1PIPING---DUAL(DEALER OPTION) 0006 1PIPING---DUAL(DEALER OPTION) 0007 1PIPING---SINGLE AIR CONDITION0008 1O RING

88460CONDENSER ASSY, COOLER

main88460-28470iCR4#,SR40199611-200412

main88460-28480iKR42..ARL199611-200310

DEALER OPTION

main88460-28490iKR42..GEN199611-200310

MAKER OPTION

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-2J390iCR41,KR4#,SR40199611-200412

88463BRACKET, COOLER CONDENSER, NO.1

main88463-28440iCR41,KR4#,SR40199611-200412

88467CUSHION, COOLER CONDENSER, NO.1

main88467-95D01iCR41,KR4#,SR40199611-200412

88467DCUSHION, COOLER REFRIGERANT PIPE CLAMP

main88467-30270iCR41;SR40..ARL199611-200412

main88467-30270iCR42200008-200310

DEALER OPTION

main88467-30270iCR42200204-200412

PIPE SIDE

main88467-30270iCR42200204-200412

CONDENSER SIDE

main88467-30270iCR42200310-200412

DEALER OPTION,PIPE SIDE

main88467-95704iCR42200310-200412

DEALER OPTION,CONDENSER SIDE

88471TANK, RECEIVER AIR CONDITIONER

main88471-22040iKR4#;SR40..ARL199611-200412

W(SINGLE AIR CONDITIONER)

main88471-28070iCR42199611-200412

W(DUAL AIR CONDITIONER)

88472BRACKET, RECEIVER TANK, NO.1

main88472-28140iCR41,KR4#,SR40199611-200412

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2R620iCR41,KR4#,SR40199611-200412

8871828870PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-28870

9009120609

main90091-20609

9017906032

main90179-06032

9017906208

main90179-06208

9165140616

main91651-40616

9338556025

main93385-56025

14 parts on this diagram · 8 diagrams in section
