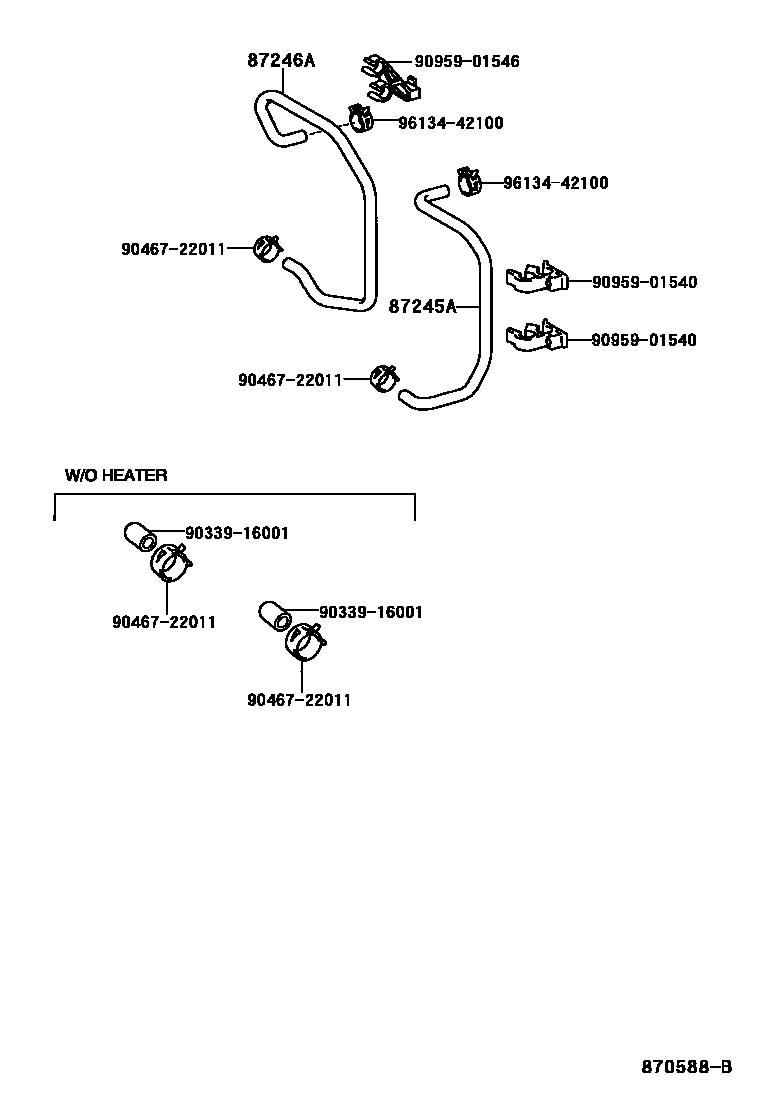

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87245AHOSE, HEATER WATER, INLET A

main87245-28540iCR41199611-199812

main87245-28560iSR40199812-200111

main87245-28570iKR42199812-200310

main87245-2J040iCR4#199812-200412

NO.1

main87245-2J120iCR4#199812-200412

NO.2

87246AHOSE, HEATER WATER, OUTLET A

main87245-28550iSR40199611-199812

main87245-28580iKR4#199611-199812

main87245-2J030iCR4#199812-200412

main87245-2J050iKR42199812-200310

9033916001

main90339-16001

9046722011

main90467-22011

9095901540

main90959-01540

9095901546

main90959-01546

9613442100

main96134-42100

7 parts on this diagram · 5 diagrams in section
