BACK DOOR LOCK & HINGE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-28010iCR41,KR4#,SR40199611-199801

main64680-28020iSR40199812-200111

64885BCHANNEL, BACK WINDOW GLASS, RH

main64885-28010iCR41,KR4#,SR40199703-199812

64886ACHANNEL, BACK WINDOW GLASS, LH

main64886-28010iCR41,KR4#,SR40199703-199812

67935DGARNISH, BACK DOOR

main67935-28030iCR41,KR4#199611-199812

68810DHINGE ASSY, BACK DOOR, RH

main68810-95J02iCR41,KR4#,SR40199611-199812

68820CHINGE ASSY, BACK DOOR, LH

main68820-28030iCR41,KR4#,SR40199611-199812

W(REAR WIPER)

main68820-95J02iCR41,KR4#..GEN199611-199812

68950CSTAY ASSY, BACK DOOR, RH

main68950-29906iSR40199812-200111

main68950-29915iCR41,KR4#..GEN199611-199703

W(REAR WIPER)

main68950-29916iCR41,KR4#..GEN199703-199812

W(REAR WIPER)

main68950-29925iCR41,KR4#,SR40199611-199703

main68950-29926iKR42..GEN199812-200310

W(REAR UNDER MIRROR)

main68950-29935iKR42..ARL199611-199703

W(REAR WIPER)

main68950-29936iKR42..ARL199703-199812

W(REAR WIPER)

68960STAY ASSY, BACK DOOR, LH

main68960-29906iSR40199812-200111

main68960-29915iCR41,KR4#..GEN199611-199703

W(REAR WIPER)

main68960-29916iCR41199812-200112

main68960-29925iCR41,KR4#,SR40199611-199703

main68960-29926iKR42..GEN199812-200310

W(REAR UNDER MIRROR)

main68960-29935iKR42..ARL199611-199703

W(REAR WIPER)

main68960-29936iKR42..ARL199703-199812

W(REAR WIPER)

68961BOLT, BACK DOOR STAY

main68961-28020×2iCR41199812-200112

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-28030iSR40199611-199812

main69090-28041iCR42199812-200412

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-28030iCR41,KR4#,SR40199611-199812

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28040iCR41,KR4#,SR40199611-199801

main69350-28050iCR41,KR4#,SR40199801-199812

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-28010iCR41,KR4#,SR40199611-199812

sub69403-26050

main69403-28020iCR42199812-200412

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-28010iCR41,KR4#,SR40199611-199812

sub69403-26050

main69403-28020iSR40199812-200111

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28030iCR41,KR4#,SR40199611-199812

main69430-28040iSR40199812-200111

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-28020×2iCR41,KR4#,SR40199611-199812

main69461-28030iSR40199812-200111

69462STOPPER, BACK DOOR SIDE MALE, LH

main69461-28030iSR40199812-200111

69790CONTROL ASSY, BACK DOOR LOCK

main69790-28110iCR41,KR4#,SR40199611-199812

9010506243

main90105-06243

9011906393

main90119-06393

9011906549

main90119-06549

9011908359

main90119-08359

9011908464

main90119-08464

9017608032

main90176-08032

9017906274

main90179-06274

9043005003

main90430-05003

9046705150

main90467-05150

91616B0825

main91616-B0825

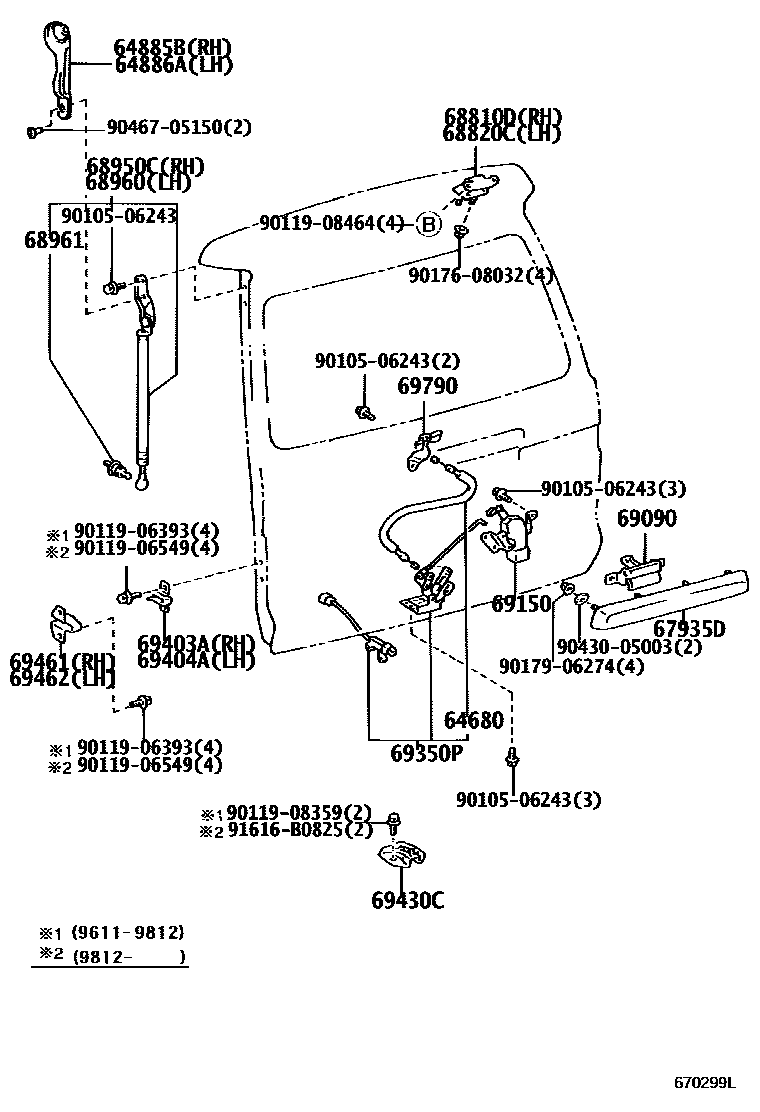

28 parts on this diagram · 1 diagram in section
