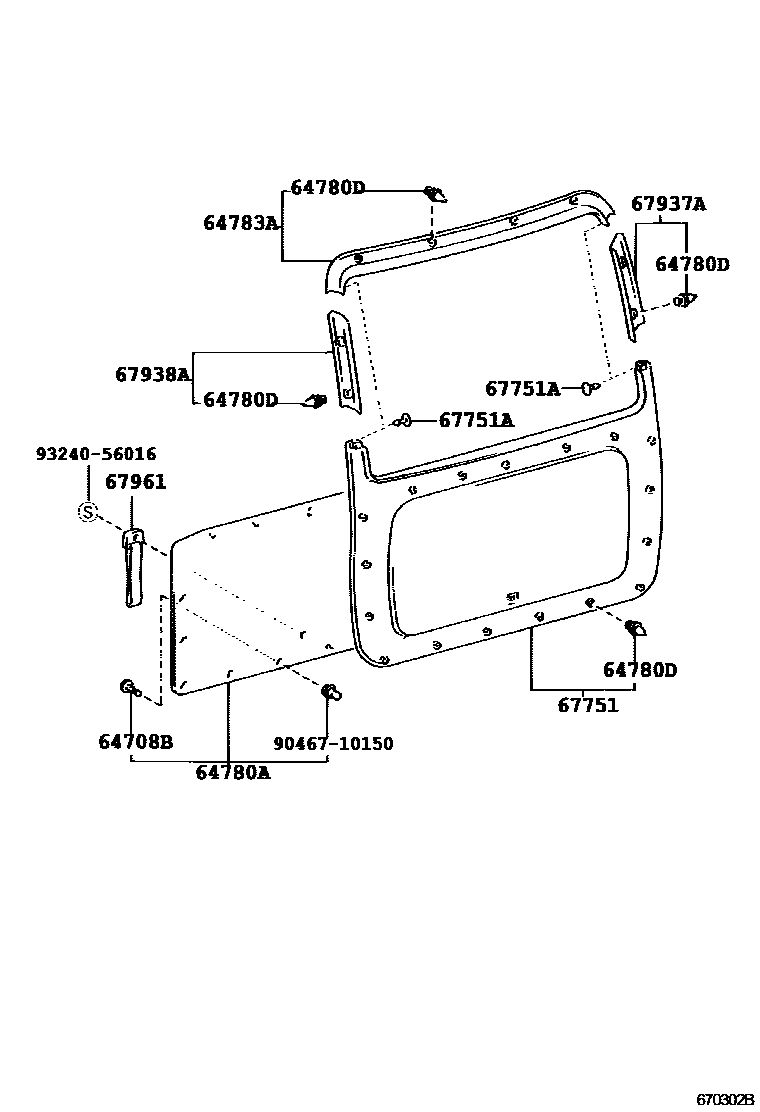

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

64708BCLIP, BACK DOOR TRIM

main90467-07054-E1iCR41199611-200412

BEIGE,TRIM1#

sub90467-07054

64780APANEL ASSY, BACK DOOR TRIM

main64780-28140iCR41,KR4#199611-200412

64780DRETAINER(FOR BACK DOOR TRIM BOARD)

main67771-16080iSR40199611-200111

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-28080-B0iSR40199611-200111

MOON MIST,TRIM1#

main64783-28100-B0iSR40..GEN199611-200111

W(HIGH MOUNT STOP LAMP LED TYPE),MOON MIST,TRIM1#

67751BOARD, BACK DOOR TRIM

main64785-28030-B0iSR40199611-200111

MOON MIST,TRIM1#

sub64785-28030

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05063-B3iSR40199611-200111

BLUISH GRAY,TRIM1#

sub90467-05063

67937AGARNISH, BACK DOOR SIDE

main67937-28010-B0iSR40199611-200111

MOON MIST,TRIM1#

sub67937-28010

67938AGARNISH, BACK DOOR SIDE, LH

main67938-28010-B0iSR40199611-200111

MOON MIST,TRIM1#

sub67938-28010

67961STRAP, BACK DOOR PULL

main67908-28020-B0iCR41,KR4#,SR40199611-200412

MD.MOON MIST,TRIM1#

sub67908-28020

9046710150

main90467-10150

9324056016

main93240-56016

11 parts on this diagram · 3 diagrams in section
