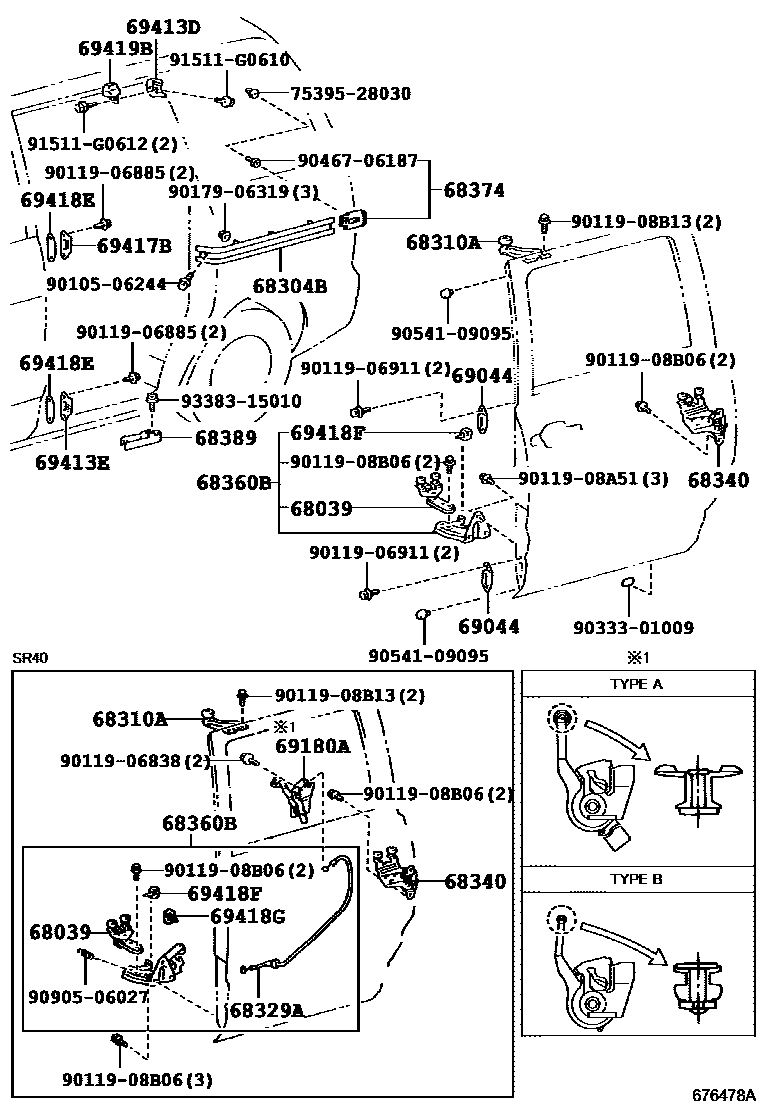

SLIDE ROLLER & RAIL

0001 1 0002 1

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-28010iSR40¥3,850199611-200111

main68039-28030iCR41¥3,860199812-200412

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28040iCR41¥12,400199611-200412

main68304-28060-B0iSR40199710-199812

BLUISH SILVER ME.,1A0 ,2CM

sub68304-28060¥17,300

main68304-28060-B4iSR40199812-200111

SILVER ME.,1C0 ,2EU

sub68304-28060¥17,300

main68304-28060-E0iSR40199801-200111

BEIGE M.M.OP.,4N9

sub68304-28060¥17,300

main68304-28060-G2iSR40199801-199812

DK. GREEN MC.,6Q7

sub68304-28060¥17,300

main68304-28060-J0iSR40..ARL199710-199812

BLUE M.M.,2CM

sub68304-28060¥17,300

main68304-28060-J1iSR40199812-200111

DK.BLUE M.M.,2EU

sub68304-28060¥17,300

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-28030iKR4#..5D¥3,110199611-200412

68310AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-28030iSR40¥3,110199611-200412

68329ACABLE, SLIDE DOOR HALF OPEN STOPPER

main68329-28020iSR40¥2,790199611-200111

68340ROLLER ASSY, SLIDE, LH

main68340-28020iCR41,KR4#,SR40¥6,200199611-199709

sub68340-28030¥6,200

main68340-28030iCR41,KR4#,SR40¥6,200199709-200412

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-28020iCR41,KR4#¥9,200199611-199812

main68360-28021iKR42¥9,100199812-200412

main68360-28030iSR40¥12,700199611-200111

68374MOULDING, SLIDE RAIL END, LH

main68374-28050iCR41,KR4#,SR40¥1,190199611-199808

main68374-28060-B0iSR40199710-199808

BLUISH SILVER ME.,1A0 ,2CM

main68374-28060-E0iSR40199801-199808

BEIGE M.M.OP.,4N9

main68374-28060-G2iSR40199801-199808

DK. GREEN MC.,6Q7

main68374-28060-J0iSR40..ARL199710-199808

BLUE M.M.,2CM

main68374-28070-B0iSR40199808-199812

BLUISH SILVER ME.,1A0 ,2CM

sub68374-28070¥1,200

sub68374-28080¥1,190

main68374-28070-B2iSR40199812-200111

SILVER ME.,1C0 ,2EU

sub68374-28070¥1,200

sub68374-28080¥1,190

main68374-28070-E0iSR40199808-200111

BEIGE M.M.OP.,4N9

sub68374-28070¥1,200

sub68374-28080¥1,190

main68374-28070-J0iSR40199808-199812

BLUE M.M.,2CM

sub68374-28070¥1,200

sub68374-28080¥1,190

main68374-28070-J1iSR40199812-200111

DK.BLUE M.M.,2EU

sub68374-28070¥1,200

sub68374-28080¥1,190

main68374-28080iCR42¥1,190199808-200412

68389SPRING, SLIDE DOOR CATCH, LH

main68389-28030iCR41,KR4#,SR40¥840199611-200412

69044STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE, LH

main69043-95J00iCR41,KR4#,SR40¥1,480199611-200412

W(POWER DOOR LOCK)

69180ACONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-28020iSR40¥4,810199611-199703

main69180-28030iSR40¥5,500199703-199708

main69180-28031iSR40¥5,700199708-200111

69413STOP, SLIDE DOOR DOWN MALE

main69416-28020iKR4#..5D¥1,530199611-200412

69413DBRACKET, SLIDE DOOR OPEN STOP

main69413-28010iCR41,KR4#,SR40..4D¥410199611-200412

69413ESTOPPER, SLIDE DOOR DOWN MALE, LH

main69416-28020iCR41,KR4#..GEN¥1,530199611-200412

69417BSTOPPER, SLIDE DOOR DOWN MALE, LOWER RH

main69416-28020iCR41,KR4#,SR40¥1,530199611-200412

69418ESHIM, SLIDE DOOR DOWN STOP MALE LH

main69418-28010iCR41,KR4#,SR40¥390199611-200412

69418FCUSHION, SLIDE DOOR OPEN STOPPER, LH

main69417-28010iCR41,KR4#,SR40¥240199611-200412

69418GCUSHION, SLIDE DOOR OPEN STOPPER, LH

main69417-28020iSR40¥180199611-200111

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28020iCR41,KR4#,SR40¥1,290199611-200412

7539528030CLIP, BACK DOOR MOULDING, NO.1

main75395-28030¥430

9010506244

main90105-06244¥160

9011906838

main90119-06838¥110

9011906885

main90119-06885¥60

9011906911

main90119-06911¥80

9011908A51

main90119-08A51¥100

9011908B06

main90119-08B06¥140

9011908B13

main90119-08B13¥90

9017906319

main90179-06319¥80

9033301009

main90333-01009¥110

9046706187

main90467-06187¥130

9054109095

main90541-09095¥320

9090506027

main90905-06027¥200

91511G0610

main91511-G0610¥110

91511G0612

main91511-G0612¥110

9338315010

main93383-15010¥60

35 parts on this diagram · 2 diagrams in section
