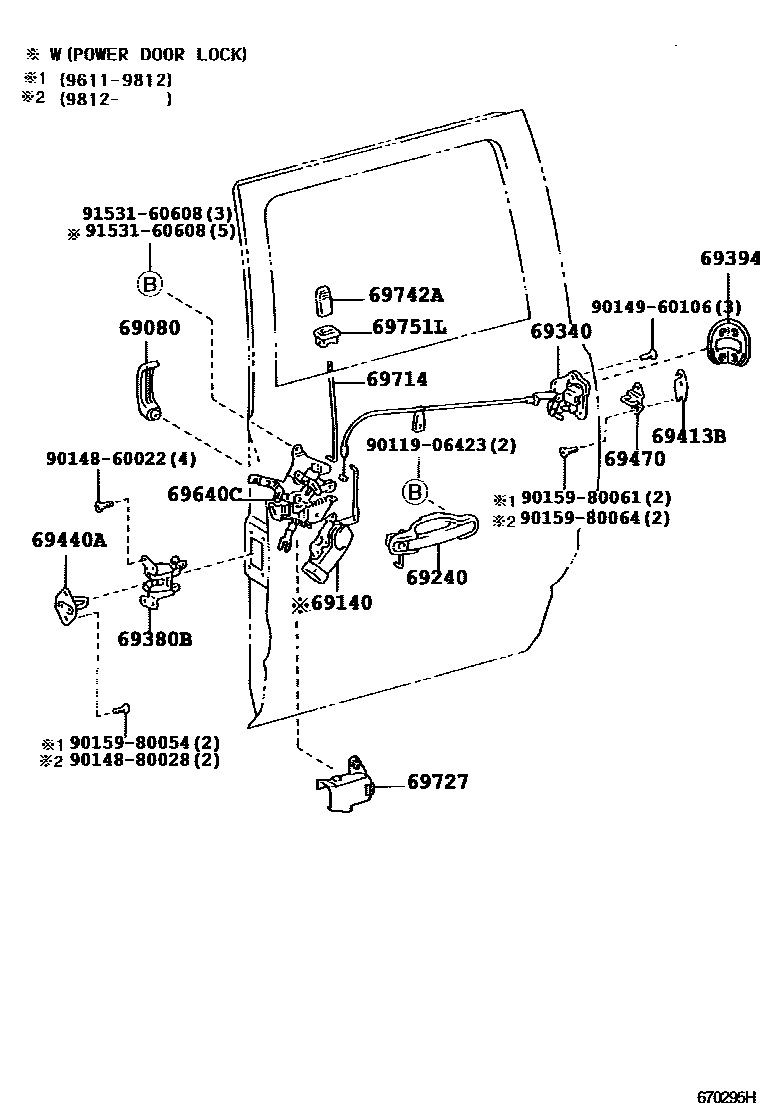

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69070-28050-B1iKR42199812-200310

MD. MOON MIST,TRIM1#

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-28040iKR42..ARL199812-200310

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-28040iCR41,KR4#,SR40199611-199812

main69240-28060iSR40199812-200111

BLACK

main69240-28061iKR42200208-200310

BLACK

69340LOCK ASSY, REAR DOOR, LH

main69340-28020iCR41,KR4#,SR40199611-199704

main69340-28040iCR41,KR41..06S199611-199704

W(SIDE WINDOW FIX TYPE)

main69340-28070iCR41,KR4#,SR40199704-199812

main69340-28090iCR41,KR41..06S199704-199812

W(SIDE WINDOW FIX TYPE)

main69340-28110iCR42199812-200412

main69340-28130iKR42..06S199812-200310

W(SIDE WINDOW FIX TYPE)

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28040iCR41,KR4#..02S,06S199611-199812

main69380-28050iSR40199611-199812

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-28010iCR41,KR4#,SR40199704-199812

69413BSHIM, DOOR LOCK STRIKER

main69413-28020iCR41,KR4#,SR40199611-199812

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010×2iKR41..5D199611-199812

sub69440-46010

main69440-28040×2iCR41,KR42,SR40..4D..(06S,08S)199812-200310

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28060×2iKR4#..5D199611-199812

main69470-28070×2iCR42..5D199812-200412

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28110iCR41,KR4#199611-199812

main69640-28120iSR40199611-199812

main69640-28130iCR41199812-200112

main69640-28140iSR40199812-200111

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-28030iCR41,KR4#199611-199812

main69714-28040iSR40199611-199812

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-28010iSR40199812-200111

69742AKNOB, REAR DOOR LOCK CONTROL, LH

main69741-87003-B5iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

69751LHOLDER, REAR DOOR LOCK CONTROL KNOB, LH

main69751-12060-B2iCR42199812-200412

DARK.SAGE,TRIM1#

main69751-28010-B4iSR40199812-200111

MD.MOON MIST,TRIM1#

9011906423

main90119-06423

9014860022

main90148-60022

9014880028

main90148-80028

9014960106

main90149-60106

9015980054

main90159-80054

9015980061

main90159-80061

9015980064

main90159-80064

9153160608

main91531-60608

22 parts on this diagram · 2 diagrams in section
