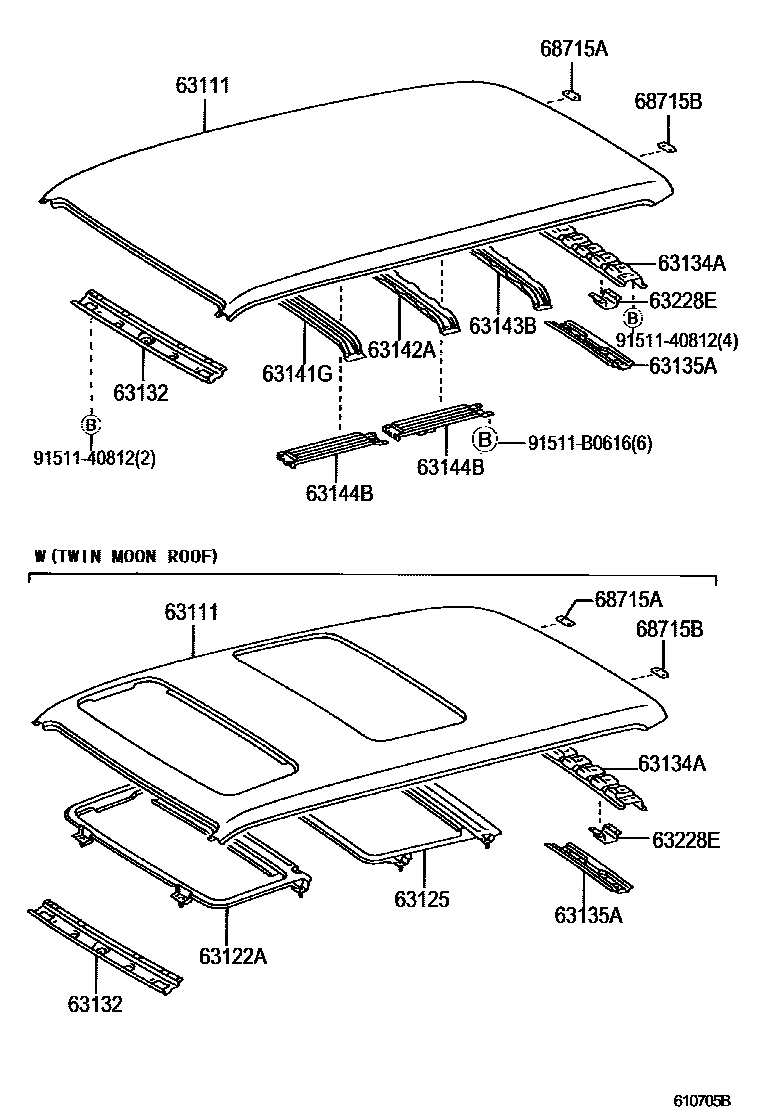

ROOF PANEL & BACK PANEL

0001 1 0002 1W(TWIN MOON ROOF) 0003 1W(ROOF RACK)

63111PANEL, ROOF

main63111-28070iCR41199611-200412

main63111-28120iSR40..GEN199801-200111

HONG KONG SPEC

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28030iSR40..GEN199801-200111

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-28030iSR40..GEN199801-200111

63132PANEL, WINDSHIELD HEADER, INNER

main63132-28040iKR42199611-200412

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-28040iCR41,KR4#,SR40199611-200412

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-28040iCR41,KR4#,SR40199611-200412

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-28040iCR41,KR4#199611-199812

sub63141-28050

main63141-28050iSR40199611-200412

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-28040iCR41,KR4#,SR40199611-200412

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28030iCR41199611-200412

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63046-28010iSR40199611-200111

REAR

main63144-28040iSR40199611-200111

FRONT

main63144-28040iCR41199812-200412

63228EBRACKET, ROOF HEADLINING, NO.1

main63228-28030iCR41,KR4#,SR40199611-200412

68715APLATE, DOOR HINGE, UPPER

main68715-28030iCR41,KR4#,SR40199611-200111

sub68715-28040

main68715-28040iCR41199812-200412

68715BPLATE, DOOR HINGE, UPPER

main68715-28040iCR41,KR4#,SR40199611-200412

9151140812

main91511-40812

91511B0616

main91511-B0616

15 parts on this diagram · 3 diagrams in section
