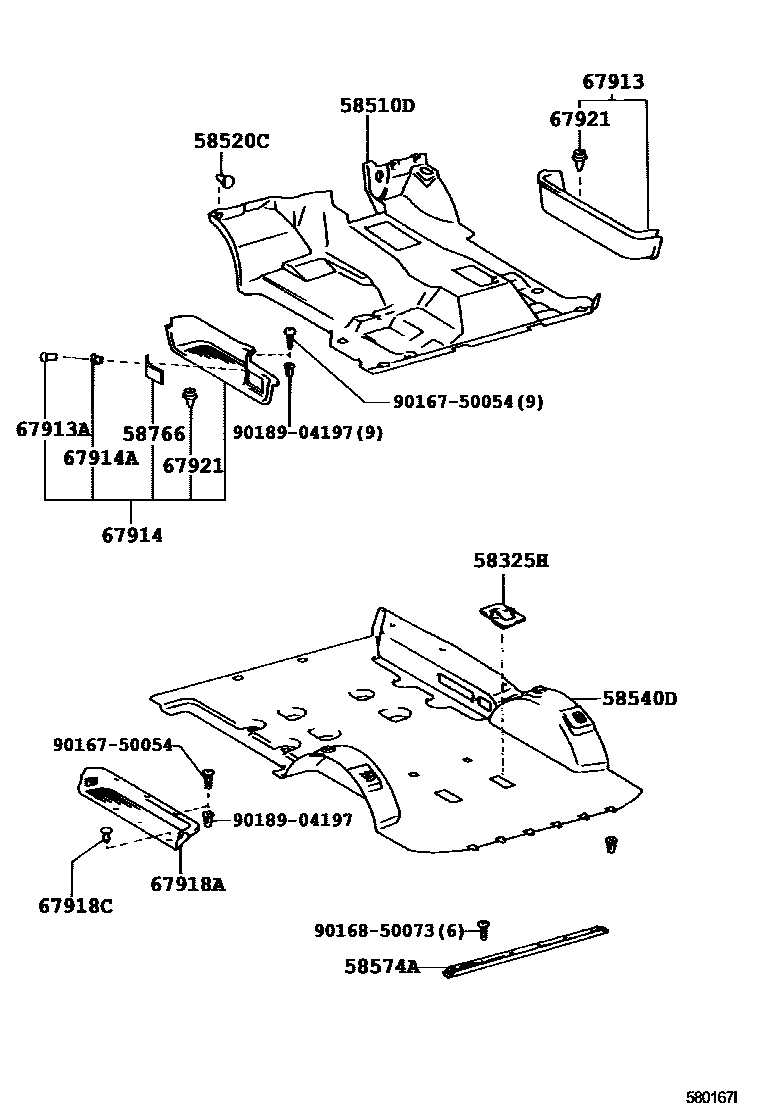

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58325HCOVER, REAR FLOOR SERVICE HOLE

main58325-28030×2iSR40199812-200111

58510DCARPET ASSY, FLOOR, FRONT

main58500-28030-B0iKR42..ATM200208-200310

MEDIUM MOON MIST,TRIM1#

main58500-28080-B0iKR42..MTM..ARL200208-200310

MEDIUM MOON MIST,TRIM1#

main58500-28090-B0iCR42,KR42..GEN200208-200412

MEDIUM MOON MIST,TRIM1#

main58500-28120-B0iCR42,KR42..GEN200208-200412

W(FRONT SUB SEAT),MEDIUM MOON MIST,TRIM1#

main58510-2R130-B0iCR41,KR42..GEN199812-200208

W(FRONT SUB SEAT),MEDIUM MOON MIST,TRIM1#

main58510-2R150-B0iCR4#,KR42..GEN199812-200208

MEDIUM MOON MIST,TRIM1#

main58510-2R250-B0iSR40..ATM199611-199708

MEDIUM MOON MIST,TRIM1#

main58510-2R251-B0iSR40..ATM199708-199812

MEDIUM MOON MIST,TRIM1#

main58510-2R280-B0iSR40..MTM199611-199708

MEDIUM MOON MIST,TRIM1#

main58510-2R281-B0iSR40..MTM199708-199812

MEDIUM MOON MIST,TRIM1#

main58510-2R350-B0iKR42..ATM199611-199812

MEDIUM MOON MIST,TRIM1#

main58510-2R630-B0iKR42..ATM199801-199812

W(*80),MEDIUM MOON MIST,TRIM1#

main58510-2R640-B0iKR42..MTM..ARL199801-199812

W(*80),MEDIUM MOON MIST,TRIM1#

main58510-2R680-B0iSR40..ATM..GEN199812-200111

MEDIUM MOON MIST,TRIM1#

main58510-2R690-B0iSR40..MTM..GEN199812-200111

MEDIUM MOON MIST,TRIM1#

main58510-2R760-B0iKR42..ATM199812-200208

W(*80),MEDIUM MOON MIST,TRIM1#

main58510-2R770-B0iKR42..MTM..ARL199812-200208

W(*80),MEDIUM MOON MIST,TRIM1#

main58510-2R780-B0iKR42..ATM199812-200008

MEDIUM MOON MIST,TRIM1#

main58510-2X130-B0iSR40..ATM..ARL200008-200111

MEDIUM MOON MIST,TRIM1#

main58510-2X140-B0iSR40..MTM..ARL200008-200111

MEDIUM MOON MIST,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-B1×6iCR41,KR4#,SR40199611-199812

BLUISH GRAY,TRIM1#

main90467-06189-B0×5iCR4#,KR42,SR40199812-200412

BLUISH GRAY,TRIM1#

58540DCARPET ASSY, FLOOR, REAR

main58540-28480-B0iSR40..GEN199611-199810

MEDIUM MOON MIST,TRIM1#

main58540-28520-B0iCR41..06S199611-199812

MEDIUM MOON MIST,TRIM1#

main58540-2J590-B0iSR40..ARL199710-199810

MEDIUM MOON MIST,TRIM1#

main58540-2J770-B0iSR40..GEN199810-199812

MEDIUM MOON MIST,TRIM1#

main58540-2J780-B0iSR40..ARL199810-199812

MEDIUM MOON MIST,TRIM1#

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-28050-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

58766COVER, JACK BOX HOLE

main58766-28020-B0iSR40199812-200111

MD.MOON MIST,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-28020-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

67913ACLIP(FOR SCUFF PLATE)

main90467-05015-B0iCR41,KR4#,SR40199611-199706

MD.MOON MIST,TRIM1#

main90467-06179-B0iCR41,KR4#,SR40199706-199812

MD.MOON MIST,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-28020-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

67914ACLIP(FOR SCUFF PLATE)

main90467-08202-B0iCR41,KR4#,SR40199611-199812

MD.MOON MIST,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-28020-B0iSR40199812-200111

MD.MOON MIST,TRIM1#

main67918-28030-B0iCR42199812-200412

MD.MOON MIST,TRIM1#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05031-01×8iSR40..GEN;CR41,KR4#..4D199611-199812

BLACK,TRIM1#

67921RETAINER, FRONT DOOR SCUFF PLATE

main67771-12050×7iCR41,KR4#,SR40199611-199812

main90467-10161×6iKR42200201-200310

9016750054

main90167-50054

9016850073

main90168-50073

9018904197

main90189-04197

16 parts on this diagram · 2 diagrams in section
