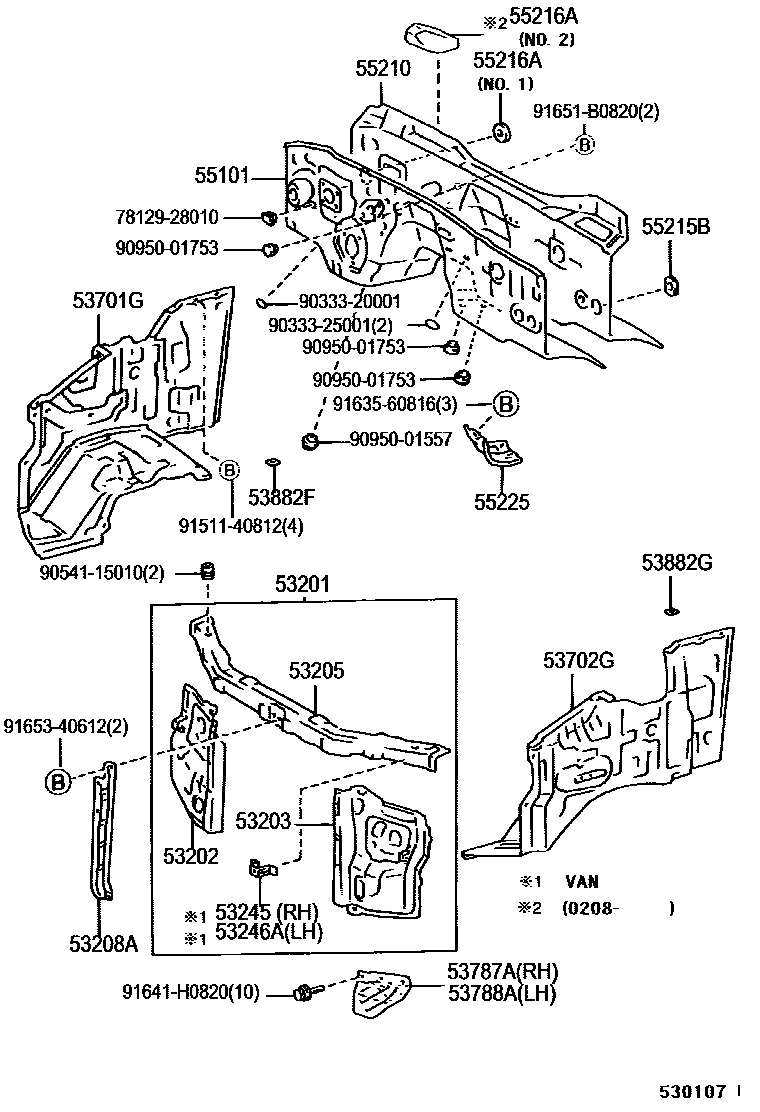

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53246ABRACKET, HEADLAMP MOUNTING, UPPER LH
53787AGUSSET, FRONT FENDER APRON, LOWER RH
S PACKAGE
53788AGUSSET, FRONT FENDER APRON, LOWER LH
S PACKAGE
53882FSEAL, FRONT FENDER
53882GSEAL, FRONT FENDER
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
NO.1
NO.2
55225INSULATOR, DASH PANEL HEAT
7812928010STOPPER, ACCELERATOR PEDAL
main78129-28010
9033320001
main90333-20001
9033325001
main90333-25001
9054115010
main90541-15010
9095001557
main90950-01557
9095001753
main90950-01753
9151140812
main91511-40812
9163560816
main91635-60816
91641H0820
main91641-H0820
91651B0820
main91651-B0820
9165340612
main91653-40612
28 parts on this diagram · 1 diagram in section
