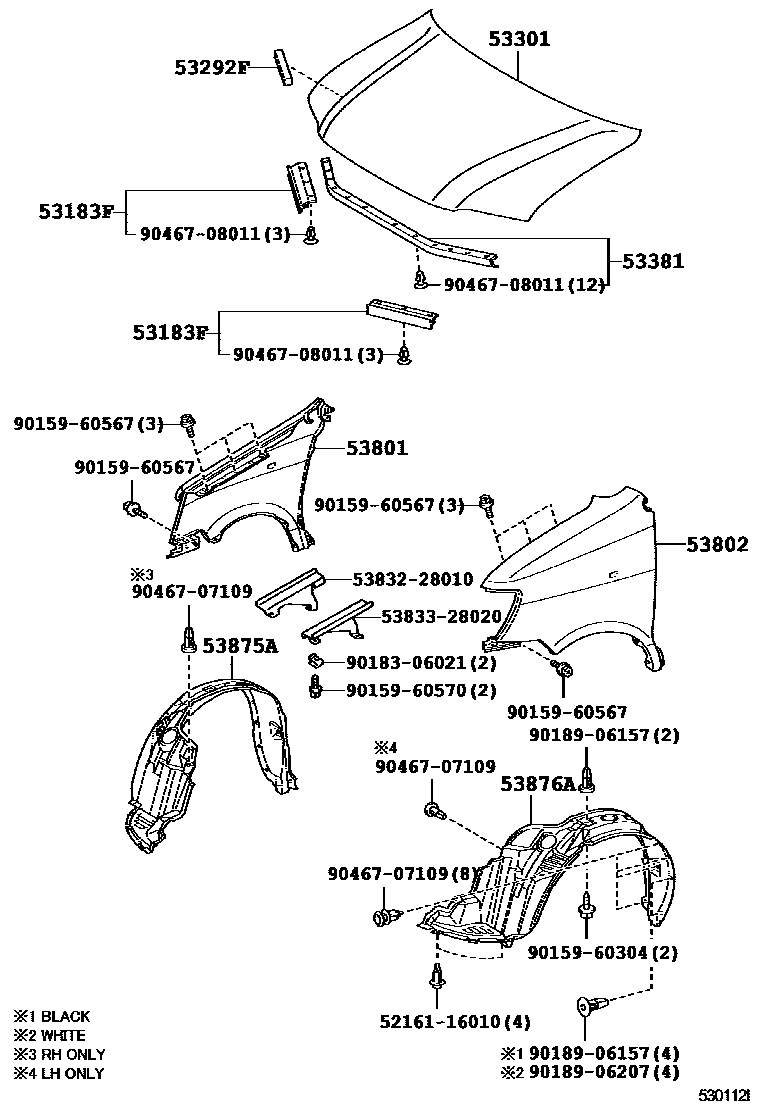

HOOD & FRONT FENDER

0001 1 0002 1

53183FSEAL, HEADLAMP COVER TO HOOD

main53183-28050iSR40199611-200111

RH

main53183-28050iCR41199812-200412

main53184-28020iSR40199611-200111

LH

53292FSEAL, RADIATOR SUPPORT, UPPER

main53292-28010iCR41,KR4#,SR40199611-200412

53301HOOD SUB-ASSY

main53301-28050iCR4#,KR42,SR40199611-200412

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-28020iCR41,KR4#,SR40199611-200412

53801FENDER SUB-ASSY, FRONT RH

main53811-28030iCR41,KR4#,SR40199611-200412

53802FENDER SUB-ASSY, FRONT LH

main53812-28030iCR41,KR4#,SR40199611-200412

53875ALINER, FRONT FENDER, RH

main53875-28030iCR41,KR4#,SR40199611-199812

main53875-28050iSR40199812-200412

53876ALINER, FRONT FENDER, LH

main53876-28040iCR41,KR4#,SR40199611-199812

main53876-28060iSR40199812-200412

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

5383228010PLATE, RADIATOR SHROUD SIDE

main53832-28010

5383328020PANEL, FRONT FENDER SIDE, LOWER

main53833-28020

9015960304

main90159-60304

9015960567

main90159-60567

9015960570

main90159-60570

9018306021

main90183-06021

9018906157

main90189-06157

9018906207

main90189-06207

9046707109

main90467-07109

9046708011

main90467-08011

19 parts on this diagram · 2 diagrams in section
