RADIATOR GRILLE

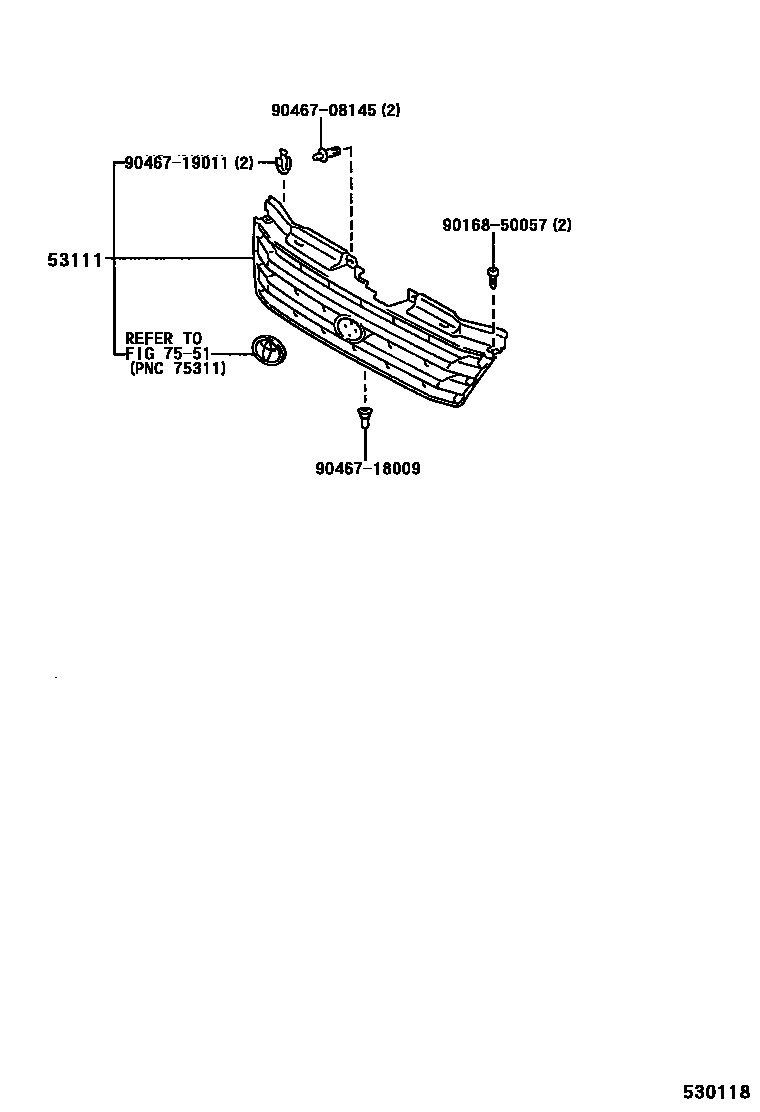

Parts diagram
53111GRILLE, RADIATOR
main53100-28120-A1i199812-200111
WHITE,058
sub53100-28120
main53100-28120-B0i199812-200111
SILVER ME.,1C0
sub53100-28120
main53100-28120-D0i199812-200111
RED MC,3K3
sub53100-28120
main53100-28120-E0i199812-200111
BEIGE M.M.OP.,4N9
sub53100-28120
main53100-28120-J0i199812-200111
DK.BLUE M.M.,2EU
sub53100-28120
main53100-28150-A0i199611-199812
WHITE,058
sub53111-28190
sub75311-28050
main53100-28150-B0i199611-199812
BLUISH SILVER ME.,1A0
sub53111-28190
sub75311-28050
main53100-28150-B1i199611-199801
DK.GRAY ME.,1B5
sub53111-28190
sub75311-28050
main53100-28150-D0i199611-199801
MAGENTA ME.,3M2
sub53111-28190
sub75311-28050
main53100-28150-E0i199801-199812
BEIGE M.M.OP.,4N9
sub53111-28190
sub75311-28050
main53100-28150-G2i199801-199812
DK. GREEN MC.,6Q7
sub53111-28190
sub75311-28050
main53100-28150-J0i199611-199812
BLUE M.M.,2CM
sub53111-28190
sub75311-28050
main53100-28170i199611-199812
sub53111-28210
sub75311-28050
main53100-28190i199812-200412
main53100-28200-A1i199812-200111
WHITE,058
sub53100-28900
main53100-28200-B0i199812-200111
SILVER ME.,1C0
sub53100-28900
main53100-28200-D0i199812-200111
RED MC,3K3
sub53100-28900
main53100-28200-E0i199812-200111
BEIGE M.M.OP.,4N9
sub53100-28900
main53100-28200-J0i199812-200111
DK.BLUE M.M.,2EU
sub53100-28900
7551
9016850057
main90168-50057
9046708145
main90467-08145
9046718009
main90467-18009
9046719011
main90467-19011

6 parts on this diagram · 4 diagrams in section
