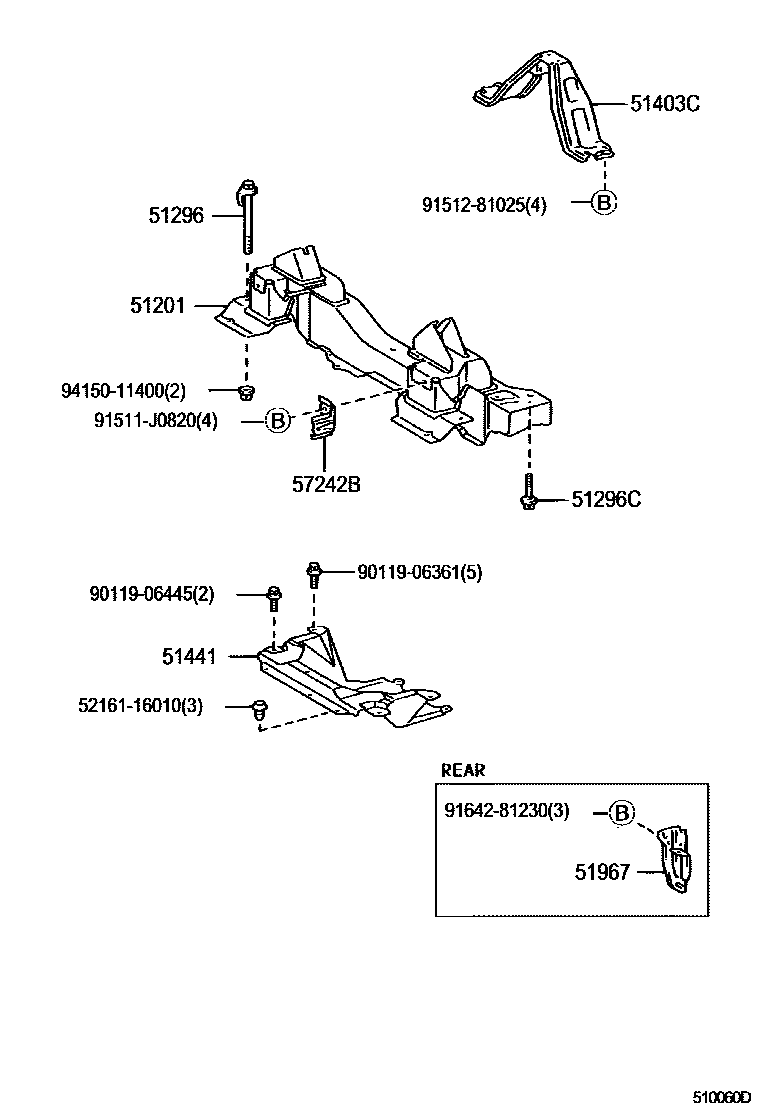

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-28010iCR41199611-200412

W(POWER STEERING)

main51210-28030iSR40199611-200111

main51210-28040iKR42199611-200310

W(POWER STEERING)

main51210-28080iCR41199611-200412

main51210-28090iKR4#199611-200310

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-28020iCR42199611-200412

51296CBOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-28040iCR42199611-200412

51403CBRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51403-28010iSR40;CR41,KR4#..MTM199611-200412

main51403-28030iKR42..ATM199611-200310

51441COVER, ENGINE UNDER, NO.1

main51441-28090iKR42199611-200412

51967HOOK, TRANSPORT, REAR

main51095-28050iCR41,KR4#,SR40199611-200412

57242BSTAY, ENGINE FRONT SUPPORT

main57242-28030iCR41,SR40199611-200412

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011906361

main90119-06361

9011906445

main90119-06445

91511J0820

main91511-J0820

9151281025

main91512-81025

9164281230

main91642-81230

9415011400

main94150-11400

14 parts on this diagram · 1 diagram in section
