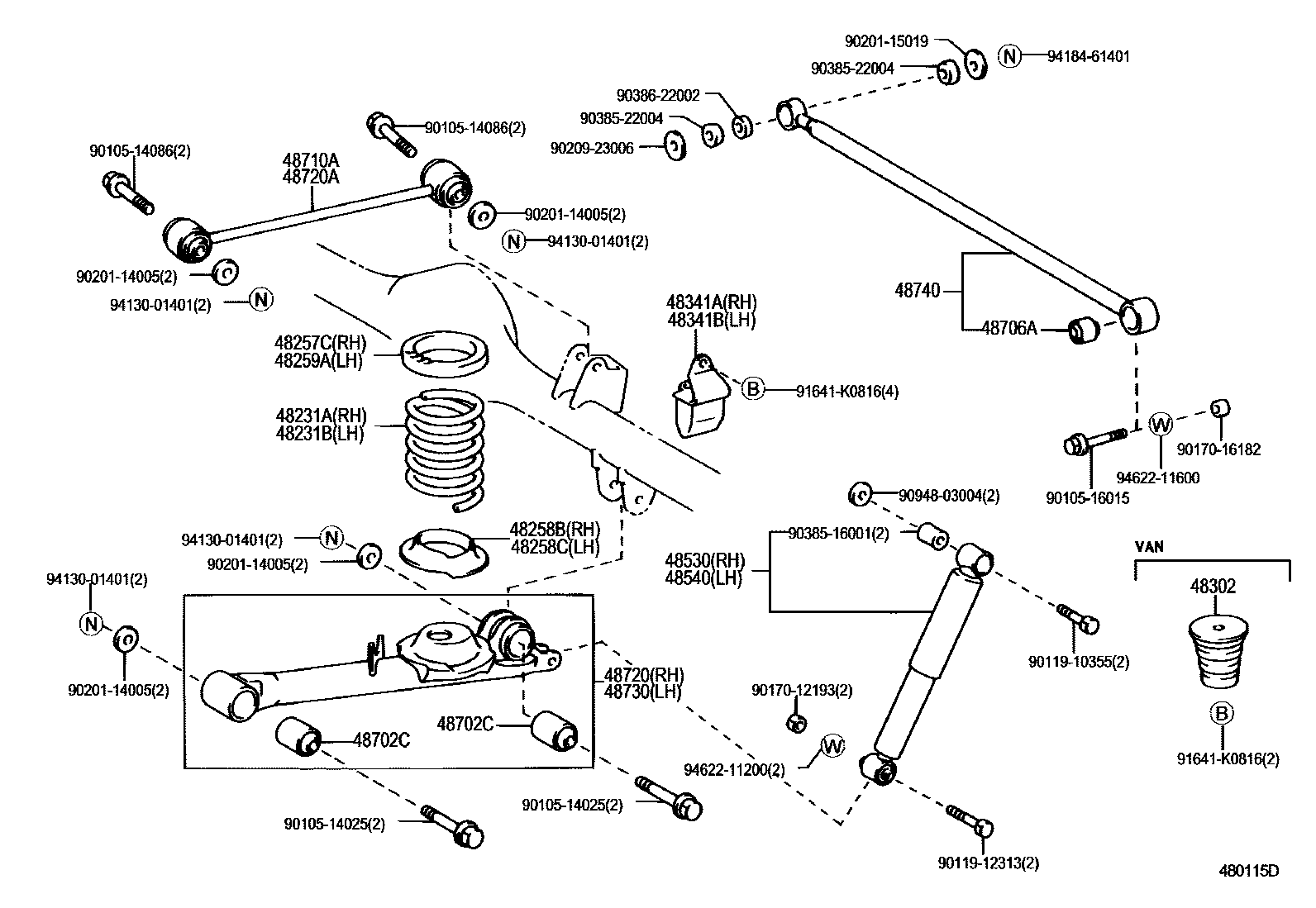

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1

48231ASPRING, COIL, REAR RH

main48231-28730iSR40..GEN199611-199812

sub48231-28830

main48231-28760iCR41,KR4#..GEN199611-200412

main48231-28850iKR42..ARL199611-200310

main48231-28860iSR40..ARL199710-200111

main48231-28870iSR40..GEN199812-200111

48231BSPRING, COIL, REAR LH

main48231-28730iSR40..GEN199611-199812

sub48231-28830

main48231-28760iKR42..GEN199611-200412

main48231-28850iKR42..ARL199611-200310

main48231-28860iSR40..ARL199710-200111

main48231-28870iSR40..GEN199812-200111

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28050iCR41,KR4#,SR40199611-200412

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-28020iCR42199611-200412

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-28020iCR41,KR4#,SR40199611-200412

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28050iCR41,KR4#,SR40199611-200412

48302SPRING SUB-ASSY, HOLLOW

main48302-28010iCR41,KR4#199611-200412

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-28090iSR40199611-200111

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-28090iSR40199611-200111

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80221iSR40..ARL199710-200111

main48531-80560iSR40..GEN199611-200111

main48531-80561iCR41,KR4#199611-200412

MARK 48531-28480

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80221iSR40..ARL199710-200111

main48531-80560iSR40..GEN199611-200111

main48531-80561iCR41,KR4#199611-200412

MARK 48531-28480

48702CBUSH SUB-ASSY, LOWER CONTROL ARM

main48704-28040iCR41199611-200412

48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD

main48706-28010iCR41,KR4#,SR40199611-199812

main48706-28020iSR40199812-200412

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-28140iCR41199611-200412

main48710-28150iSR40199710-200310

W(ABS)

48720ARM ASSY, LOWER CONTROL, RH

main48720-28110iCR41,KR4#,SR40199611-200412

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-28140iSR40199611-200412

main48710-28150iSR40199710-200310

W(ABS)

48730ARM ASSY, LOWER CONTROL, LH

main48730-28110iCR41,KR4#,SR40199611-200412

48740ROD ASSY, REAR LATERAL CONTROL

main48740-28101iCR41,KR4#,SR40199611-199812

sub48740-28102

main48740-28120iSR40199812-200412

9010514025

main90105-14025

9010514086

main90105-14086

9010516015

main90105-16015

9011910355

main90119-10355

9011912313

main90119-12313

9017012193

main90170-12193

9017016182

main90170-16182

9020114005

main90201-14005

9020115019

main90201-15019

9020923006

main90209-23006

9038516001

main90385-16001

9038522004

main90385-22004

9038622002

main90386-22002

9094803004

main90948-03004

91641K0816

main91641-K0816

9413001401

main94130-01401

9418461401

main94184-61401

9462211200

main94622-11200

9462211600

main94622-11600

37 parts on this diagram · 2 diagrams in section
