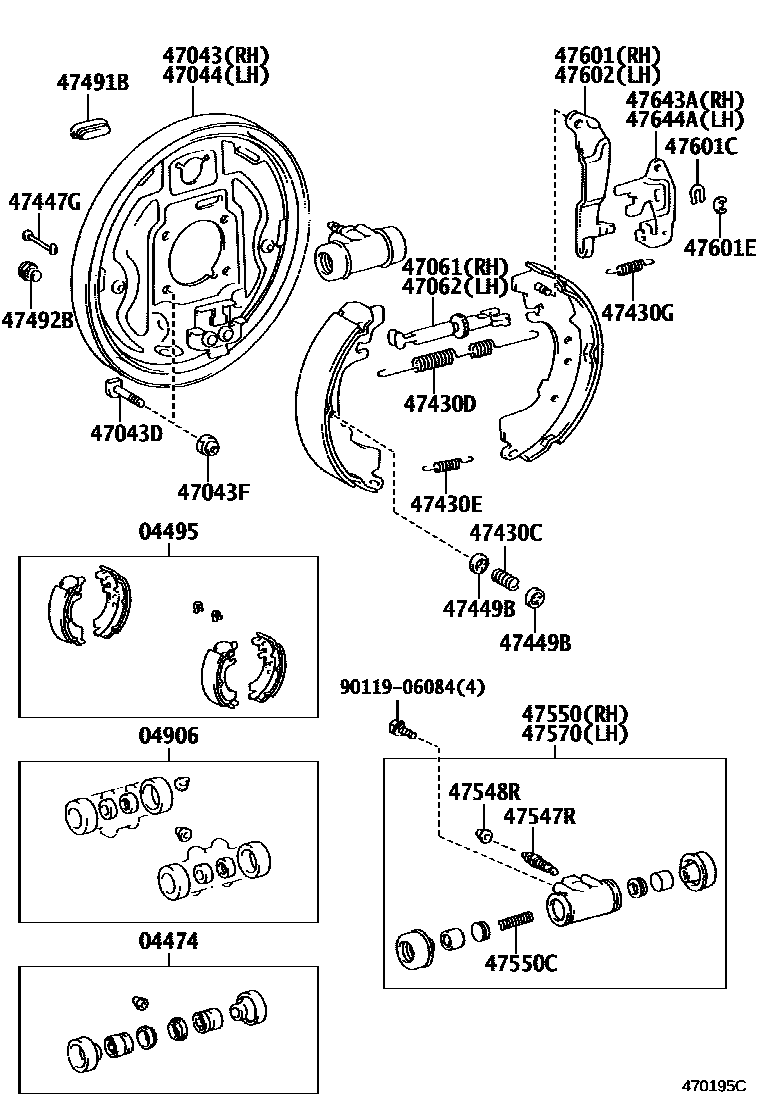

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-22030×2iCR4#,KR42,SR40..GEN199812-200208

main04474-22040×2iCR42200208-200412

main04474-28030×2iKR42,SR40..ARL199812-200310

sub04474-28040

04495SHOE KIT, REAR BRAKE

main04495-28100iCR41,KR4#,SR40..GEN199611-199801

main04495-28111iKR42..ARL199611-199707

main04495-28120iKR42,SR40..ARL199707-199812

main04495-28160iKR42..GEN200111-200301

MARK NBK LN526

main04495-44010iCR41,KR4#,SR40..GEN199801-199812

MARK NBK LN512

sub04495-44020

04906CUP KIT, REAR WHEEL CYLINDER

main04906-22040iCR41,KR4#,SR40..GEN199611-199812

main04906-28030iKR42,SR40..ARL199812-200310

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28100iSR40..ARL199812-200111

main47043-28120iCR41199812-200112

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010×8iCR41,KR4#,SR40199611-199812

main42184-28030×8iSR40199812-200111

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150×8iKR42199812-200310

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28100iKR42..ARL199812-200310

main47044-28120iCR41199812-200112

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-43010iSR40..GEN199812-200111

main47062-30030iSR40..ARL199812-200111

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-30030iKR42,SR40..ARL199611-199812

main47062-43010iKR42..GEN199812-200310

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iCR41,KR4#,SR40..GEN199611-199712

main90501-20604×4iCR41,KR4#,SR40199712-199812

main90501-20756×4iCR42200112-200412

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003×2iKR42..ARL199812-200310

main90506-29008iCR41199812-200112

RH

main90506-29009iCR42199812-200412

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18076×2iSR40199812-200111

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iCR41,KR4#,SR40..GEN199611-199812

main90506-12480×2iKR42,SR40..ARL199611-199812

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iKR42..GEN199812-200310

main47447-30020×4iSR40..ARL199812-200111

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iCR41,KR4#,SR40199611-199812

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iKR42199812-200310

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iCR41,KR4#,SR40199611-199812

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iKR42,SR40..ARL199611-199812

main47547-26010×2iCR41,KR4#,SR40..GEN199611-199812

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iCR4#,KR42,SR40199812-200412

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-22100iKR42..GEN199812-200310

main47550-28070iKR42,SR40..ARL199611-199812

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60011×2iKR42,SR40..ARL199611-199812

main90501-09079×2iCR4#,KR42,SR40..GEN199812-200412

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-22100iCR41,KR4#,SR40..GEN199611-199812

main47550-28070iKR42..ARL199812-200310

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28010iKR42..ARL199812-200310

main47611-43010iKR42..GEN199812-200310

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iSR40199812-200111

T=1.2

main90213-07010×2iKR42,SR40..ARL199611-199812

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500×2iCR42199812-200412

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28010iKR42..ARL199812-200310

main47612-43010iKR42..GEN199812-200310

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-33010iCR41199812-200112

main47644-30010iKR42..ARL199812-200310

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iSR40..ARL199812-200111

main47644-33010iSR40..GEN199812-200111

9011906084

main90119-06084

29 parts on this diagram · 2 diagrams in section
