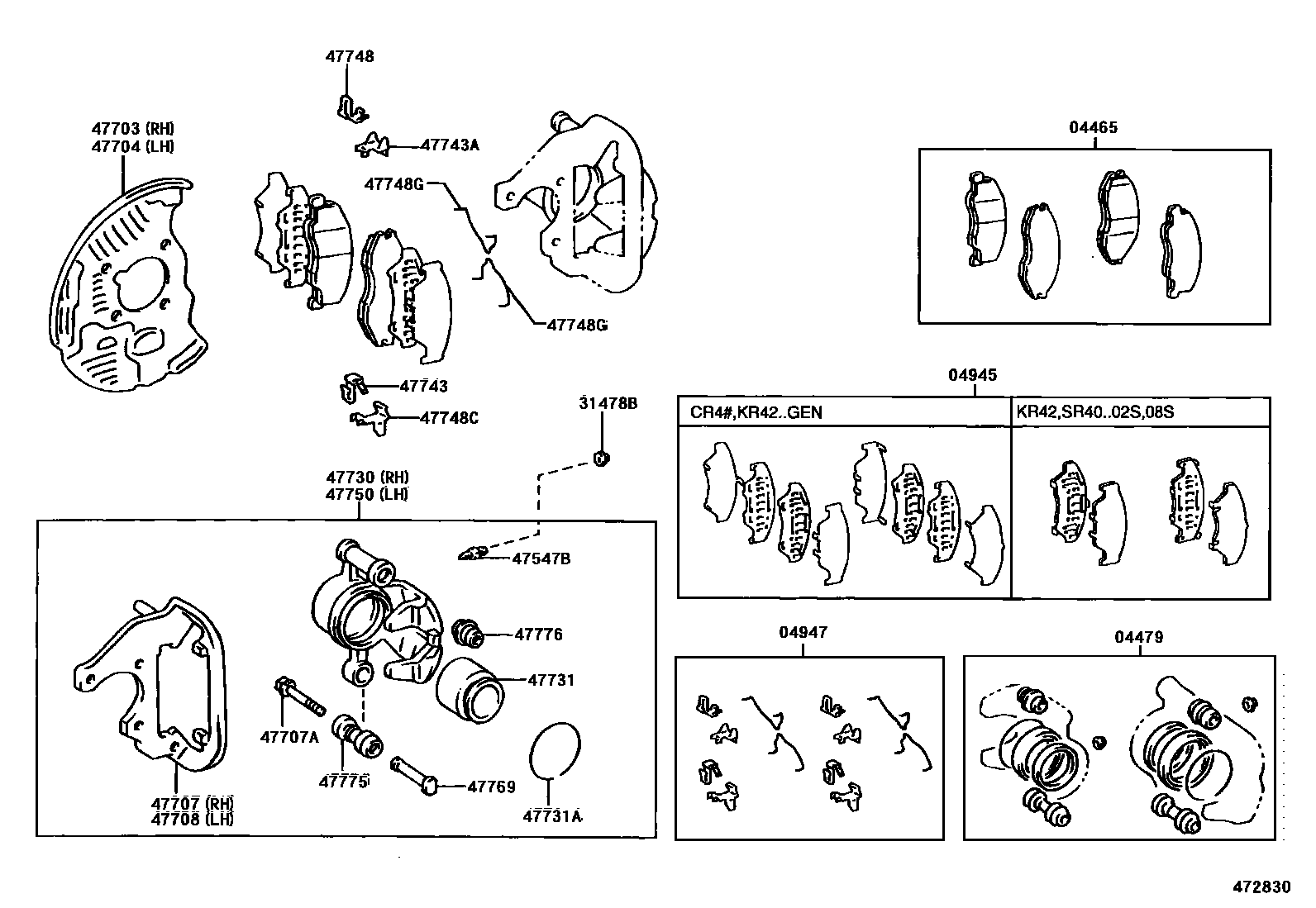

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-28340iKR42,SR40..02S,08S199611-199808

main04465-28370iCR41,KR4#..GEN199611-199808

main04465-28380iKR42,SR40..02S,08S199808-200010

sub04465-28340

main04465-28381iKR42,SR40..02S,08S200010-200310

MARK AK PA533

main04465-28420iCR4#,KR42..GEN199808-200412

MARK AISIN T536

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-28050iCR41,KR4#,SR40199611-200412

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-28130iCR4#,KR42..GEN199611-200412

main04945-28160iKR42,SR40..02S,08S200104-200310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-14020iCR41,KR4#..GEN199611-200412

main04947-14031iKR42,SR40..02S,08S199611-200310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCR41199611-200412

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27040iCR41,KR4#,SR40199611-200412

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-28051iKR42,SR40..02S,08S199611-200310

main47703-28072iCR41,KR4#..GEN199611-200412

main47703-28100iSR40199710-200310

W(ABS)

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-28051iKR42,SR40..02S,08S199611-200310

main47704-28072iCR41,KR4#..GEN199611-200412

main47704-28100iSR40199710-200310

W(ABS)

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28140iCR42199611-200412

main47707-28150iKR42..ARL199611-200310

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-10385iCR41,KR4#,SR40199611-200412

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28140iCR42199611-200412

main47708-28150iKR42..ARL199611-200310

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28210iCR41,KR4#..GEN199611-200412

main47730-28220iKR42,SR40..02S,08S199611-200310

47731PISTON, FRONT DISC BRAKE

main47731-28040iCR41,KR4#,SR40199611-200412

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001iCR41,KR4#,SR40199611-200412

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCR41,KR4#,SR40199611-200412

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-28010iCR41,KR4#,SR40199611-200412

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCR41,KR4#,SR40199611-200412

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-28010iCR41,KR4#,SR40199611-200412

47748GSPRING, ANTI-RATTLE, NO.3(FOR FRONT DISC BRAKE)

main47748-20020iKR42,SR40..02S,08S199611-200310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28210iCR42199611-200412

main47750-28220iKR42,SR40..02S,08S199611-200310

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iKR42199611-200412

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020iCR41,KR4#,SR40199611-200412

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010iCR41,KR4#,SR40199611-200412

23 parts on this diagram · 1 diagram in section
