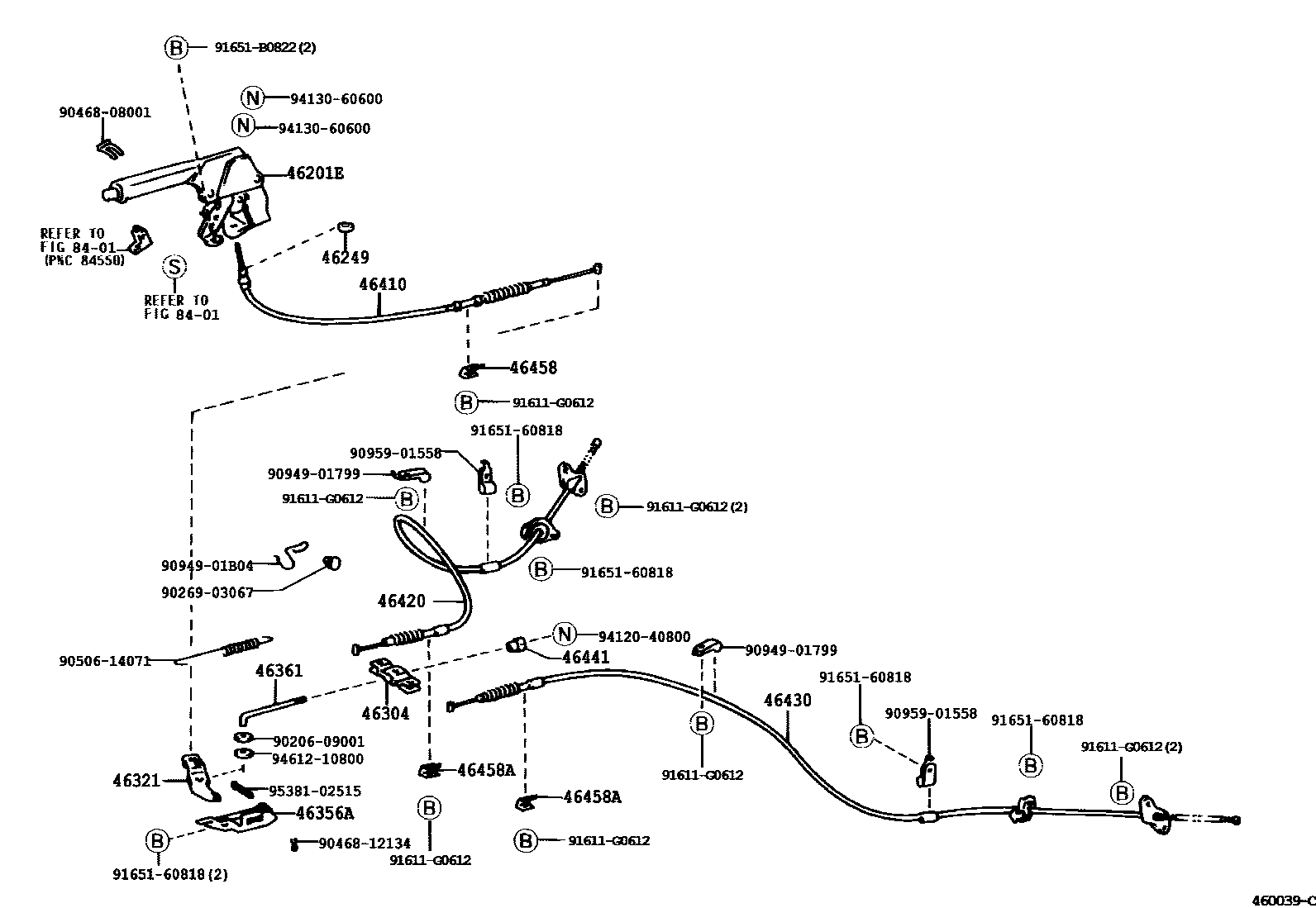

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26030-B1iCR41,KR4#..GEN199611-200412

MD.MOON MIST,TRIM1#

main46201-26040-B1iSR40199611-200310

MD.MOON MIST,TRIM1#

sub46201-26040

46249SHIELD, PARKING BRAKE HOLE

main46249-28010iCR41,KR4#,SR40199704-200412

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iCR42199611-200412

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-28060iCR41,KR4#,SR40199611-200412

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-28031iCR41,KR4#,SR40199611-200412

46361ROD, PARKING BRAKE PULL

main46361-28031iCR41,KR4#,SR40199611-200412

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28200iCR41199611-200412

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28400iCR42199611-200412

main46420-28430iKR42,SR40..ARL199611-200310

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28350iCR42199611-200412

main46430-28380iSR40..ARL199611-200310

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCR41199611-200412

46458RETAINER, CABLE

main46458-28010iCR41,KR4#,SR40199611-200412

46458ARETAINER, CABLE

main46458-28010iKR42199611-200412

8401

9020609001

main90206-09001

9026903067

main90269-03067

9046808001

main90468-08001

9046812134

main90468-12134

9050614071

main90506-14071

9094901799

main90949-01799

9094901B04

main90949-01B04

9095901558

main90959-01558

91611G0612

main91611-G0612

9165160818

main91651-60818

91651B0822

main91651-B0822

9412040800

main94120-40800

9413060600

main94130-60600

9461210800

main94612-10800

9538102515

main95381-02515

28 parts on this diagram · 1 diagram in section
