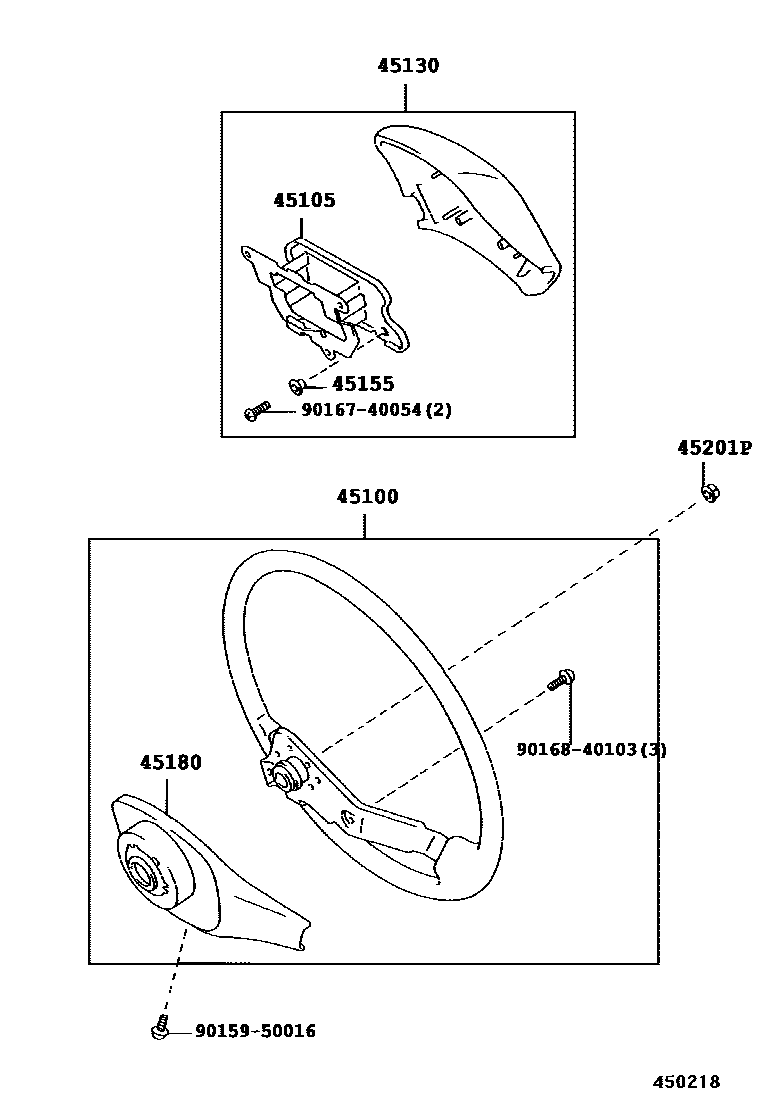

STEERING WHEEL

0001 12-SPOKE, PP(POLYPROPYLENE) 0002 12-SPOKE, URETHANE 0003 12-SPOKE,PP(POLYPROPYLENE) 0004 14-SPOKE 0005 14-SPOKE

45100WHEEL ASSY, STEERING

main45100-12720-B3iCR41199812-200112

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

main45100-1A020-B1iKR42..ARL200208-200310

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

main45100-26220-B1iCR41,KR4#;SR40..GEN199611-199812

2-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

main45100-26230-B2iCR41,KR4#..GEN199611-199812

2SPOKE,POLYPROPYLENE,MD.MOON MIST,TRIM1#

main45100-28160-B0iKR42..ARL199812-200208

4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#

main45100-32310-B1iSR40..GEN199611-199812

4-SPOKE,URETHANE,W(*80),MD.MOON MIST,TRIM1#

sub45100-12860

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12200iKR42..GEN199812-200310

main45105-26100iSR40..GEN199812-200111

W(URETHANE STEERING WHEEL)

45130BUTTON ASSY, HORN

main45130-12730-B3iCR41199812-200112

MD.MOON MIST,TRIM1#

main45130-26240-B2iKR42..ARL199812-200008

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

main45130-26260-B2iCR41,KR4#..GEN199611-199812

MD.MOON MIST,TRIM1#

main45130-28350-B0iSR40..GEN199611-199801

MD.MOON MIST,TRIM1#

main45130-28360-B0iSR40..ARL199710-199801

MD.MOON MIST,TRIM1#

main45130-28390-B0iKR42..ARL199812-200208

W(*80),MD.MOON MIST,TRIM1#

main45130-28450-B0iKR42..ARL200208-200310

MD.MOON MIST,TRIM1#

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-12050×3iCR41199812-200112

W(URETHANE STEERING WHEEL)

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12160-B3iCR4#,KR42..GEN199812-200412

MD.MOON MIST,TRIM1#

main45180-26030-B1iKR42..ARL199812-200008

W(URETHANE STEERING WHEEL),MD.MOON MIST,TRIM1#

main45180-26040-B2iCR41,KR4#..GEN199611-199812

MD.MOON MIST,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iKR42199812-200310

9015950016

main90159-50016

9016740054

main90167-40054

9016840103

main90168-40103

9 parts on this diagram · 5 diagrams in section
